Sandvik Coromant
5745709

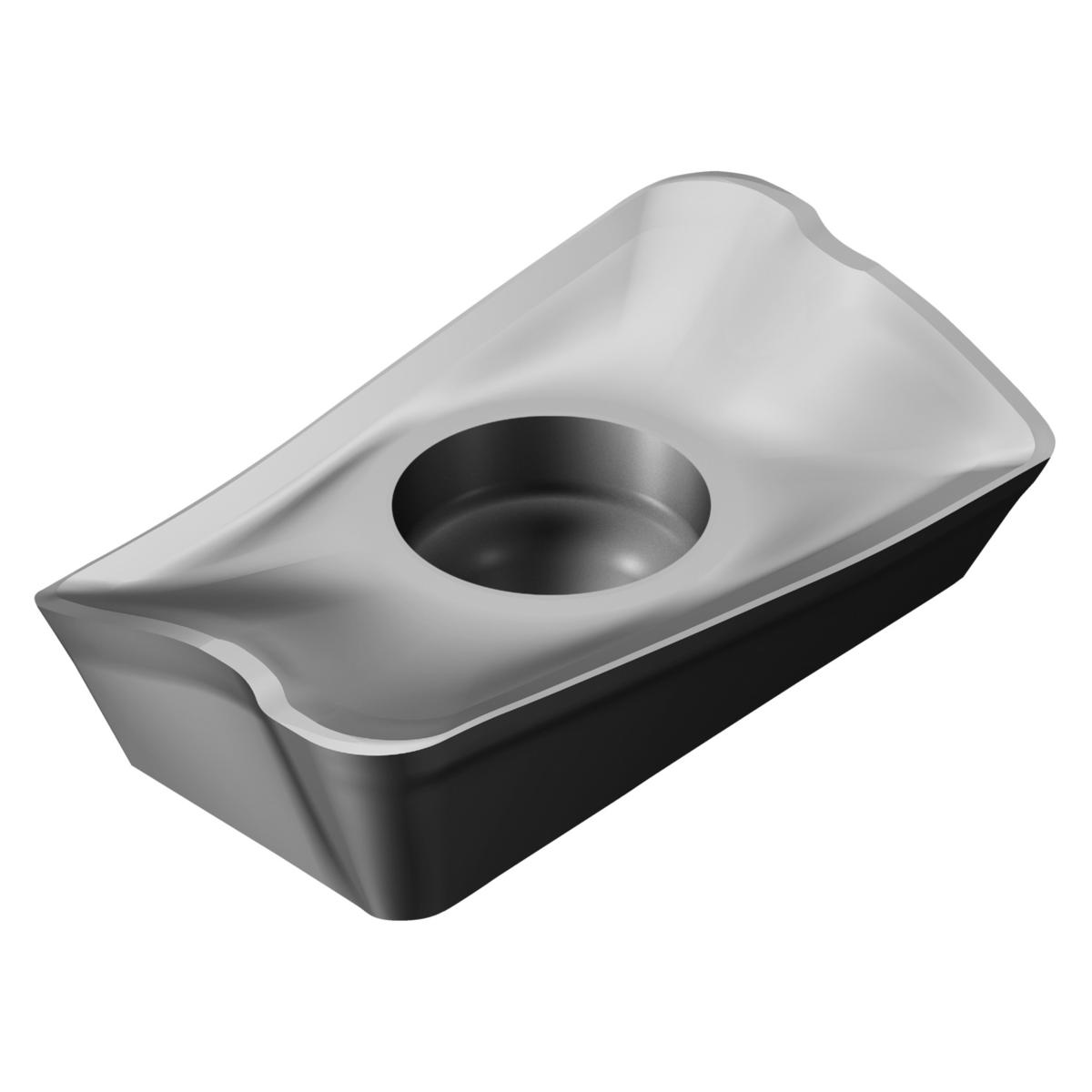

Sandvik Coromant 5745709
Specifications
| Material | Cermet |
|---|---|
| Coating/Finish | Uncoated |
| Thickness (Metric) | 3.59 |
| Thickness (Inch) | 0.14 |
| Short Description | CoroMill® 390 insert for milling |
| Shape | Rectangle |
| Style | R390 |
| Unit Of Measure | Metric |
| Width (Decimal) | 0.27 |
| Country of Origin | Japan |
| Series | CoroMill 390 |
| Size | 11T3 |
| Grade | 530 |
| Thickness | 3.59 mm |
| Chip Breaker Type | PL |
| Length (Decimal) | 0.39 |
| ANSI Code | R390-11 T3 08M-PL 530 |
| ISO Code | R390-11 T3 08M-PL 530 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.03 |
| Coner Radius (Metric) | 0.8 |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | Uncoat |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.05 |
| Wiper Edge Length (Metric) | 1.2 |
| Major Cutting Edge Angle | 90 degrees |
| Substrate Type | Cermet |
| Number of Cutting Edges | 2 |
| Application | Milling, General |
| ISO Material Classification | PMNH |
| Base Item Number | 1003 |
| Insert Size | 11T3 |
| Length | 10 mm |
| Max. Depth Of Cut (Decimal) | 0.39 |
| Max. Depth Of Cut (Metric) | 10 |
| Maximum Depth Of Cut (Inch) | 0.39 |
| Maximum Depth Of Cut (Metric) | 10 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.003 LB |
| Width | 6.8 mm |
| Height Packed Product Metric | 11 mm |
| Insert Style | R390 |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | R390-11T308M-PL530 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R390-11 T3 08M-PL 530 |
| Length Packed Product Imperial | 3.74 inch |
