Sandvik Coromant
5745816
Sandvik Coromant 5745816
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCrN+Al2O3+TiN |
| Thickness (Metric) | 6.33 |
| Thickness (Inch) | 0.25 |

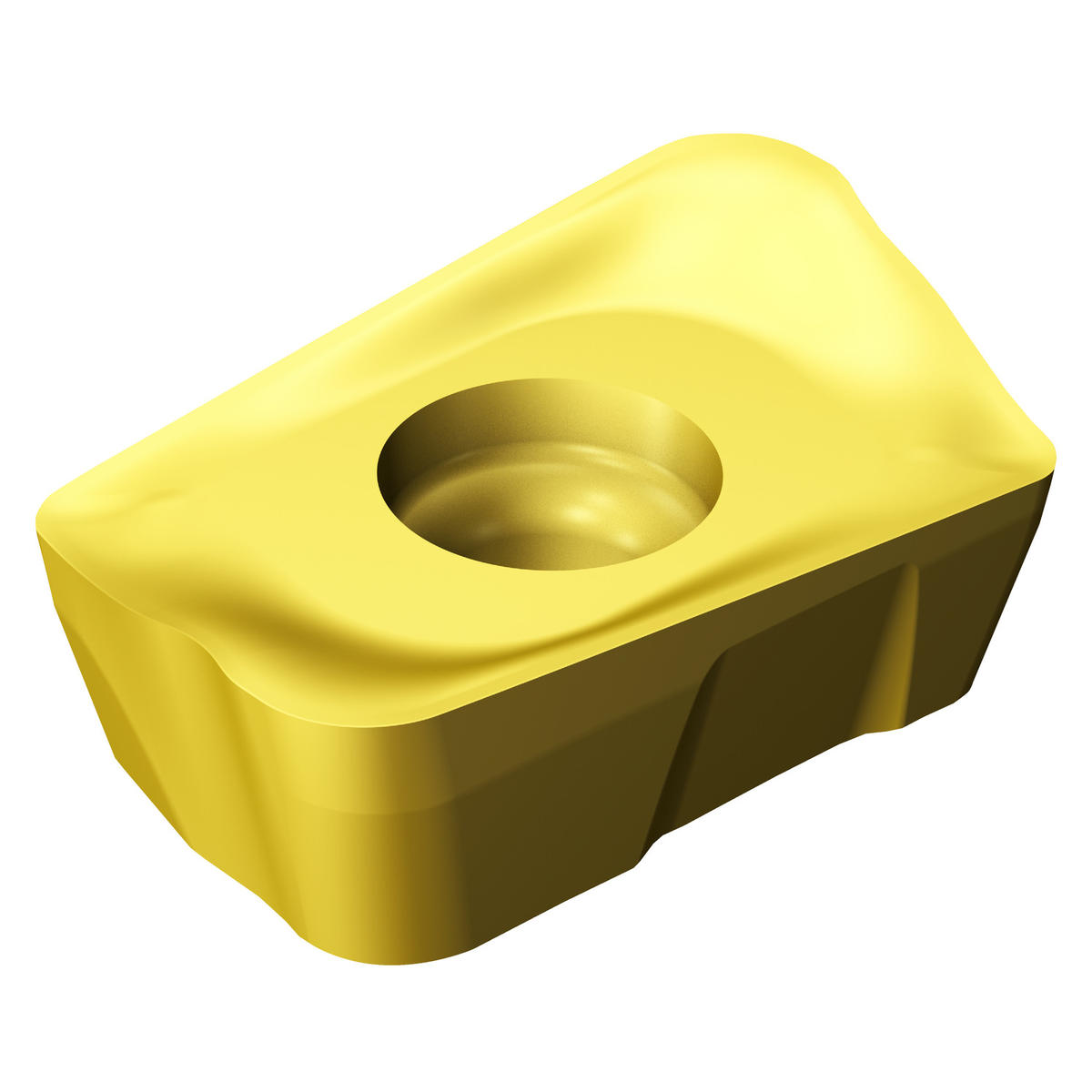

| Short Description | CoroMill® 390 insert for milling |
| Shape | Rectangle |
| Style | R390 |
| Unit Of Measure | Metric |
| Width (Decimal) | 0.43 |
| Country of Origin | Sweden |
| Series | CoroMill 390 |
| Size | 1806 |
| Grade | 2040 |
| Thickness | 6.33 mm |
| Chip Breaker Type | ML |
| Length (Decimal) | 0.61 |
| ANSI Code | R390-18 06 31H-ML 2040 |
| ISO Code | R390-18 06 31H-ML 2040 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.12 |
| Coner Radius (Metric) | 3.1 |
| Fixing Hole Diameter (Decimal) | 0.16 |
| Fixing Hole Diameter (Metric) | 4.15 |
| Coating Process Type | CVD |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.04 |
| Wiper Edge Length (Metric) | 1 |
| Major Cutting Edge Angle | 90 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Application | Milling, General |
| ISO Material Classification | PMS |
| Base Item Number | 1003 |
| Insert Size | 1806 |
| Length | 15.4 mm |
| Max. Depth Of Cut (Decimal) | 0.63 |
| Max. Depth Of Cut (Metric) | 16 |
| Maximum Depth Of Cut (Inch) | 0.63 |
| Maximum Depth Of Cut (Metric) | 16 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.024 LB |
| Width | 11 mm |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | R390 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | R390-180631H-ML2040 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R390-18 06 31H-ML 2040 |
| Length Packed Product Imperial | 5.079 inch |
