Sandvik Coromant
5747144
Sandvik Coromant 5747144
Specifications
| Shank Diameter (Metric) | 80 |
|---|---|
| Series | CoroMill 790 |
| Direction Of Hand | Right |
| Overall Length (Inch) | 4.72 |
| Material | Steel |
| Shank Diameter (Inch) | 3.15 |
| Cutting Diameter (Metric) | 80 |
| Cutting Diameter (Inch) | 3.15 |
| Overall Length (Metric) | 120 |

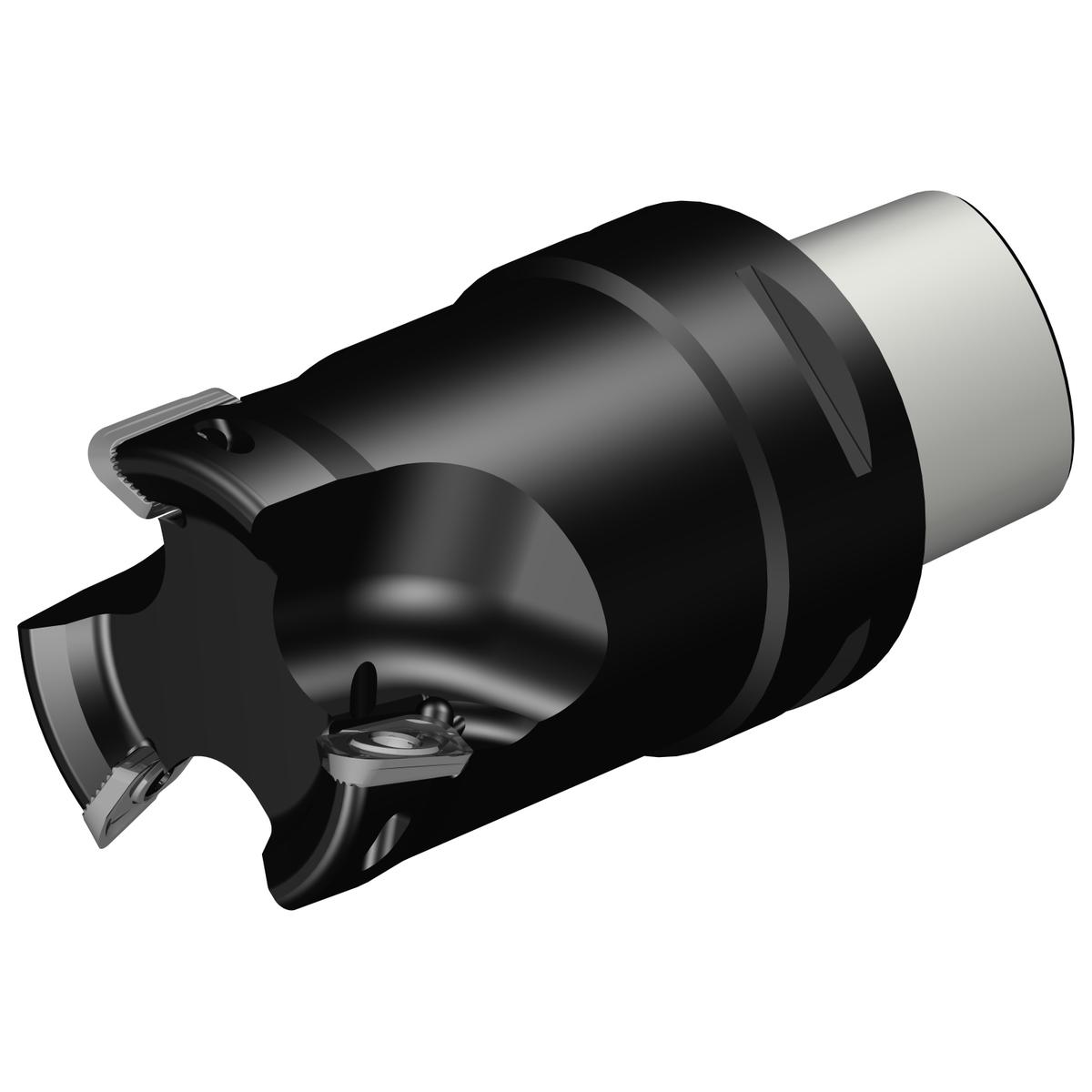

| Short Description | CoroMill® 790 square shoulder milling cutter |
| Unit Of Measure | Metric |
| Cutting Diameter | 80 mm |
| Shank Diameter | 80 mm |
| ANSI Code | R790-080C8S1-22M |
| Coolant Through | Yes |
| Usable Length (Decimal) | 3.47 |
| Usable Length (Metric) | 88 |
| Connection Size | C8 |
| Functional Diameter (Decimal) | 2.17 |
| Functional Diameter (Metric) | 55 |
| Center Cutting Capability | No |
| Tool Cutting Edge Angle | 90 degrees |
| Clamping Type | Screw/Clamp |
| Torque | 5 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Standard | ISO26623-1 |
| Cutting Pitch Differential | No |
| Damping Property | No |
| Country of Origin | United States |
| Base Item Number | 1013 |
| Max. Depth Of Cut | 6.5 mm |
| Max. Depth Of Cut (Decimal) | 0.26 |
| Max. Depth Of Cut (Metric) | 6.5 |
| Max. Plunge Depth (Decimal) | 0.12 |
| Max. Plunge Depth (Metric) | 3 |
| Max. Rotational Speed | 14000 1/min |
| Maximum Depth Of Cut (Inch) | 0.26 |
| Maximum Depth Of Cut (Metric) | 6.5 |
| Maximum Ramping Angle | 7 degrees |
| Number Of Inserts | 3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 8.812 LB |
