Sandvik Coromant
5747280

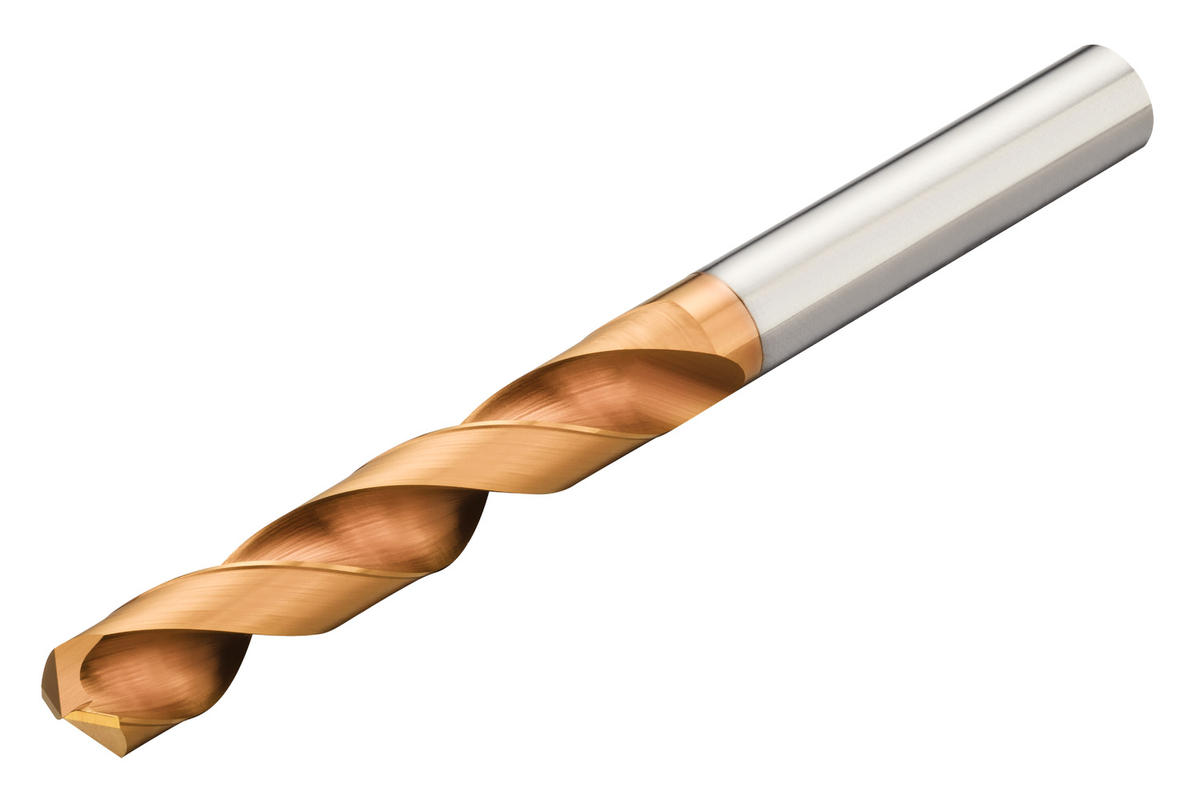

Sandvik Coromant 5747280
Specifications
| Coolant Fed | No |
|---|---|
| Coating/Finish | TiAlN |
| Overall Length (Metric) | 74 |
| Diameter (Inch) | 0.18 |
| Material | Solid Carbide |
| Diameter (Metric) | 4.6 |
| Type | High Performance |
| Overall Length (Inch) | 2.91 |
| Short Description | CoroDrill® Delta-C solid carbide drill |
| Unit Of Measure | Metric |
| Point Angle | 140 degrees |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Connection Diameter Tolerance | H6 |
| Usable Length (Decimal) | 0.94 |
| Usable Length (Metric) | 23.8 |
| Diameter | 4.6 mm |
| Flute Length | 36 mm |
| Overall Length | 74 mm |
| Shank Type | Cylindrical |
| Standard | DIN 6537 L |
| Series | CoroDrill Delta-C |
| Country of Origin | China |
| ANSI Code | R840-0460-50-A0A 1220 |
| Coating Process Type | PVD |
| Depth x Diameter Ratio | 5 x D |
| Grade | 1220 |
| Point Length (Decimal) | 0.03 |
| Point Length (Metric) | 0.8 |
| Achievable Hole Tolerance | H9 |
| Functional Length (Decimal) | 2.88 |
| Functional Length (Metric) | 73.2 |
| Chip Flute Length (Decimal) | 1.42 |
| Chip Flute Length (Metric) | 36 |
| ISO Material Classification | PMKNS |
| Usable Length Diameter Ratio | 5.174 |
| Coolant Entry Style Code | 0: Without Coolant |
| Base Item Number | 1099 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 15915 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.073 LB |
| Height Packed Product Metric | 25 mm |
| Height Packed Product Imperial | 0.984 inch |
| ISO Code (packed) | R840-0460-50-A0A1220 |
| Length Packed Product Metric | 113 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R840-0460-50-A0A 1220 |
| Length Packed Product Imperial | 4.449 inch |
| Substrate Type | Carbide |
