Sandvik Coromant
5747435
Sandvik Coromant 5747435
Specifications
| Coolant Fed | Yes |
|---|---|
| Coating/Finish | TiAlN |
| Overall Length (Metric) | 105 |
| Diameter (Inch) | 0.28 |
| Material | Solid Carbide |
| Diameter (Metric) | 7 |
| Type | High Performance |
| Overall Length (Inch) | 4.13 |

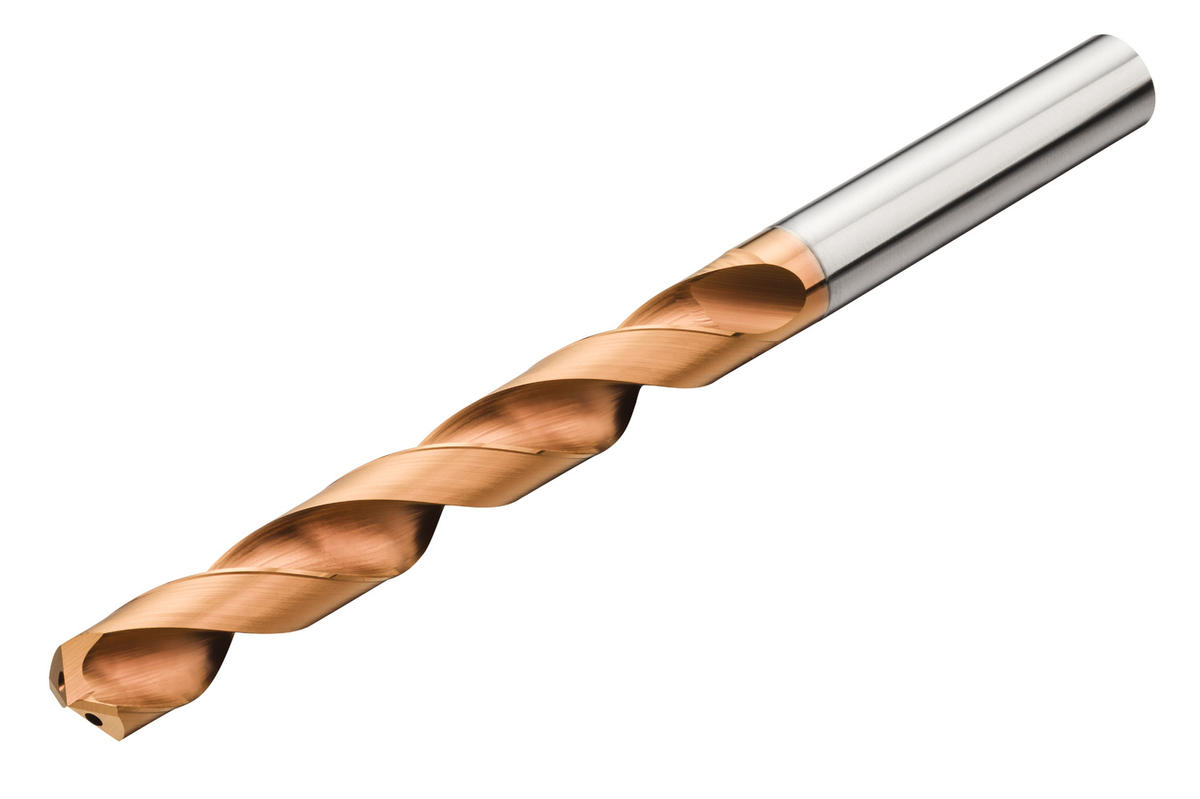

| Short Description | CoroDrill® Delta-C solid carbide drill |
| Unit Of Measure | Metric |
| Point Angle | 140 degrees |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8 |
| Connection Diameter Tolerance | H6 |
| Usable Length (Decimal) | 1.97 |
| Usable Length (Metric) | 49.9 |
| Diameter | 7 mm |
| Flute Length | 59 mm |
| Overall Length | 105 mm |
| Shank Type | Cylindrical |
| Standard | COROMANT |
| Series | CoroDrill Delta-C |
| Country of Origin | China |
| ANSI Code | R840-0700-70-A1A 1220 |
| Coating Process Type | PVD |
| Depth x Diameter Ratio | 7 x D |
| Grade | 1220 |
| Point Length (Decimal) | 0.05 |
| Point Length (Metric) | 1.2 |
| Achievable Hole Tolerance | H9 |
| Functional Length (Decimal) | 4.09 |
| Functional Length (Metric) | 103.8 |
| Chip Flute Length (Decimal) | 2.32 |
| Chip Flute Length (Metric) | 59 |
| Coolant Pressure (Bar) | 20 |
| ISO Material Classification | PMKNS |
| Usable Length Diameter Ratio | 7.129 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Base Item Number | 1099 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 10459 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.134 LB |
| Height Packed Product Metric | 15 mm |
| Height Packed Product Imperial | 0.591 inch |
| ISO Code (packed) | R840-0700-70-A1A1220 |
| Length Packed Product Metric | 115 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R840-0700-70-A1A 1220 |
| Length Packed Product Imperial | 4.528 inch |
| Substrate Type | Carbide |
