Sandvik Coromant
5747634

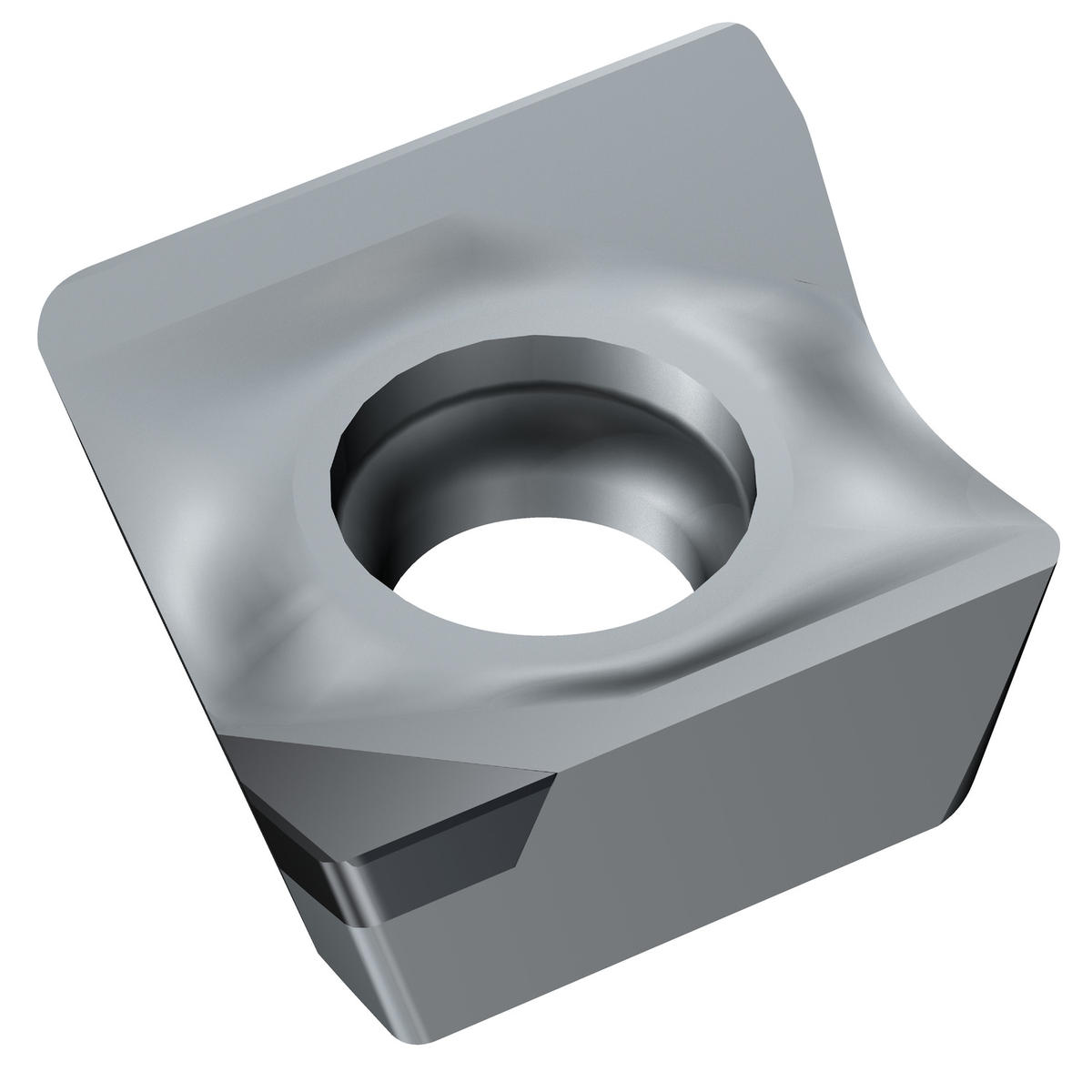

Sandvik Coromant 5747634
Specifications
| Material | Polycrystalline Diamond |
|---|---|
| Coating/Finish | Uncoated |
| Thickness (Metric) | 5 |
| Thickness (Inch) | 0.2 |
| Short Description | CoroMill® Century insert for milling |
| Style | R590 |
| Unit Of Measure | Metric |
| Width (Decimal) | 0.45 |
| Country of Origin | Poland |
| Series | CoroMill Century |
| Size | 1105 |
| Grade | CD10 |
| Thickness | 5 mm |
| Chip Breaker Type | NL |
| Length (Decimal) | 0.24 |
| ANSI Code | R590-1105H-PS5-NL CD10 |
| ISO Code | R590-1105H-PS5-NL CD10 |
| Hand of Insert | Right |
| Fixing Hole Diameter (Decimal) | 0.18 |
| Fixing Hole Diameter (Metric) | 4.6 |
| Coating Process Type | Uncoat |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.09 |
| Wiper Edge Length (Metric) | 2.2 |
| Face Land Width (Decimal) | 0.012 |
| Face Land Width (Metric) | 0.3 |
| Major Cutting Edge Angle | 90 degrees |
| Rake Angle | 20 degrees |
| Corner Chamfer | 45 degrees |
| Face Land Angle | 5 degrees |
| Substrate Type | PCD |
| Number of Cutting Edges | 1 |
| Wiper Edge Radius (Decimal) | 7.87 |
| Wiper Edge Radius (Metric) | 200 |
| Corner Chamfer Width (Decimal) | 0.004 |
| Corner Chamfer Width (Metric) | 0.1 |
| Application | Milling, General |
| ISO Material Classification | N |
| Base Item Number | 1011 |
| Insert Size | 1105 |
| Length | 6 mm |
| Max. Depth Of Cut (Decimal) | 0.2 |
| Max. Depth Of Cut (Metric) | 5 |
| Maximum Depth Of Cut (Inch) | 0.2 |
| Maximum Depth Of Cut (Metric) | 5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.014 LB |
| Width | 11.5 mm |
| Height Packed Product Metric | 26 mm |
| Insert Style | R590 |
| Height Packed Product Imperial | 1.024 inch |
| ISO Code (packed) | R590-1105H-PS5-NLCD10 |
| Length Packed Product Metric | 30 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R590-1105H-PS5-NL CD10 |
| Length Packed Product Imperial | 1.181 inch |
