Sandvik Coromant
5747652

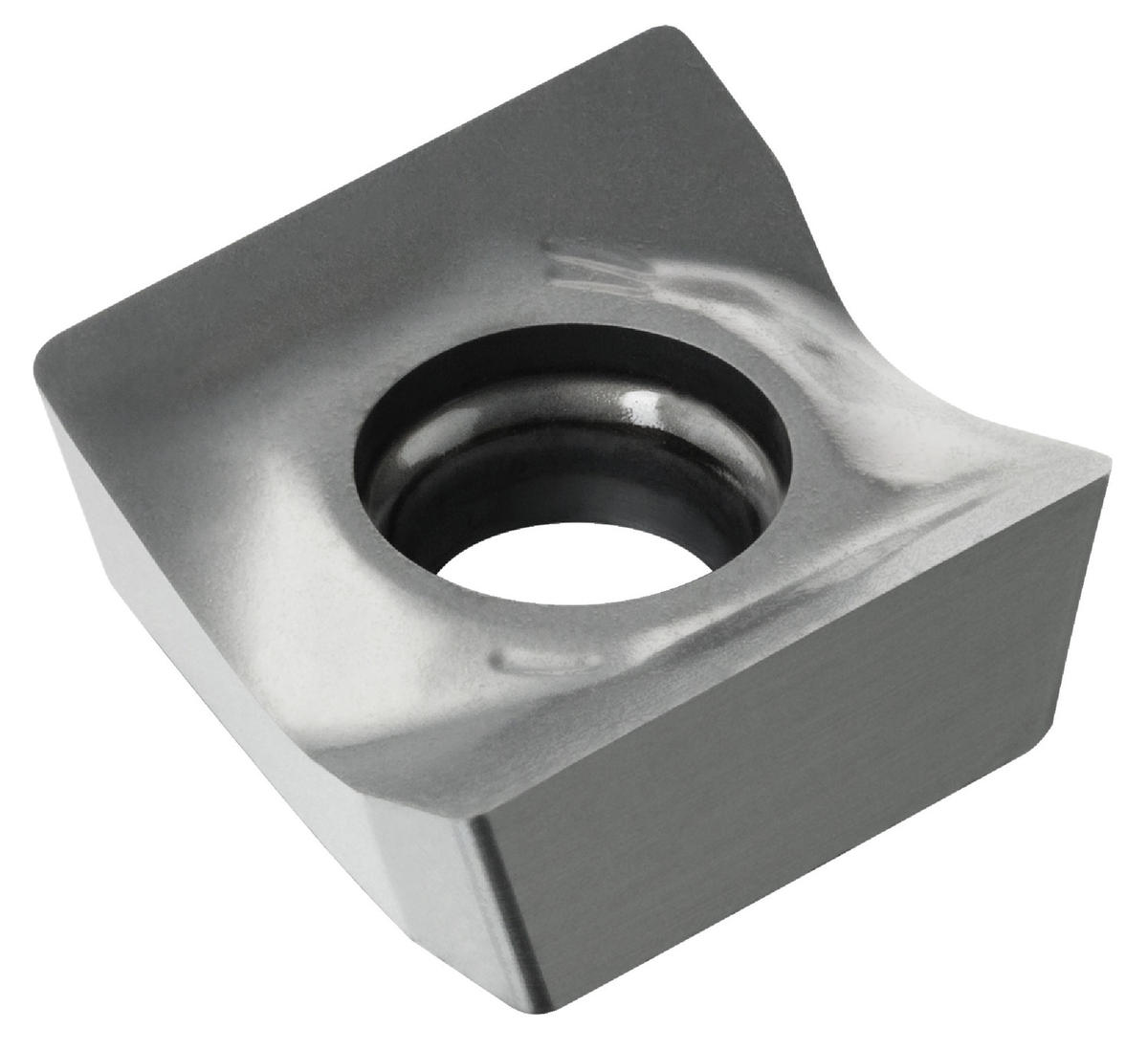

Sandvik Coromant 5747652
Specifications
| Material | WC |
|---|---|
| Coating/Finish | Uncoated |
| Thickness (Metric) | 5 |
| Thickness (Inch) | 0.2 |
| Short Description | CoroMill® Century insert for milling |
| Style | R590 |
| Unit Of Measure | Metric |
| Width (Decimal) | 0.45 |
| Country of Origin | Sweden |
| Series | CoroMill Century |
| Size | 1105 |
| Grade | H10 |
| Thickness | 5 mm |
| Chip Breaker Type | NL |
| Length (Decimal) | 0.43 |
| ANSI Code | R590-110504H-NL H10 |
| ISO Code | R590-110504H-NL H10 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.02 |
| Coner Radius (Metric) | 0.4 |
| Fixing Hole Diameter (Decimal) | 0.18 |
| Fixing Hole Diameter (Metric) | 4.6 |
| Coating Process Type | Uncoat |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.08 |
| Wiper Edge Length (Metric) | 2 |
| Major Cutting Edge Angle | 90 degrees |
| Rake Angle | 25 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Radius (Decimal) | 7.87 |
| Wiper Edge Radius (Metric) | 200 |
| Application | Milling, General |
| ISO Material Classification | KN |
| Base Item Number | 1011 |
| Insert Size | 1105 |
| Length | 11 mm |
| Max. Depth Of Cut (Decimal) | 0.39 |
| Max. Depth Of Cut (Metric) | 10 |
| Maximum Depth Of Cut (Inch) | 0.39 |
| Maximum Depth Of Cut (Metric) | 10 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.014 LB |
| Width | 11.5 mm |
| Height Packed Product Metric | 11 mm |
| Insert Style | R590 |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | R590-110504H-NLH10 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R590-110504H-NL H10 |
| Length Packed Product Imperial | 3.74 inch |
