Sandvik Coromant
5749604
Sandvik Coromant 5749604
Specifications
| Overall Length (Metric) | 127 |
|---|---|
| Series | CoroTurn 107 |
| Tool Lead Angle | 27.5 degrees |
| Overall Length (Inch) | 5 |
| Insert Style | SDPCN |

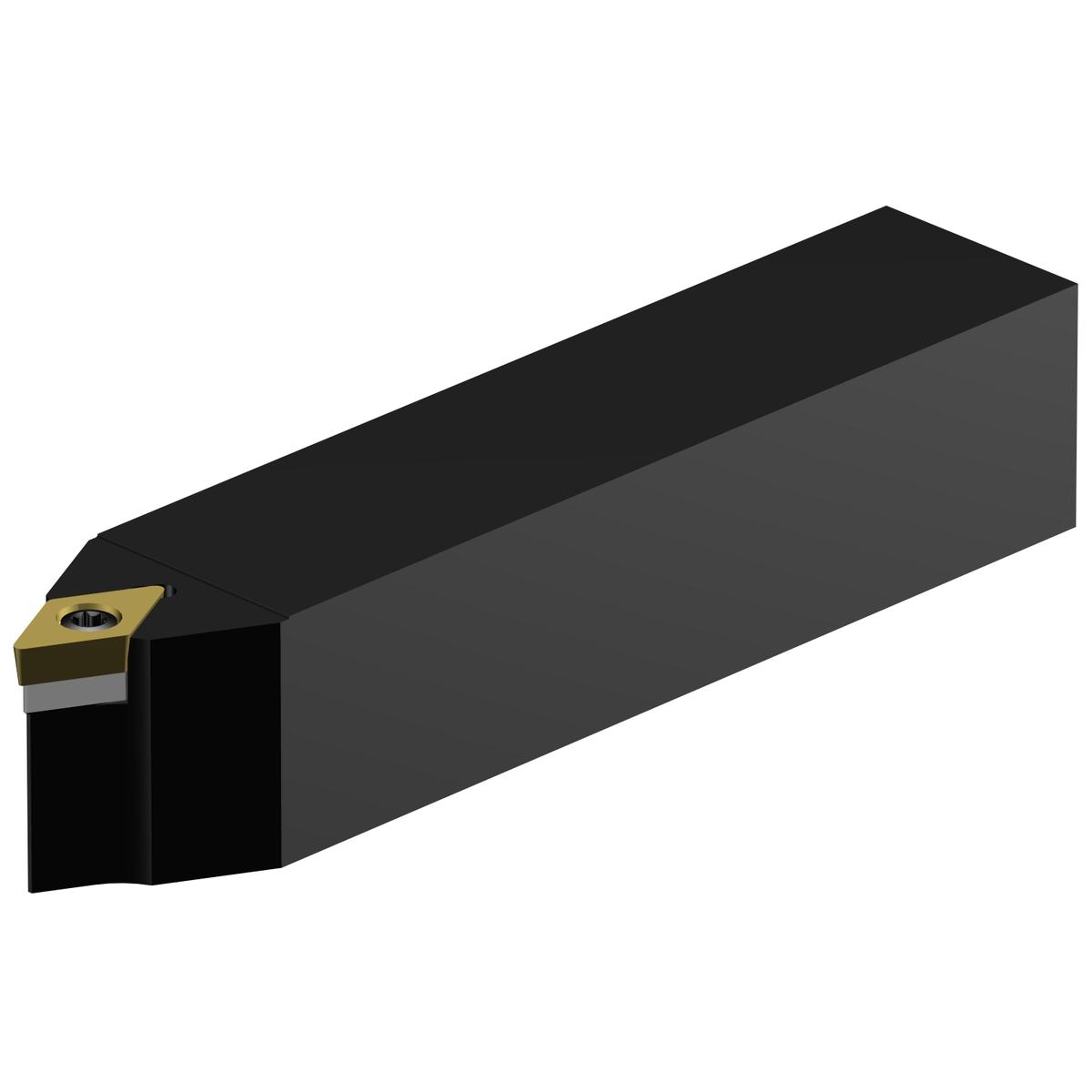

| Short Description | CoroTurn® 107 shank tool for turning |
| Direction Of Hand | Neutral |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1 Inch |
| Orthogonal Rake Angle | 0 degrees |
| Shank Width (Decimal) | 1.62 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Inclination Angle | 0 degrees |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 5 Inch |
| Insert Compatibility | DCMT 11T308 |
| ANSI Code | SDPCN 16 3C |
| Coolant Through | No |
| Overall Width (Decimal) | 0.53 |
| Overall Width (Metric) | 13.43 |
| Shank Height (Decimal) | 1 |
| Clamping Type Code | Screw/Clamp |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 62.5 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | India |
| Base Item Number | 1053 |
| Max. Overhang (Decimal) | 0.89 |
| Max. Overhang (Metric) | 22.6 |
| Maximum Ramping Angle | 57 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.261 LB |
