Sandvik Coromant
5751005

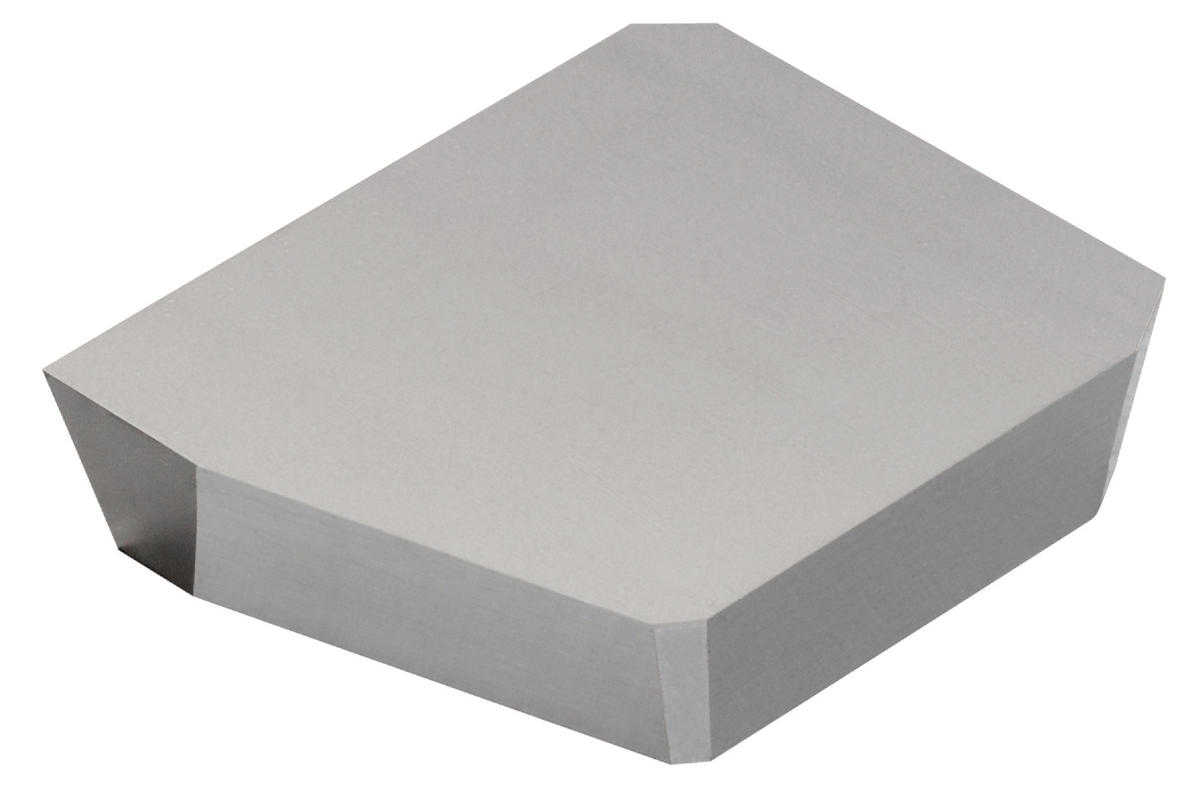

Sandvik Coromant 5751005
Specifications
| Material | Cermet |
|---|---|
| Coating/Finish | Uncoated |
| Thickness (Metric) | 4.76 |
| Thickness (Inch) | 0.19 |
| Short Description | Insert for milling |
| Shape | Square |
| Style | SME |
| Unit Of Measure | Metric |
| Country of Origin | Sweden |
| Series | ModulMill |
| Size | 53 |
| Grade | 530 |
| Inscribed Circle Diameter | 15.88 mm |
| Thickness | 4.76 mm |
| Length (Decimal) | 0.41 |
| Inscribed Circle Diameter (Decimal) | 0.63 |
| Inscribed Circle Diameter (Metric) | 15.88 |
| ANSI Code | SME 53E12 R 530 |
| ISO Code | SPEX 15 04 ED R-1 530 |
| Hand of Insert | Right |
| Coating Process Type | Uncoat |
| Operation Type | Light |
| Mounting Style | Clamp |
| Wiper Edge Length (Decimal) | 0.39 |
| Wiper Edge Length (Metric) | 10 |
| Major Cutting Edge Angle | 75 degrees |
| Rake Angle | 0 degrees |
| Corner Chamfer | 23 degrees |
| Substrate Type | Cermet |
| Number of Cutting Edges | 1 |
| Wiper Edge Radius (Decimal) | 19.69 |
| Wiper Edge Radius (Metric) | 500 |
| Corner Chamfer Width (Decimal) | 0.008 |
| Corner Chamfer Width (Metric) | 0.2 |
| Base Item Number | 1019 |
| Insert Size | 53 |
| Length | 10.3 mm |
| Max. Depth Of Cut (Decimal) | 0.47 |
| Max. Depth Of Cut (Metric) | 12 |
| Maximum Depth Of Cut (Inch) | 0.47 |
| Maximum Depth Of Cut (Metric) | 12 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.018 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | SME |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | SPEX1504EDR-1530 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SPEX 15 04 ED R-1 530 |
| Length Packed Product Imperial | 5.079 inch |
