Sandvik Coromant
5751204

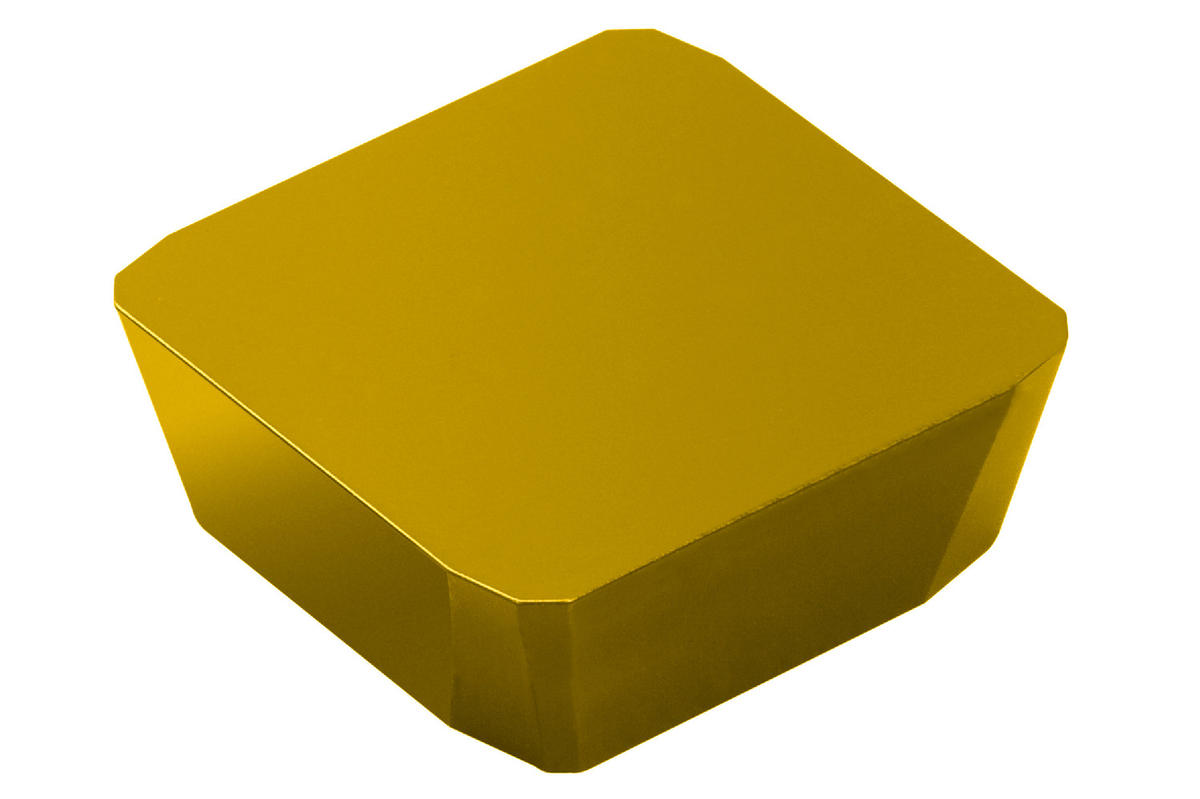

Sandvik Coromant 5751204
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCrN+Al2O3+TiN |
| Thickness (Metric) | 3.18 |
| Thickness (Inch) | 0.13 |
| Short Description | Insert for milling |
| Shape | Square |
| Style | SMK |
| Unit Of Measure | Metric |
| Country of Origin | Japan |
| Series | ModulMill |
| Size | 42 |
| Grade | 2040 |
| Inscribed Circle Diameter | 12.7 mm |
| Thickness | 3.18 mm |
| Length (Decimal) | 0.41 |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| ANSI Code | SMK 42E2 R 2040 |
| ISO Code | SPKN 12 03 ED R 2040 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.03 |
| Coner Radius (Metric) | 0.85 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Wiper Edge Length (Decimal) | 0.06 |
| Wiper Edge Length (Metric) | 1.6 |
| Major Cutting Edge Angle | 75 degrees |
| Rake Angle | 0 degrees |
| Corner Chamfer | 37 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Corner Chamfer Width (Decimal) | 0.031 |
| Corner Chamfer Width (Metric) | 0.8 |
| Application | Milling, General |
| ISO Material Classification | PMS |
| Base Item Number | 1019 |
| Insert Size | 42 |
| Length | 10.3 mm |
| Max. Depth Of Cut (Decimal) | 0.35 |
| Max. Depth Of Cut (Metric) | 9 |
| Maximum Depth Of Cut (Inch) | 0.35 |
| Maximum Depth Of Cut (Metric) | 9 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.015 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | SMK |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | SPKN1203EDR2040 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SPKN 12 03 ED R 2040 |
| Length Packed Product Imperial | 3.74 inch |
