Sandvik Coromant
5751326

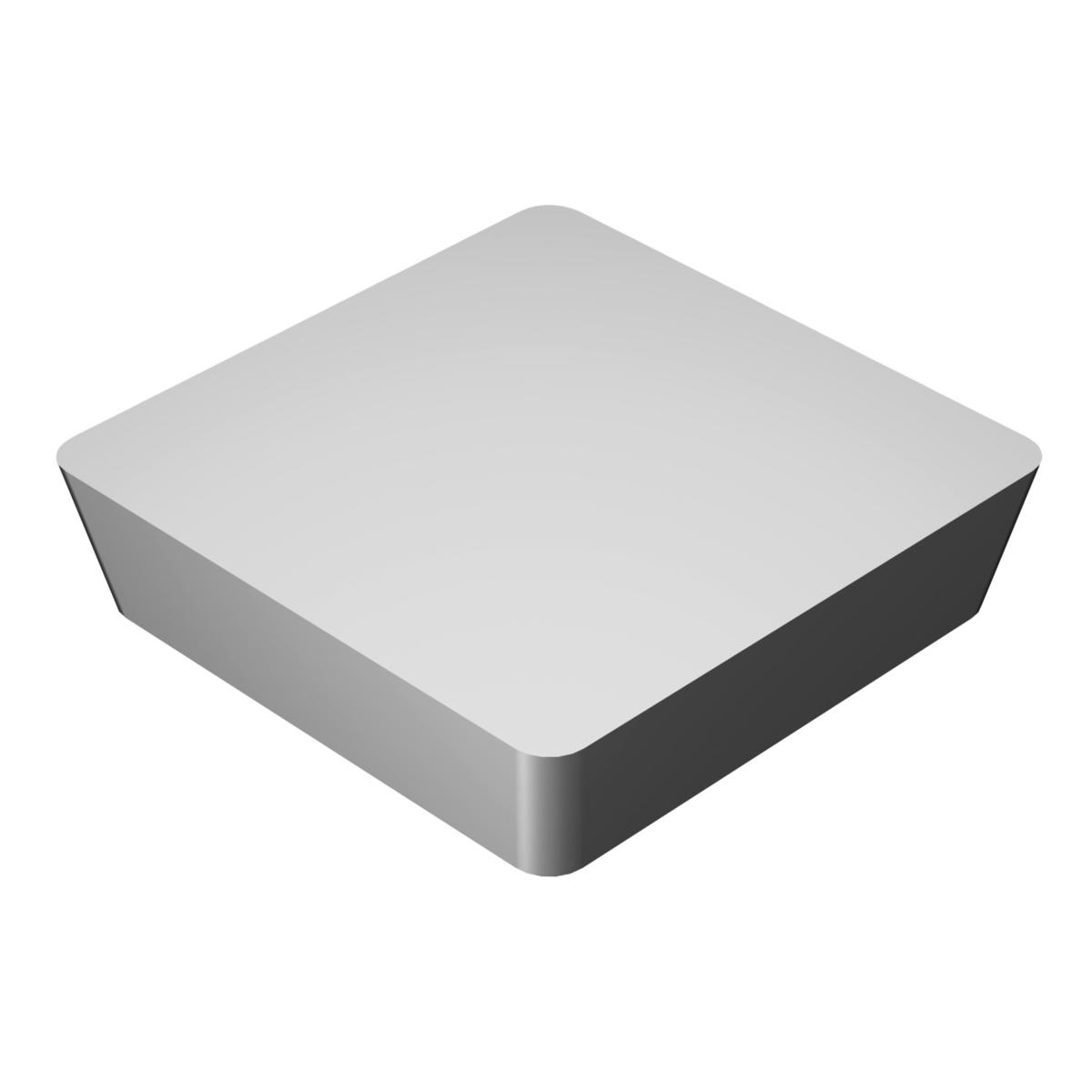

Sandvik Coromant 5751326
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 3.18 |
| Corner Radius (Metric) | 0.4 |
| Material | WC |
| Size | 421 |
| Corner Radius (Inch) | 0.02 |
| Style | SPU |
| Thickness (Inch) | 0.13 |
| Short Description | T-Max® insert for turning |
| Grade | H13A |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 12.7 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Clearance Angle Major | 11 degrees |
| Length (Decimal) | 0.48 |
| Length (Metric) | 12.3 |
| Shape | Square |
| Country of Origin | India |
| Series | T-Max |
| Chip Breaker Type | PUN |
| ANSI Code | SPU 421 H13A |
| ISO Code | SPUN 12 03 04 H13A |
| Hand of Insert | Neutral |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| ISO Material Classification | PMKNS |
| Base Item Number | 1026 |
| Length | 12.3 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.017 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | SPU |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | SPUN120304H13A |
| Insert Size | 421 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SPUN 12 03 04 H13A |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 10117682 |
