Sandvik Coromant
5751663
Sandvik Coromant 5751663
Specifications
| Overall Length (Metric) | 125 |
|---|---|
| Series | CoroTurn 107 |
| Tool Lead Angle | 17.5 degrees |
| Overall Length (Inch) | 4.92 |
| Insert Style | SVVBN-S |

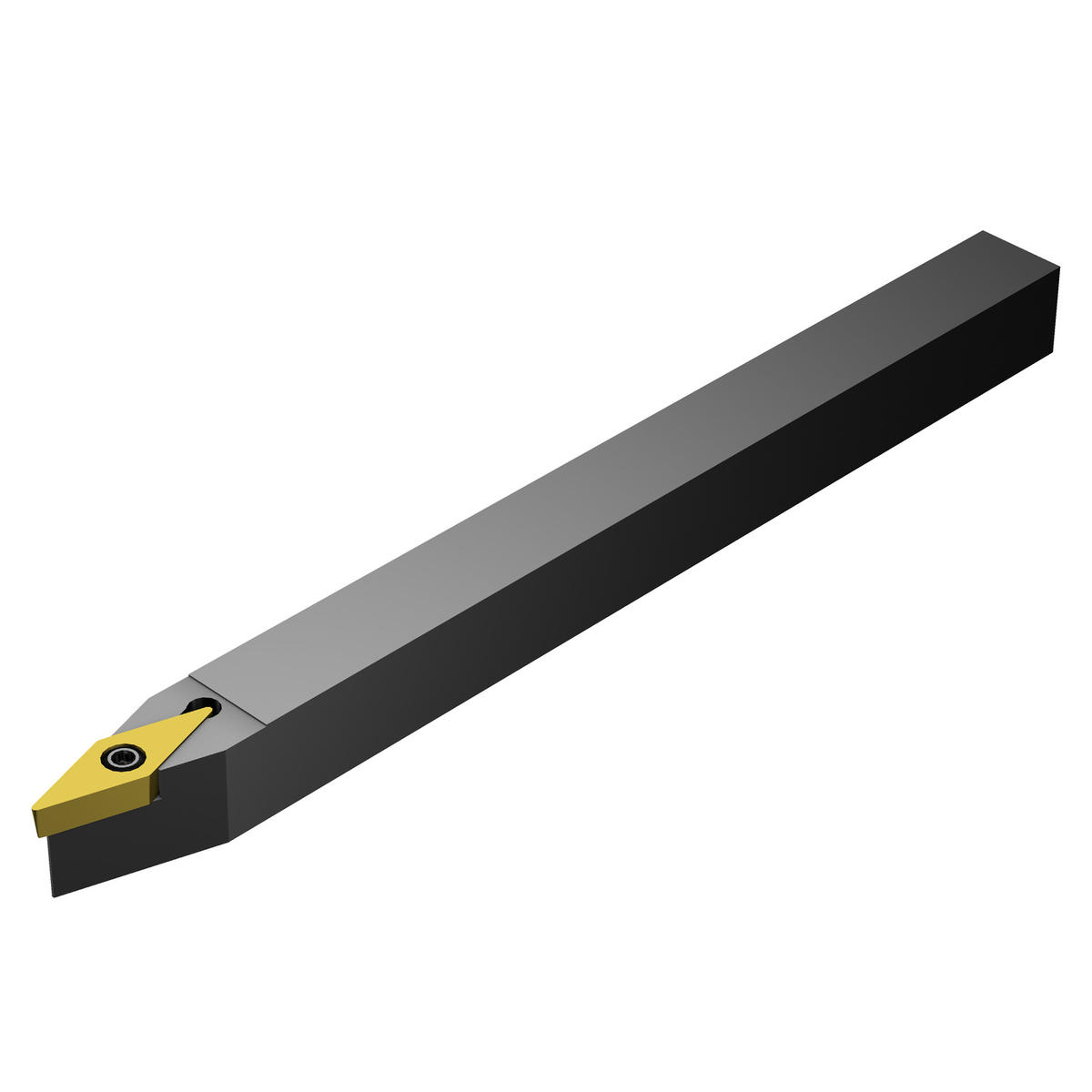

| Short Description | CoroTurn® 107 shank tool for turning |
| Direction Of Hand | Neutral |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 12 mm |
| Orthogonal Rake Angle | 0 degrees |
| Shank Width (Decimal) | 1.38 |
| Shank Width (Metric) | 12 |
| Shank Height (Metric) | 12 |
| Inclination Angle | 0 degrees |
| Overall Height (Metric) | 12 |
| Overall Height (Decimal) | 0.47 |
| Overall Length | 125 mm |
| Insert Compatibility | VBMT 110304/VCMT 110304 |
| ANSI Code | SVVBN 1212K 11-S-B1 |
| Coolant Through | No |
| Overall Width (Decimal) | 0.25 |
| Overall Width (Metric) | 6.3 |
| Shank Height (Decimal) | 0.47 |
| Clamping Type Code | Screw/Clamp |
| Torque | 0.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 72.5 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | India |
| Base Item Number | 1053 |
| Max. Overhang (Decimal) | 0.83 |
| Max. Overhang (Metric) | 21 |
| Maximum Ramping Angle | 70 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.309 LB |
