Sandvik Coromant
5752139

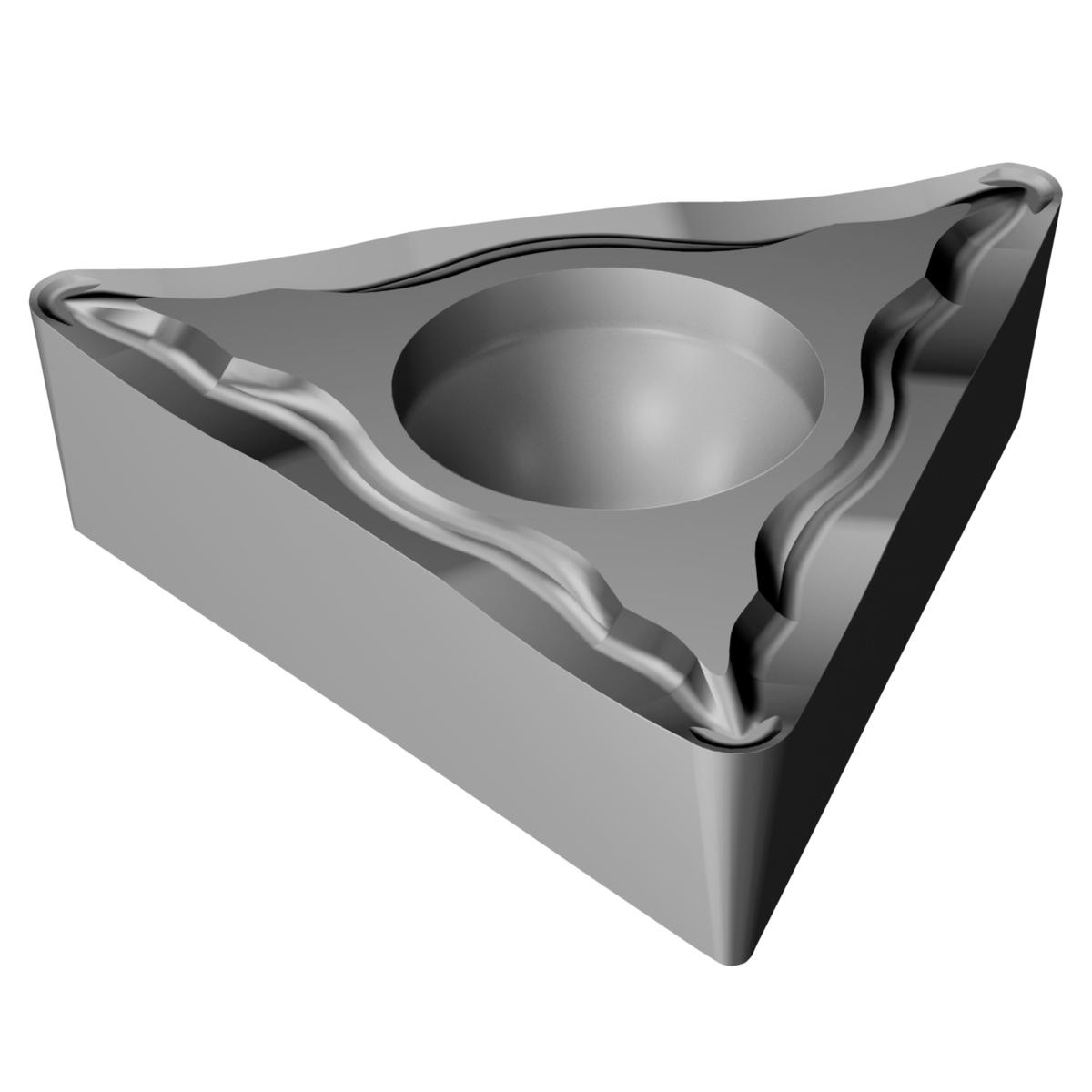

Sandvik Coromant 5752139
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 2.38 |
| Corner Radius (Metric) | 0.4 |
| Material | WC |
| Size | 21.51 |
| Corner Radius (Inch) | 0.02 |
| Style | TCMT |
| Thickness (Inch) | 0.09 |
| Short Description | CoroTurn® 107 insert for turning |
| Grade | H13A |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.41 |
| Length (Metric) | 10.34 |
| Shape | Triangle |
| Country of Origin | India |
| Series | CoroTurn 107 |
| Chip Breaker Type | UM |
| ANSI Code | TCMT 2(1.5)1-UM H13A |
| ISO Code | TCMT 11 02 04-UM H13A |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | Uncoat |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PMKNS |
| Base Item Number | 1053 |
| Length | 10.34 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.003 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | TCMT |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | TCMT110204-UMH13A |
| Insert Size | 21.51 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TCMT 11 02 04-UM H13A |
| Length Packed Product Imperial | 3.74 inch |
