Sandvik Coromant
5752495

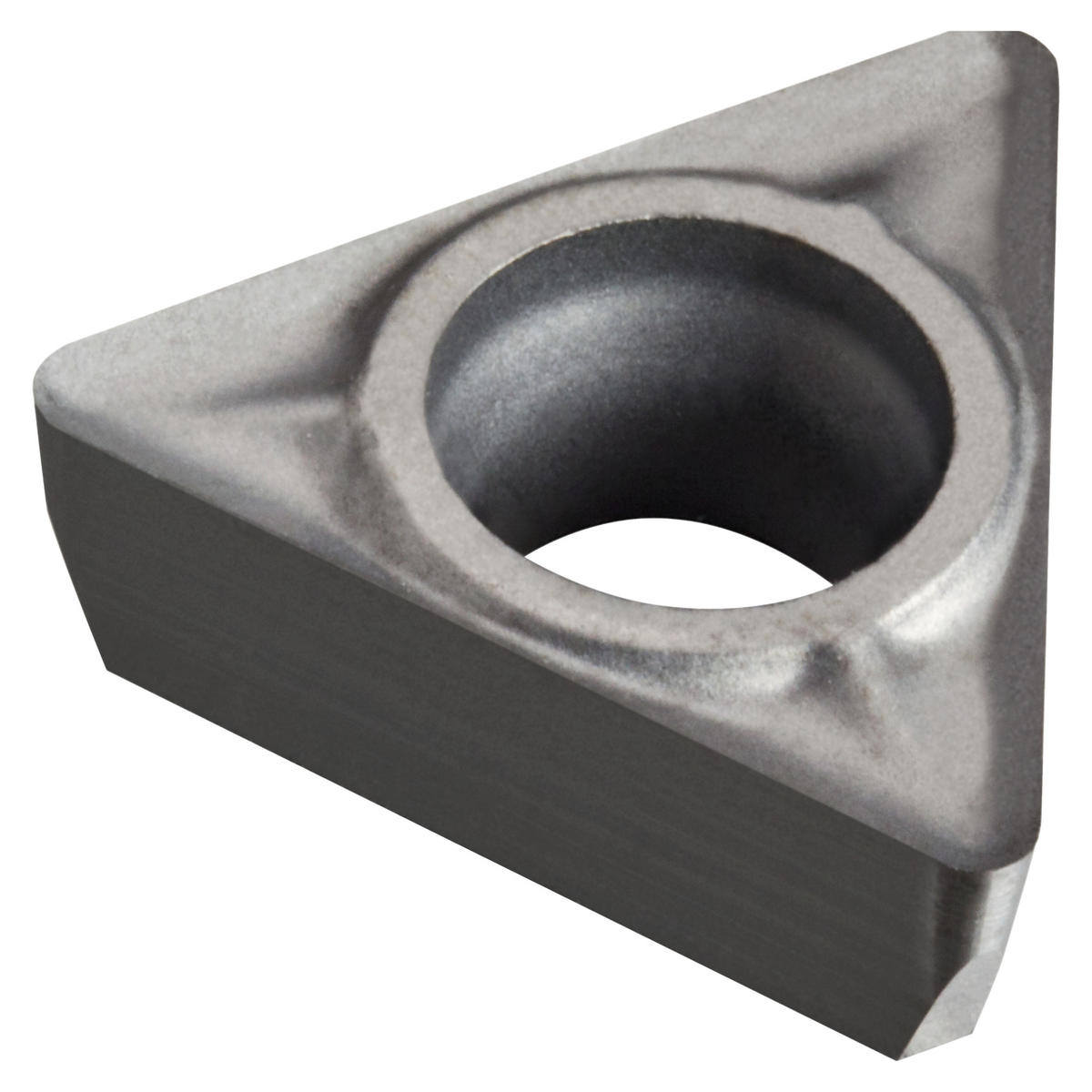

Sandvik Coromant 5752495
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 3.97 |
| Corner Radius (Metric) | 0.4 |
| Material | WC |
| Size | 32.51 |
| Corner Radius (Inch) | 0.02 |
| Style | TCGX |
| Thickness (Inch) | 0.16 |
| Short Description | CoroTurn® 107 insert for turning |
| Grade | H10 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 9.53 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.63 |
| Length (Metric) | 16.1 |
| Shape | Triangle |
| Country of Origin | Japan |
| Series | CoroTurn 107 |
| Chip Breaker Type | AL |
| ANSI Code | TCGX 3(2.5)1-AL H10 |
| ISO Code | TCGX 16 T3 04-AL H10 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.4 |
| Coating Process Type | Uncoat |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | NS |
| Base Item Number | 1053 |
| Length | 16.1 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.009 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | TCGX |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | TCGX16T304-ALH10 |
| Insert Size | 32.51 |
| Length Packed Product Metric | 130 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TCGX 16 T3 04-AL H10 |
| Length Packed Product Imperial | 5.118 inch |
