Sandvik Coromant
5752505

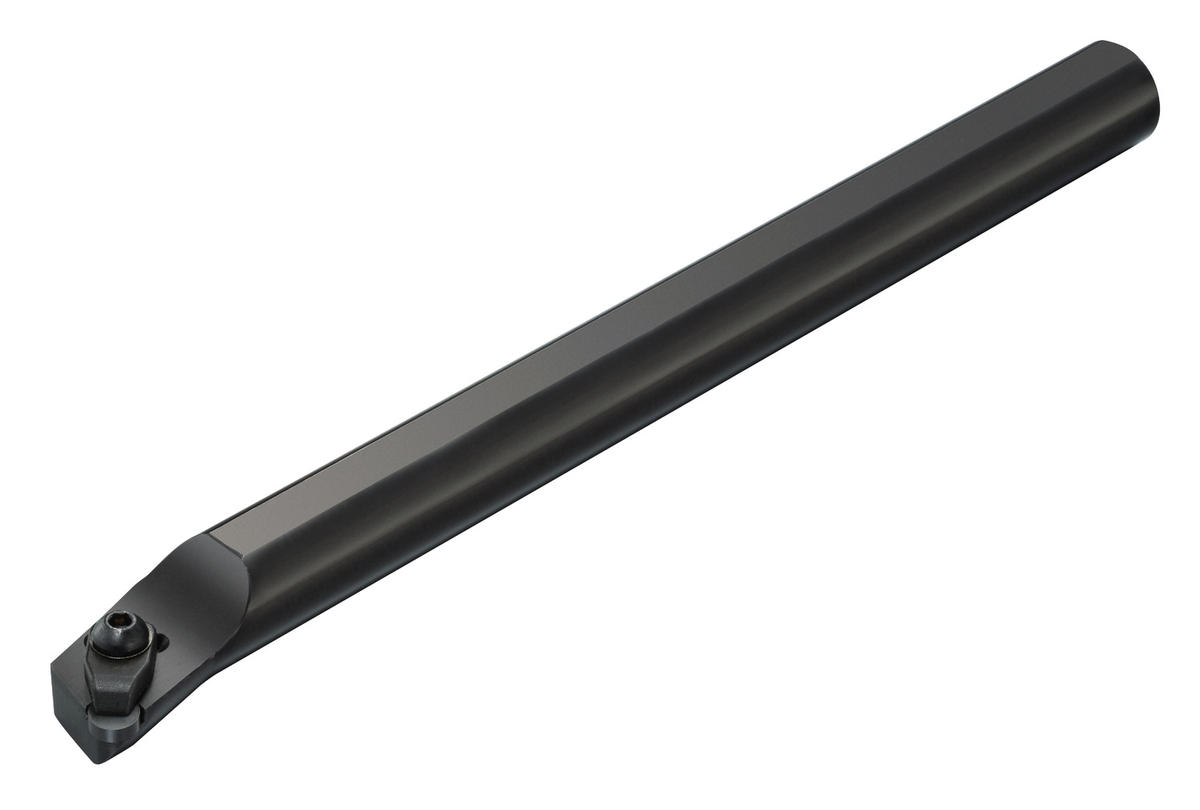

Sandvik Coromant 5752505
Specifications
| Minimum Bore Diameter (Metric) | 32 |
|---|---|
| Minimum Bore Diameter (Inch) | 1.26 |
| Shank Diameter (Metric) | 25 |
| Direction Of Hand | Right |
| Overall Length (Metric) | 300 |
| Shank Diameter (Inch) | 0.98 |
| Overall Length (Inch) | 11.81 |
| Short Description | T-Max® boring bar for turning |
| Unit Of Measure | Metric |
| Series | T-Max |
| Shank Height (Metric) | 23 |
| Shank Height (Decimal) | 0.91 |
| Orthogonal Rake Angle | 0 degrees |
| Overall Length | 300 mm |
| Shank Diameter | 25 mm |
| Coolant Through | No |
| ANSI Code | S25T-CRSPR 09-ID |
| Body Material | Steel |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Body Diameter (Decimal) | 0.98 |
| Body Diameter (Metric) | 25 |
| Overall Width (Decimal) | 0.67 |
| Overall Width (Metric) | 17 |
| Inclination Angle | -2 degrees |
| Clamping Type Code | Clamp |
| Torque | 7.5 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Germany |
| Base Item Number | 1026 |
| Max. Overhang (Decimal) | 3.94 |
| Max. Overhang (Metric) | 100 |
| Maximum Ramping Angle | 0 degrees |
| Min Bore Diameter | 32 mm |
| Min. Overhang (Decimal) | 1.97 |
| Min. Overhang (Metric) | 50 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.381 LB |
| Height Packed Product Metric | 30 mm |
| Height Packed Product Imperial | 1.181 inch |
| ISO Code (packed) | S25T-CRSPR09-ID |
| Length Packed Product Metric | 298 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | S25T-CRSPR 09-ID |
| Length Packed Product Imperial | 11.732 inch |
