Sandvik Coromant
5752513
Sandvik Coromant 5752513
Specifications
| Minimum Bore Diameter (Metric) | 32 |
|---|---|
| Minimum Bore Diameter (Inch) | 1.26 |
| Shank Diameter (Metric) | 25 |
| Direction Of Hand | Right |
| Overall Length (Metric) | 300 |
| Shank Diameter (Inch) | 0.98 |
| Overall Length (Inch) | 11.81 |

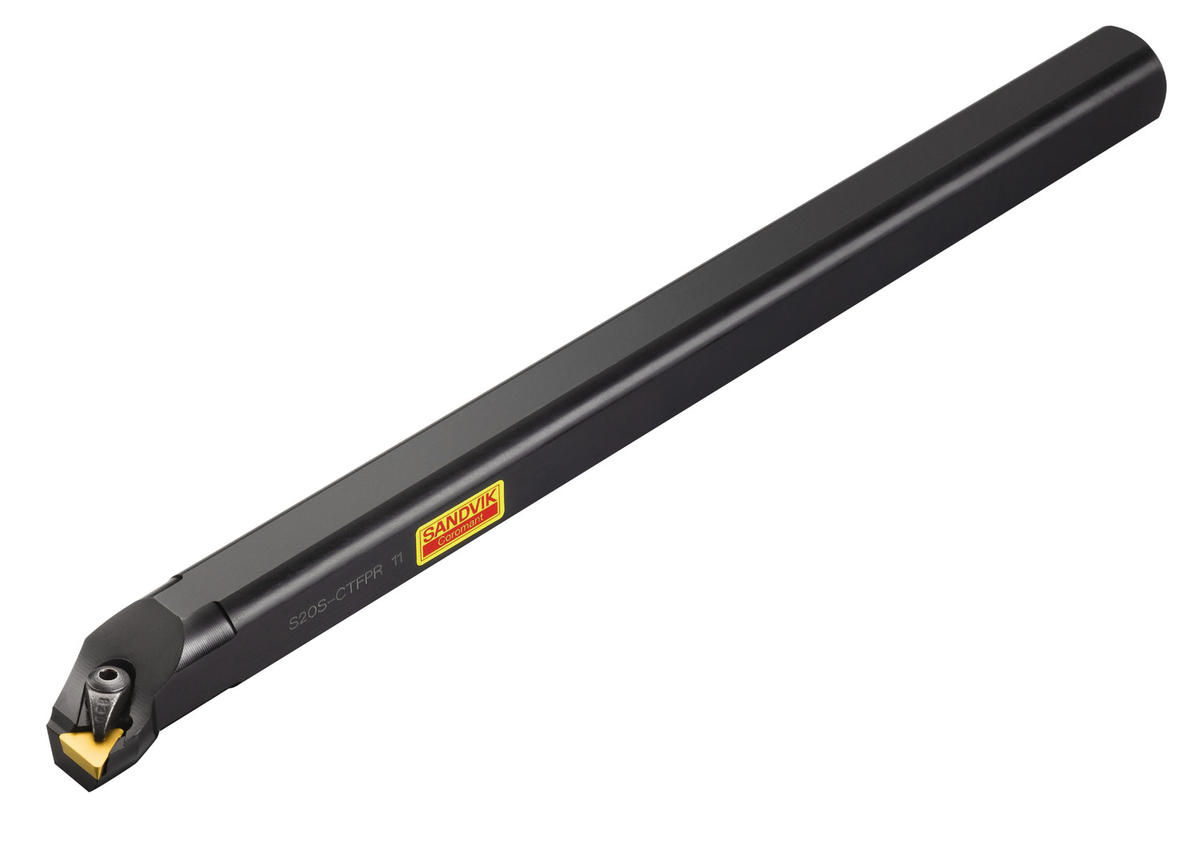

| Short Description | T-Max® S boring bar for turning |
| Unit Of Measure | Metric |
| Series | T-Max S |
| Shank Height (Metric) | 23 |
| Shank Height (Decimal) | 0.91 |
| Orthogonal Rake Angle | 6 degrees |
| Overall Length | 300 mm |
| Shank Diameter | 25 mm |
| Coolant Through | No |
| Tool Lead Angle | -1 degrees |
| ANSI Code | S25T-CTFPR 16 |
| Body Material | Steel |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 91 degrees |
| Body Diameter (Decimal) | 0.98 |
| Body Diameter (Metric) | 25 |
| Overall Width (Decimal) | 0.67 |
| Overall Width (Metric) | 17 |
| Inclination Angle | 0 degrees |
| Clamping Type Code | Clamp |
| Torque | 5 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | India |
| Base Item Number | 1057 |
| Max. Overhang (Decimal) | 3.94 |
| Max. Overhang (Metric) | 100 |
| Maximum Ramping Angle | 0 degrees |
| Min Bore Diameter | 32 mm |
| Min. Overhang (Decimal) | 1.93 |
| Min. Overhang (Metric) | 49 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.337 LB |
| Height Packed Product Metric | 35 mm |
| Height Packed Product Imperial | 1.378 inch |
| ISO Code (packed) | S25T-CTFPR16 |
| Length Packed Product Metric | 305 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | S25T-CTFPR 16 |
| Length Packed Product Imperial | 12.008 inch |
