Sandvik Coromant
5752667
Sandvik Coromant 5752667
Specifications
| Overall Length (Metric) | 125 |
|---|---|
| Series | CoroTurn 107 |
| Tool Lead Angle | -3 degrees |
| Overall Length (Inch) | 4.92 |
| Insert Style | SVJBR/L |

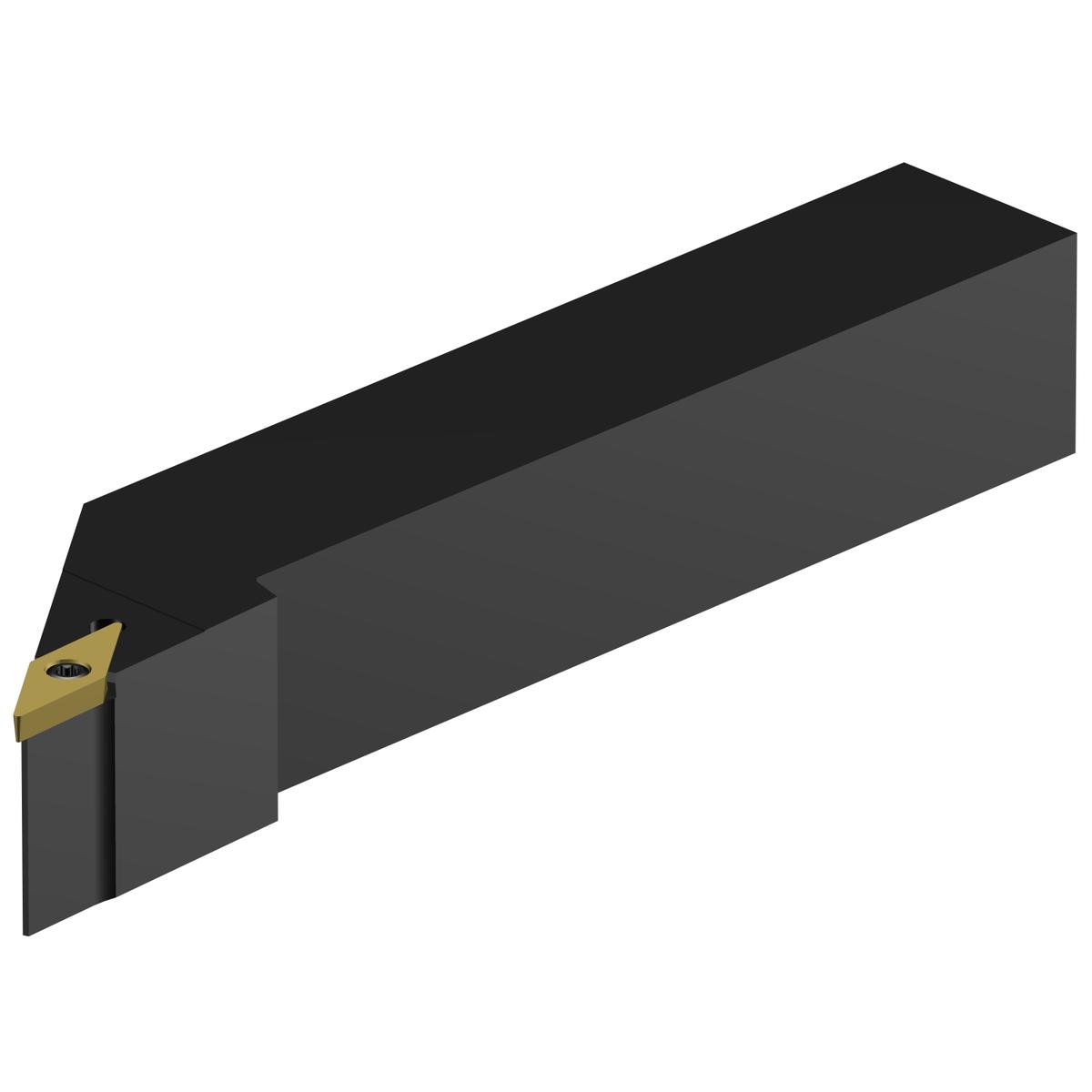

| Short Description | CoroTurn® 107 shank tool for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 20 mm |
| Orthogonal Rake Angle | 0 degrees |
| Shank Width (Decimal) | 0.87 |
| Shank Width (Metric) | 20 |
| Shank Height (Metric) | 20 |
| Inclination Angle | 0 degrees |
| Overall Height (Metric) | 20 |
| Overall Height (Decimal) | 0.79 |
| Overall Length | 125 mm |
| Insert Compatibility | VBMT 110204/VCMT 110204 |
| ANSI Code | SVJBR 2020K 11 |
| Coolant Through | No |
| Overall Width (Decimal) | 0.98 |
| Overall Width (Metric) | 25 |
| Shank Height (Decimal) | 0.79 |
| Clamping Type Code | Screw/Clamp |
| Torque | 0.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1053 |
| Max. Overhang (Decimal) | 0.84 |
| Max. Overhang (Metric) | 21.2 |
| Maximum Ramping Angle | 50 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.767 LB |
