Sandvik Coromant
5752776
Sandvik Coromant 5752776
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Thickness (Metric) | 2.38 |
| Corner Radius (Metric) | 0.79 |
| Material | WC or Cermet |
| Size | 1.81.52 |
| Corner Radius (Inch) | 0.03 |
| Style | TCMT |
| Thickness (Inch) | 0.09 |

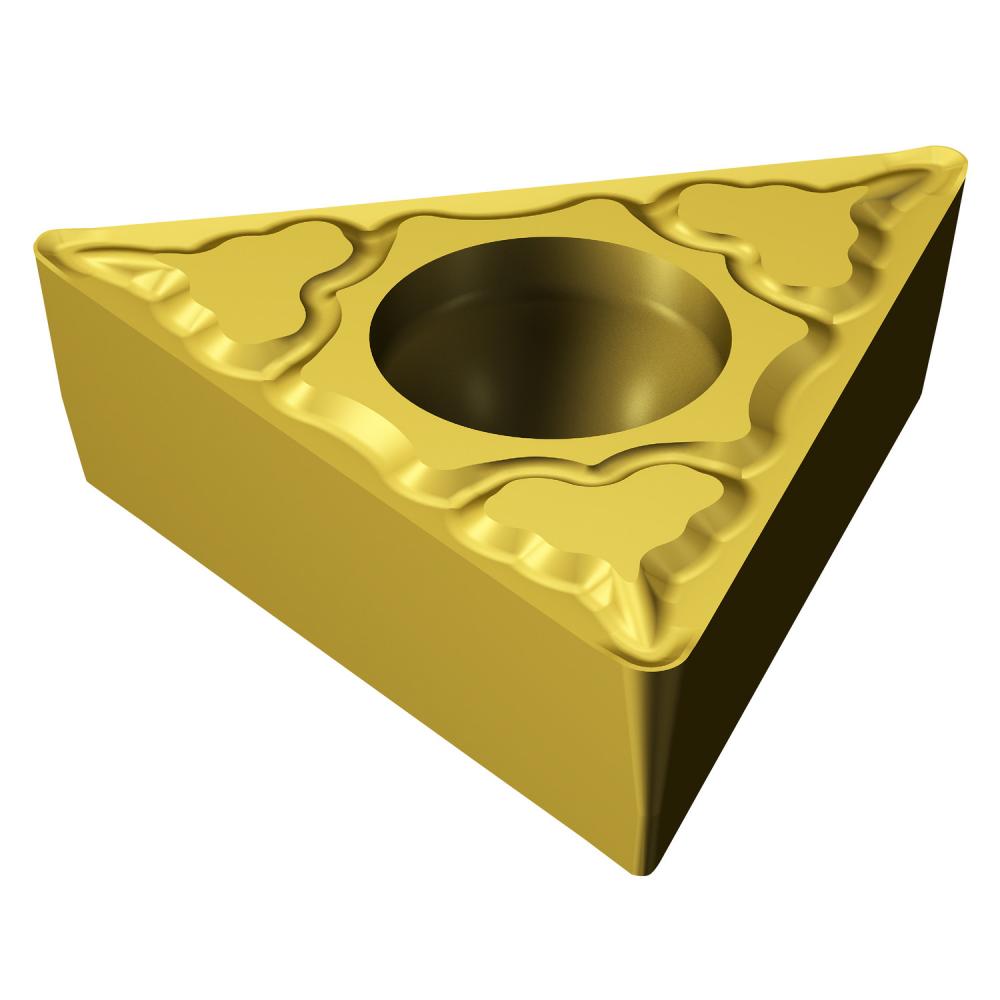

| Short Description | CoroTurn® 107 insert for turning |
| Grade | 2035 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 5.56 mm |
| Inscribed Circle Diameter (Decimal) | 0.22 |
| Inscribed Circle Diameter (Metric) | 5.56 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.34 |
| Length (Metric) | 8.57 |
| Shape | Triangle |
| Country of Origin | India |
| Series | CoroTurn 107 |
| Chip Breaker Type | MM |
| ANSI Code | TCMT 1.8(1.5)2-MM 2035 |
| ISO Code | TCMT 09 02 08-MM 2035 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.1 |
| Fixing Hole Diameter (Metric) | 2.5 |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | M |
| Base Item Number | 1053 |
| Length | 8.57 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.002 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | TCMT |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | TCMT090208-MM2035 |
| Insert Size | 1.81.52 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TCMT 09 02 08-MM 2035 |
| Length Packed Product Imperial | 3.74 inch |
