Sandvik Coromant
5752917
Sandvik Coromant 5752917
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 3.18 |
| Corner Radius (Metric) | 0.4 |
| Material | WC |
| Size | 221 |
| Corner Radius (Inch) | 0.02 |
| Style | TEG |
| Thickness (Inch) | 0.13 |

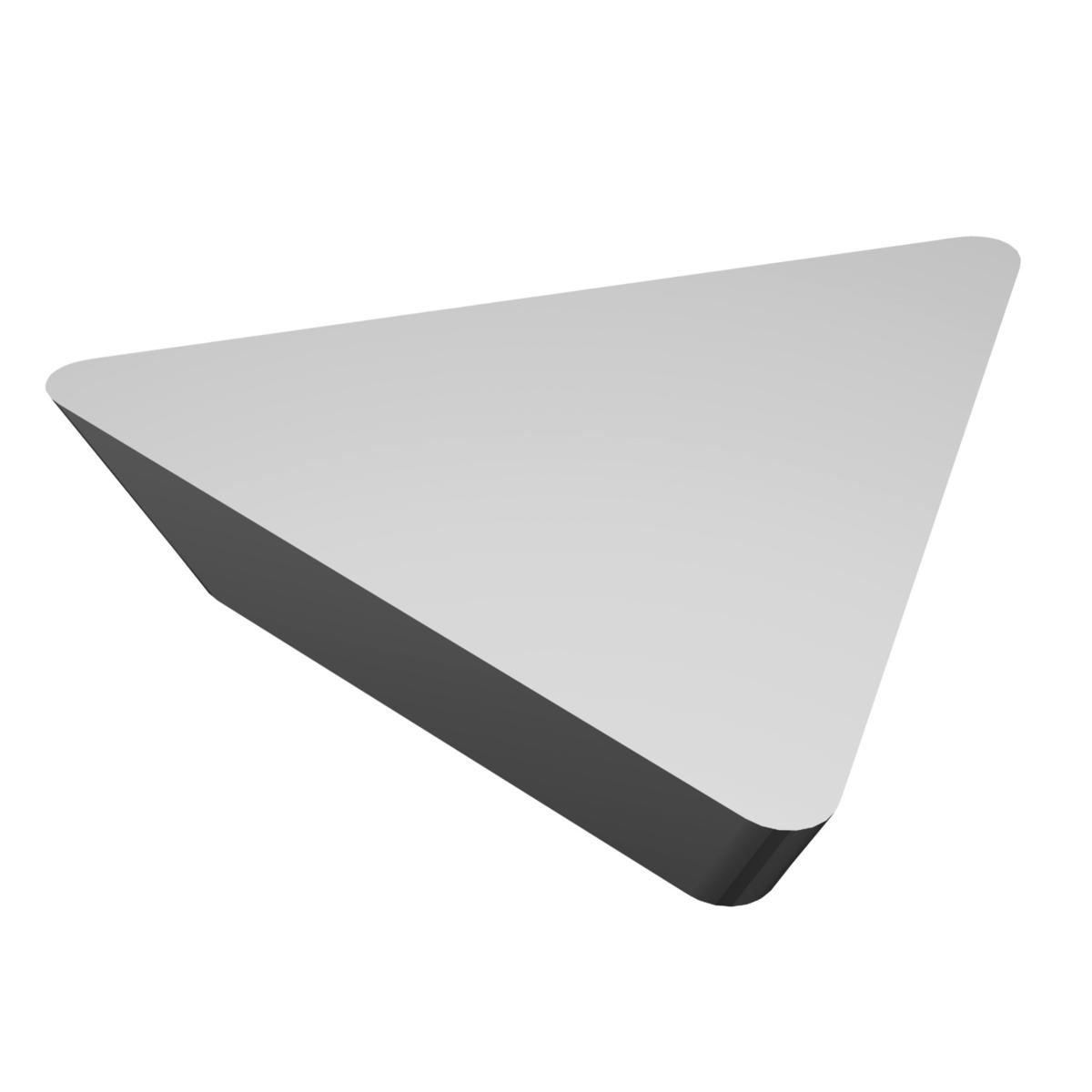

| Short Description | T-Max® insert for turning |
| Grade | H10 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Clearance Angle Major | 20 degrees |
| Length (Decimal) | 0.42 |
| Length (Metric) | 10.6 |
| Shape | Triangle |
| Country of Origin | India |
| Series | T-Max |
| Chip Breaker Type | EGN |
| ANSI Code | TEG 221 H10 |
| ISO Code | TEGN 11 03 04 H10 |
| Hand of Insert | Neutral |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Wiper Edge Property | No |
| ISO Material Classification | N |
| Base Item Number | 1026 |
| Length | 10.6 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | TEG |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | TEGN110304H10 |
| Insert Size | 221 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TEGN 11 03 04 H10 |
| Length Packed Product Imperial | 3.74 inch |
