Sandvik Coromant
5753236
Sandvik Coromant 5753236
Specifications
| Overall Length (Metric) | 127 |
|---|---|
| Overall Length (Inch) | 5 |
| Shank Width (Inch) | 1 |
| Shank Width (Metric) | 25.4 |
| Insert Style | TLSR/L |
| Base Item Number | 2017 |
| Max. Cutting Depth | 0.13 Inch |
| Max. Cutting Depth (Decimal) | 0.13 |
| Max. Cutting Depth (Metric) | 3.18 |
| Max. Overhang (Decimal) | 1.3 |
| Max. Overhang (Metric) | 33.02 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.367 LB |

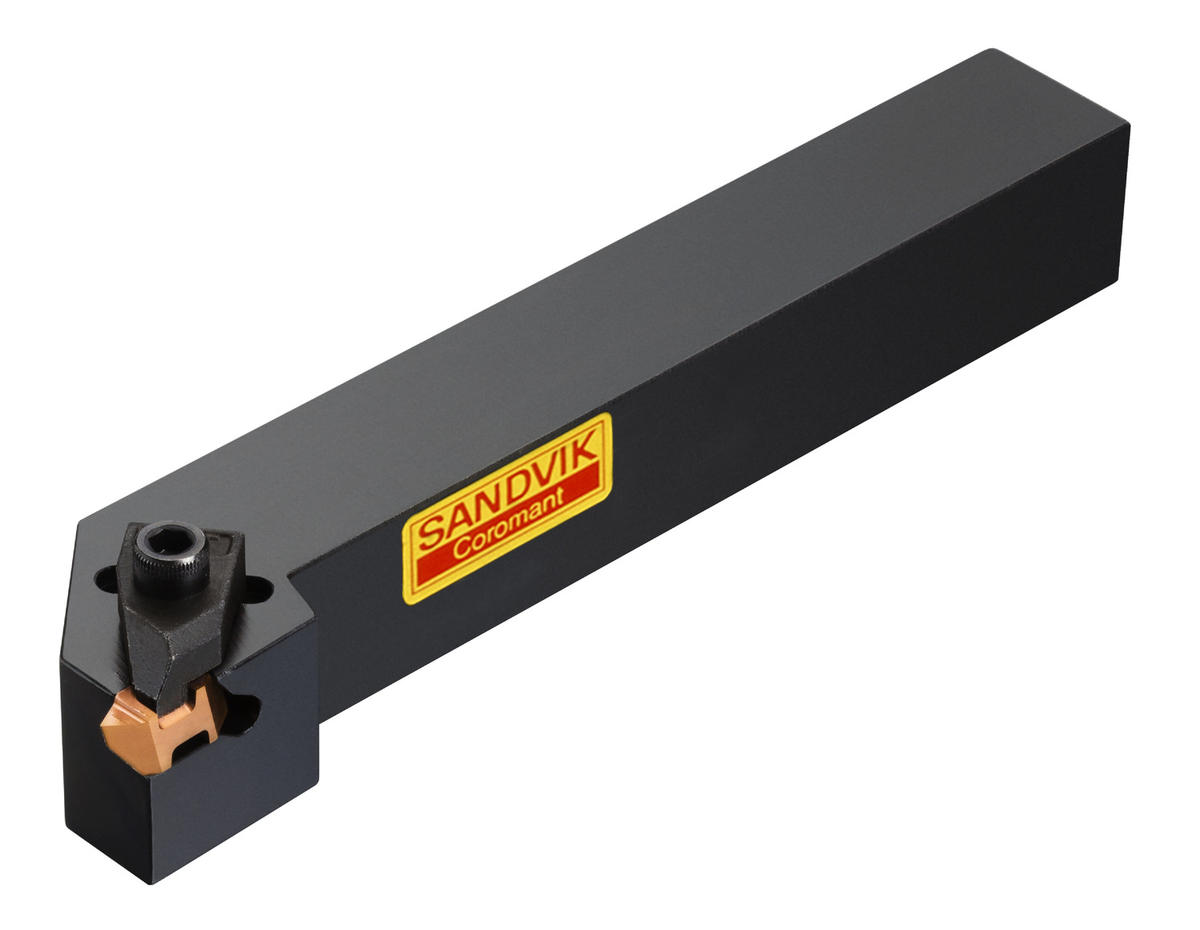

| Short Description | Top Lok shank tool for parting and grooving |
| Series | Top Lok |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Insert Compatibility | TLG2R |
| Shank Height | 1 Inch |
| Shank Width | 1 Inch |
| Shank Height (Decimal) | 1 |
| Shank Height (Metric) | 25.4 |
| ANSI Code | TLSR-162C |
| Coolant Through | No |
| Overall Width (Decimal) | 1.25 |
| Overall Width (Metric) | 31.75 |
| Insert Seat Size Code | 2 |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Clamp |
| Torque | 3 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | India |
