Sandvik Coromant
5753397

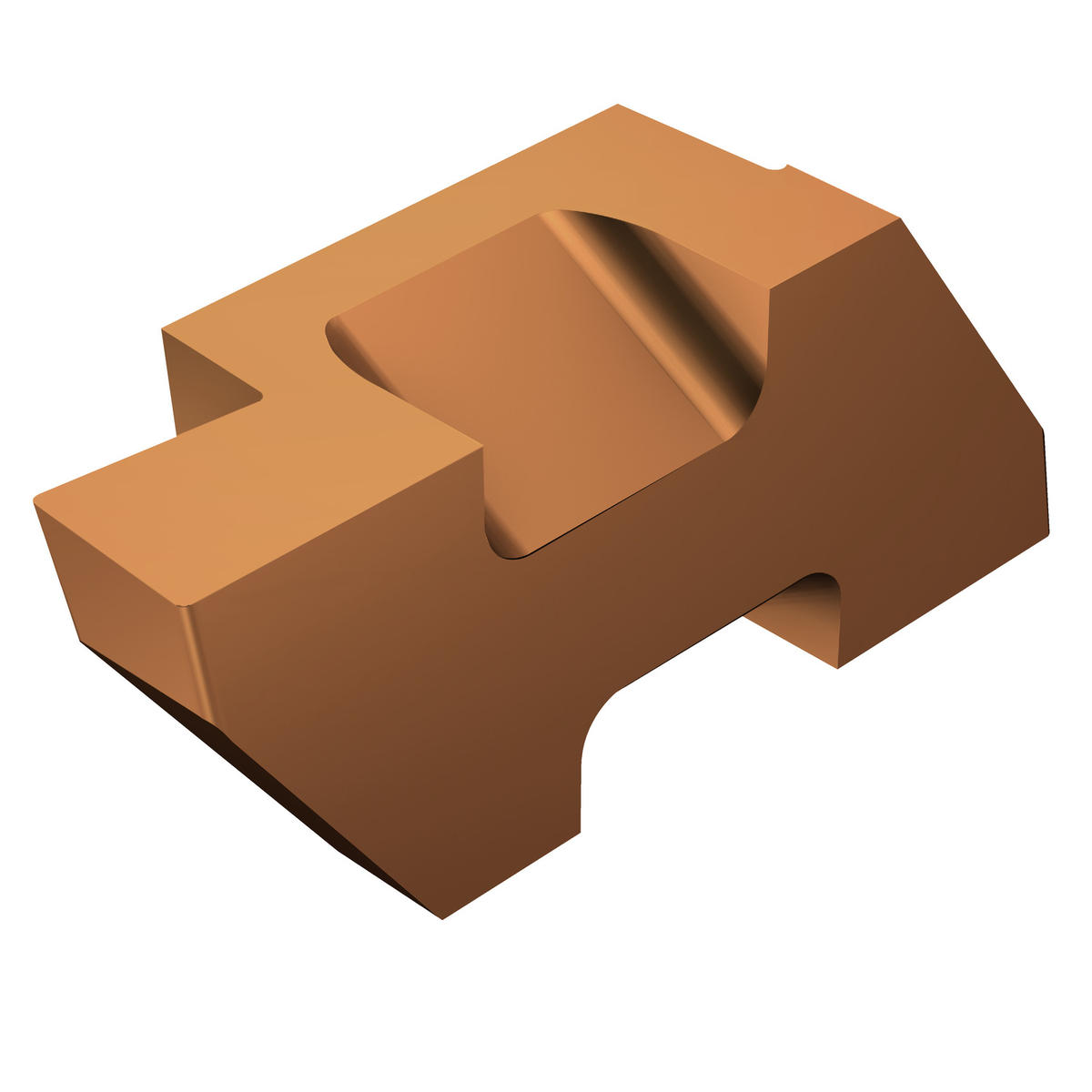

Sandvik Coromant 5753397
Specifications
| Size | 3 |
|---|---|
| Coating/Finish | TiAlN |
| Material | WC or Cermet |
| Base Item Number | 2017 |
| Cutting Width (Inch) | 0.14 |
| Max. Depth Of Cut (Decimal) | 0.15 |
| Max. Depth Of Cut (Metric) | 3.81 |
| Maximum Depth Of Cut (Inch) | 0.15 |
| Maximum Depth Of Cut (Metric) | 3.81 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.021 LB |
| Unit Of Measure | Imperial |
| Short Description | Top Lok insert for grooving |
| Series | Top Lok |
| Style | TLG |
| Grade | 1125 |
| Cutting Width | 0.14 Inch |
| Cutting Width (Decimal) | 0.14 |
| Cutting Width (Metric) | 3.607 |
| ANSI Code | TLG-3142R 1125 |
| ISO Code | TLG-3142R 1125 |
| Insert Seat Size Code | 3 |
| Hand of Insert | Right |
| Coating Process Type | PVD |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Clearance Angle Major | 10 degrees |
| Machine Side Body Angle | 0 degrees |
| Corner Radius Left (Decimal) | 0.01 |
| Corner Radius Left (Metric) | 0.32 |
| Corner Radius Right (Decimal) | 0.01 |
| Corner Radius Right (Metric) | 0.32 |
| Cutting Width Lower Tolerance (Decimal) | -0.001 |
| Cutting Width Lower Tolerance (Metric) | -0.03 |
| Cutting Width Upper Tolerance (Decimal) | 0.001 |
| Cutting Width Upper Tolerance (Metric) | 0.03 |
| ISO Material Classification | PMKN |
| Country of Origin | United States |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | TLG |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | TLG-3142R1125 |
| Insert Size | 3 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TLG-3142R 1125 |
| Length Packed Product Imperial | 5.079 inch |
