Sandvik Coromant
5753535

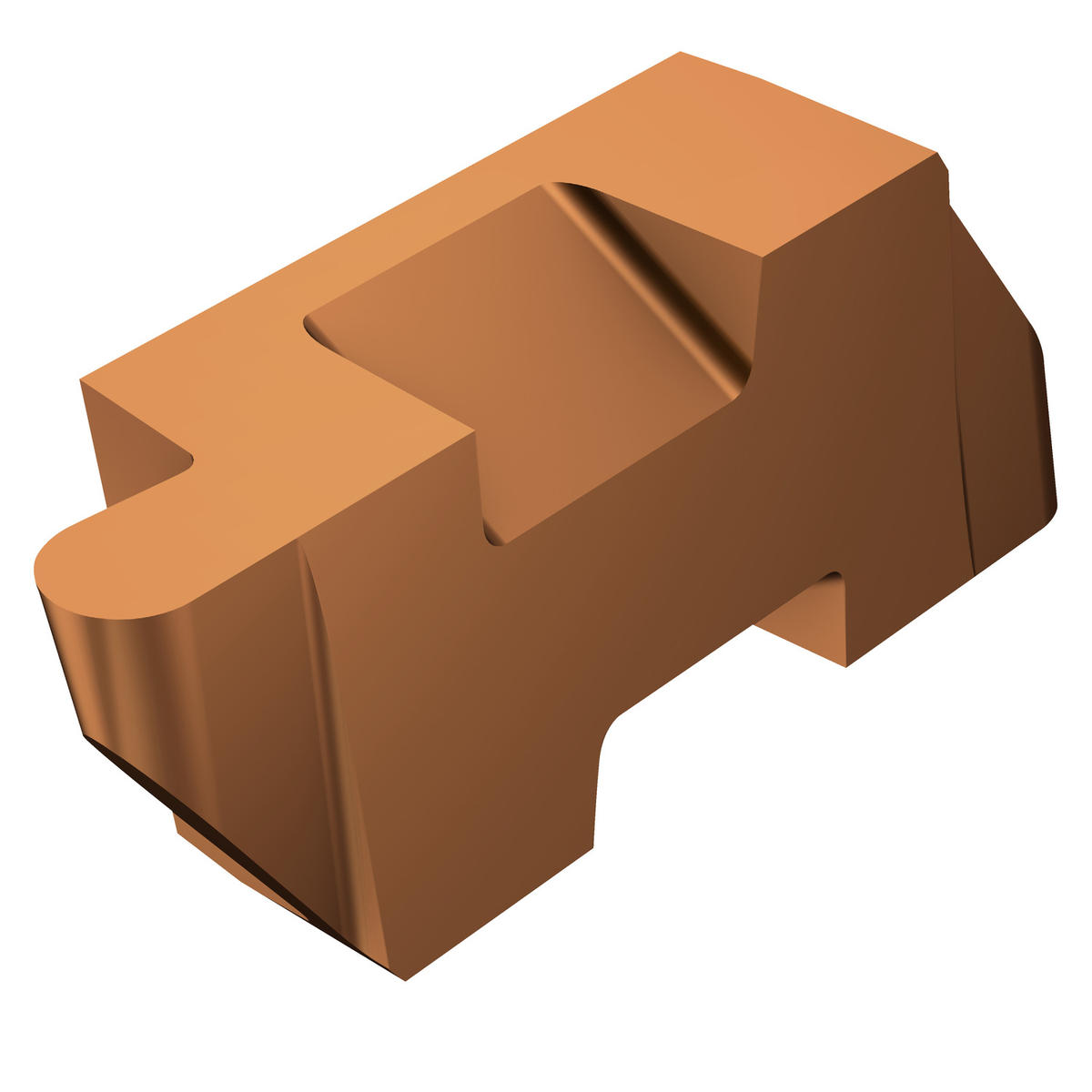

Sandvik Coromant 5753535
Specifications
| Series | Top Lok |
|---|---|
| Corner Radius (Metric) | 1.58 |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.06 |
| Insert Size | 3 |
| Coating/Finish | TiAlN |
| Short Description | Top Lok insert for profiling |
| Style | TLRP |
| Grade | 1125 |
| Unit Of Measure | Imperial |
| Cutting Width | 0.12 Inch |
| Cutting Width (Decimal) | 0.12 |
| Cutting Width (Metric) | 3.15 |
| ANSI Code | TLRP-3062R 1125 |
| ISO Code | TLRP-3062R 1125 |
| Hand of Insert | Right |
| Coating Process Type | PVD |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Insert Seat Size Code | 3 |
| Rake Angle | 10 degrees |
| Clearance Angle Major | 10 degrees |
| Machine Side Body Angle | 0 degrees |
| Cutting Width Lower Tolerance (Decimal) | -0.001 |
| Cutting Width Lower Tolerance (Metric) | -0.03 |
| Cutting Width Upper Tolerance (Decimal) | 0.001 |
| Cutting Width Upper Tolerance (Metric) | 0.03 |
| ISO Material Classification | PMKN |
| Country of Origin | United States |
| Base Item Number | 2017 |
| Cutting Width (Inch) | 0.12 |
| Max. Cutting Depth (Decimal) | 0.15 |
| Max. Cutting Depth (Metric) | 3.81 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.02 LB |
