Sandvik Coromant
5753745

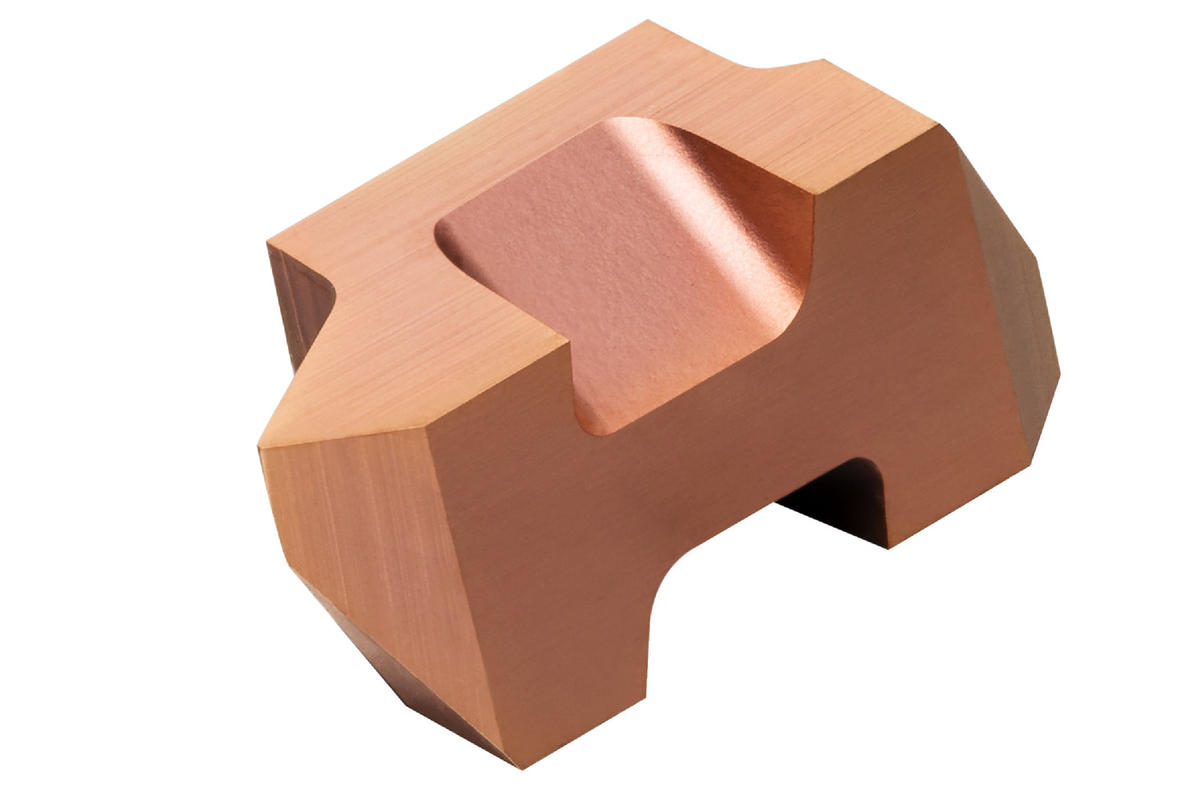

Sandvik Coromant 5753745
Specifications
| Insert Style | TLTP |
|---|---|
| Material | WC or Cermet |
| Coating/Finish | TiAlN |
| Short Description | Top Lok insert for thread turning |
| Unit Of Measure | Imperial |
| Grade | 1125 |
| Series | Top Lok |
| Size | 3 |
| Thread Type | External/Internal |
| Thread Form | VP60 |
| Thread Pitch | 0.05 to 0.20 Inch |
| Threads per Inch | 5 to 20 |
| Thread Profile Type | Partial |
| Thickness | 0.34 Inch |
| Thread Pitch (Decimal) | 0.049 to 0.20 |
| Thread Pitch (Metric) | 1.25 to 5 |
| Thickness (Decimal) | 0.34 |
| Thickness (Metric) | 8.74 |
| ANSI Code | TLTP-3L 1125 |
| ISO Code | TLTP-3L 1125 |
| Hand of Insert | Left |
| Corner Radius (Decimal) | 0.006 |
| Corner Radius (Metric) | 0.17 |
| Coating Process Type | PVD |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Theoretical Thread Height (Decimal) | 0.15 |
| Theoretical Thread Height (Metric) | 3.76 |
| Profile Distance EX (Decimal) | 0.098 |
| Profile Distance EX (Metric) | 2.49 |
| ISO Material Classification | PMKNSH |
| Country of Origin | United States |
| Base Item Number | 2017 |
| number of Teeth | 1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.02 LB |
| Height Packed Product Metric | 13.5 mm |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | TLTP-3L1125 |
| Insert Size | 3 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TLTP-3L 1125 |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 12312344 |
