Sandvik Coromant
5754036

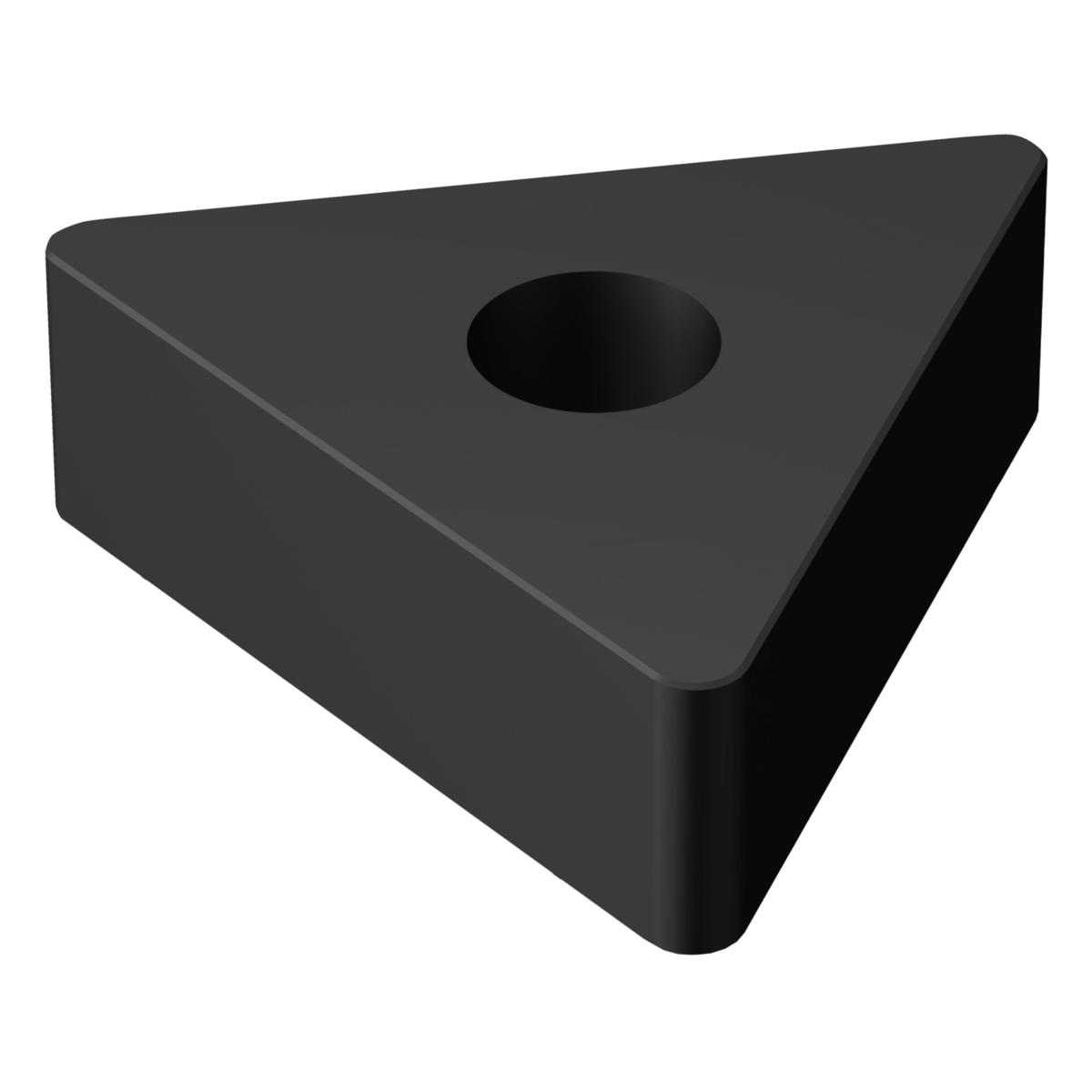

Sandvik Coromant 5754036
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 1.59 |
| Material | Mixed Ceramic Main AL2O3 |
| Size | 334 |
| Corner Radius (Inch) | 0.06 |
| Style | TNGA |
| Thickness (Inch) | 0.19 |
| Short Description | T-Max® P insert for turning |
| Grade | 650 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 9.53 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 0 degrees |
| Face Land Width (Metric) | 0.1 |
| Face Land Width (Decimal) | 0.004 |
| Length (Decimal) | 0.59 |
| Length (Metric) | 14.9 |
| Face Land Angle | 20 degrees |
| Shape | Triangle |
| Country of Origin | Japan |
| Series | T-Max P |
| ANSI Code | TNGA334T0320 650 |
| ISO Code | TNGA160416T01020 650 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.15 |
| Fixing Hole Diameter (Metric) | 3.81 |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Ceramic |
| Number of Cutting Edges | 6 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | KSH |
| Base Item Number | 1049 |
| Length | 14.9 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | TNGA |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | TNGA160416T01020650 |
| Insert Size | 334 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TNGA160416T01020 650 |
| Length Packed Product Imperial | 3.74 inch |
