Sandvik Coromant
5754878
Sandvik Coromant 5754878
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 0.79 |
| Material | WC |
| Size | 432 |
| Corner Radius (Inch) | 0.03 |
| Style | TPGN |
| Thickness (Inch) | 0.19 |

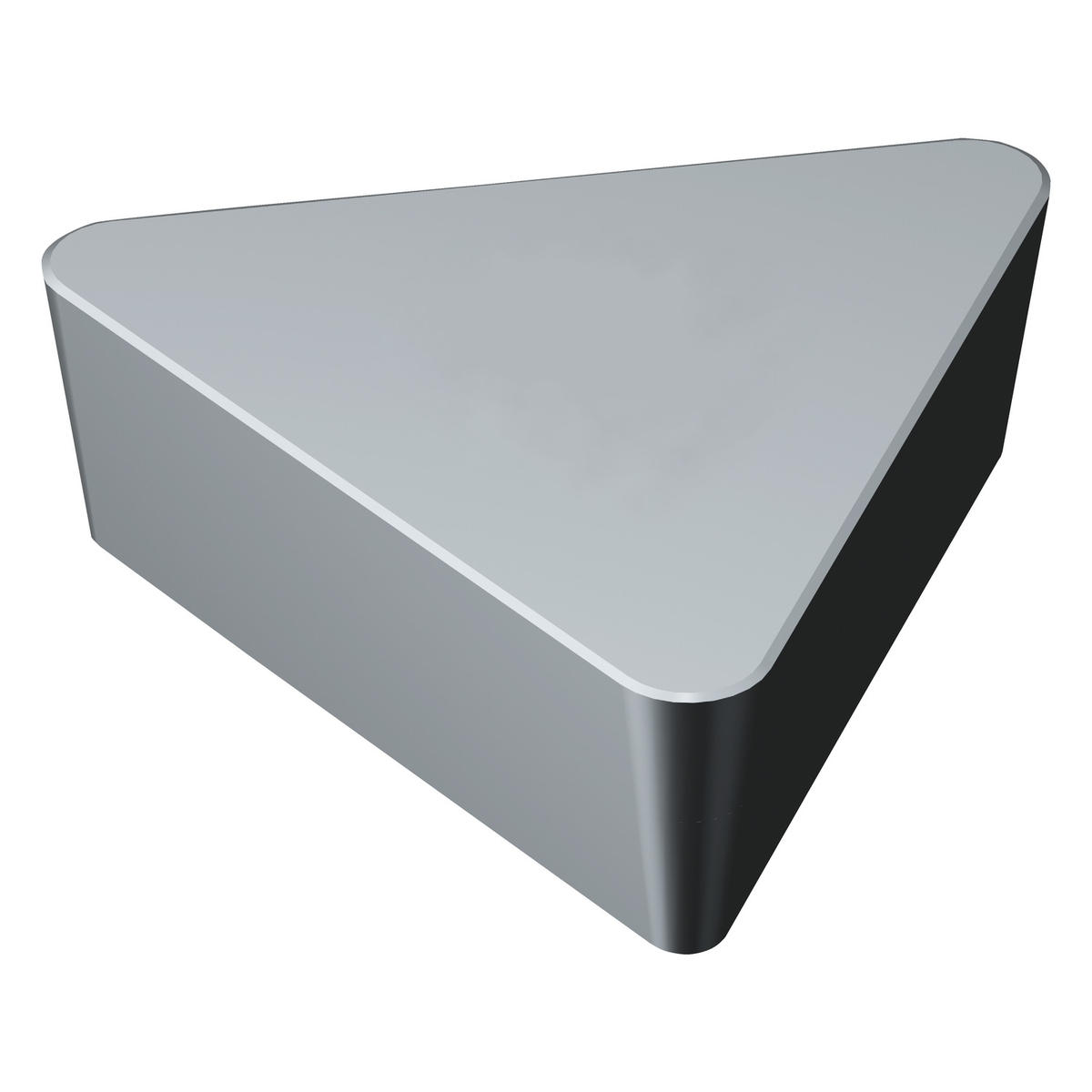

| Short Description | T-Max® insert for turning |
| Grade | H13A |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 12.7 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Clearance Angle Major | 11 degrees |
| Length (Decimal) | 0.84 |
| Length (Metric) | 21.2 |
| Shape | Triangle |
| Country of Origin | India |
| Series | T-Max |
| Chip Breaker Type | PGN |
| ANSI Code | TPG 432 H13A |
| ISO Code | TPGN 22 04 08 H13A |
| Hand of Insert | Neutral |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Wiper Edge Property | No |
| ISO Material Classification | PMKNS |
| Base Item Number | 1026 |
| Length | 21.2 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.028 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | TPGN |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | TPGN220408H13A |
| Insert Size | 432 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TPGN 22 04 08 H13A |
| Length Packed Product Imperial | 5.079 inch |
