Sandvik Coromant
5755216

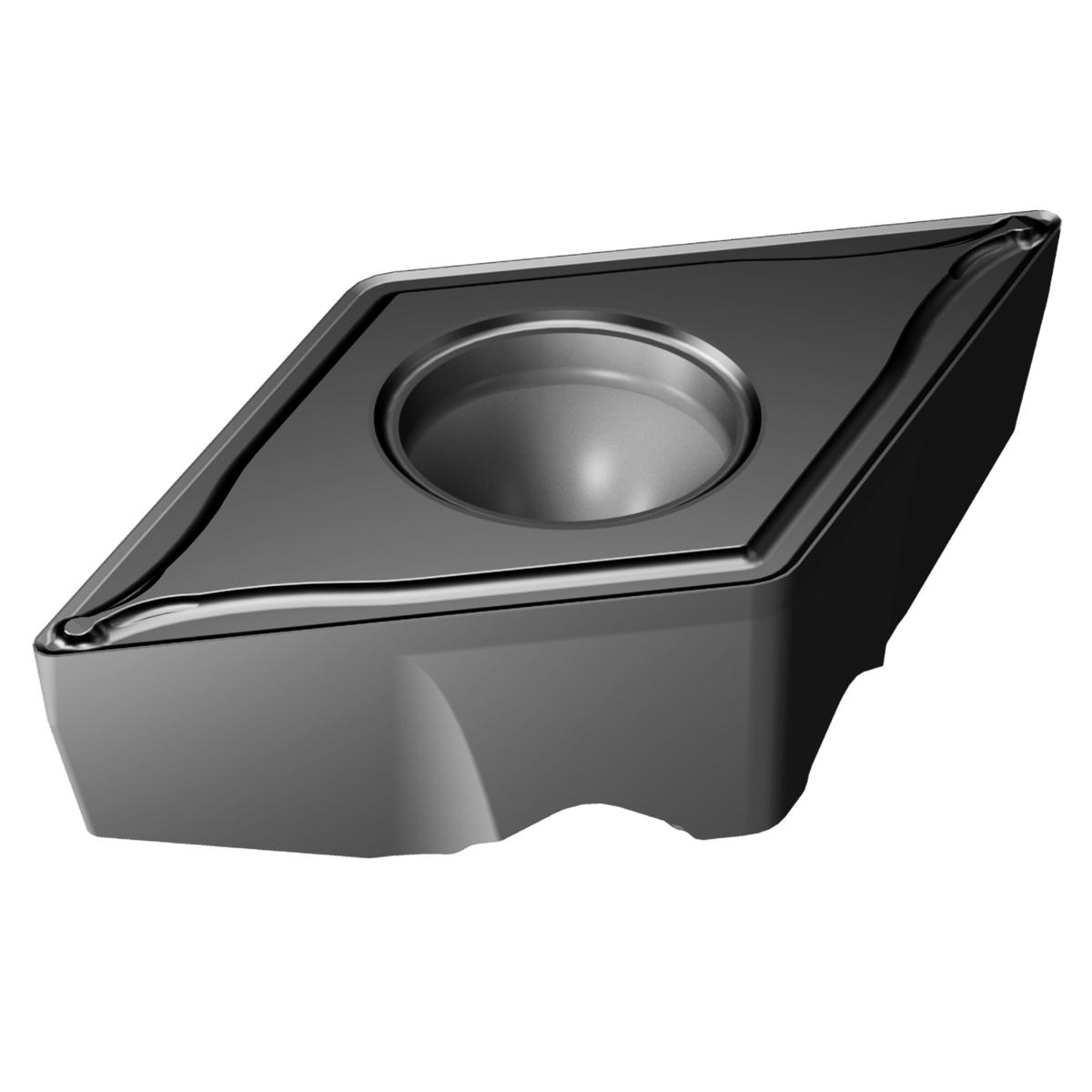

Sandvik Coromant 5755216
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Thickness (Metric) | 5.53 |
| Corner Radius (Metric) | 0.4 |
| Material | WC or Cermet |
| Size | 1304 |
| Corner Radius (Inch) | 0.02 |
| Style | TRDC |
| Thickness (Inch) | 0.22 |
| Short Description | CoroTurn® TR insert for turning |
| Grade | 1105 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 11 mm |
| Inscribed Circle Diameter (Decimal) | 0.43 |
| Inscribed Circle Diameter (Metric) | 11 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.5 |
| Length (Metric) | 12.6 |
| Shape | Diamond |
| Country of Origin | Sweden |
| Series | CoroTurn TR |
| Chip Breaker Type | F |
| ANSI Code | TR-DC1304-F 1105 |
| ISO Code | TR-DC1304-F 1105 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.15 |
| Fixing Hole Diameter (Metric) | 3.7 |
| Coating Process Type | PVD |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PMS |
| Base Item Number | 1056 |
| Length | 12.6 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.02 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | TRDC |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | TR-DC1304-F1105 |
| Insert Size | 1304 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | TR-DC1304-F 1105 |
| Length Packed Product Imperial | 5.079 inch |
