Sandvik Coromant
5755260

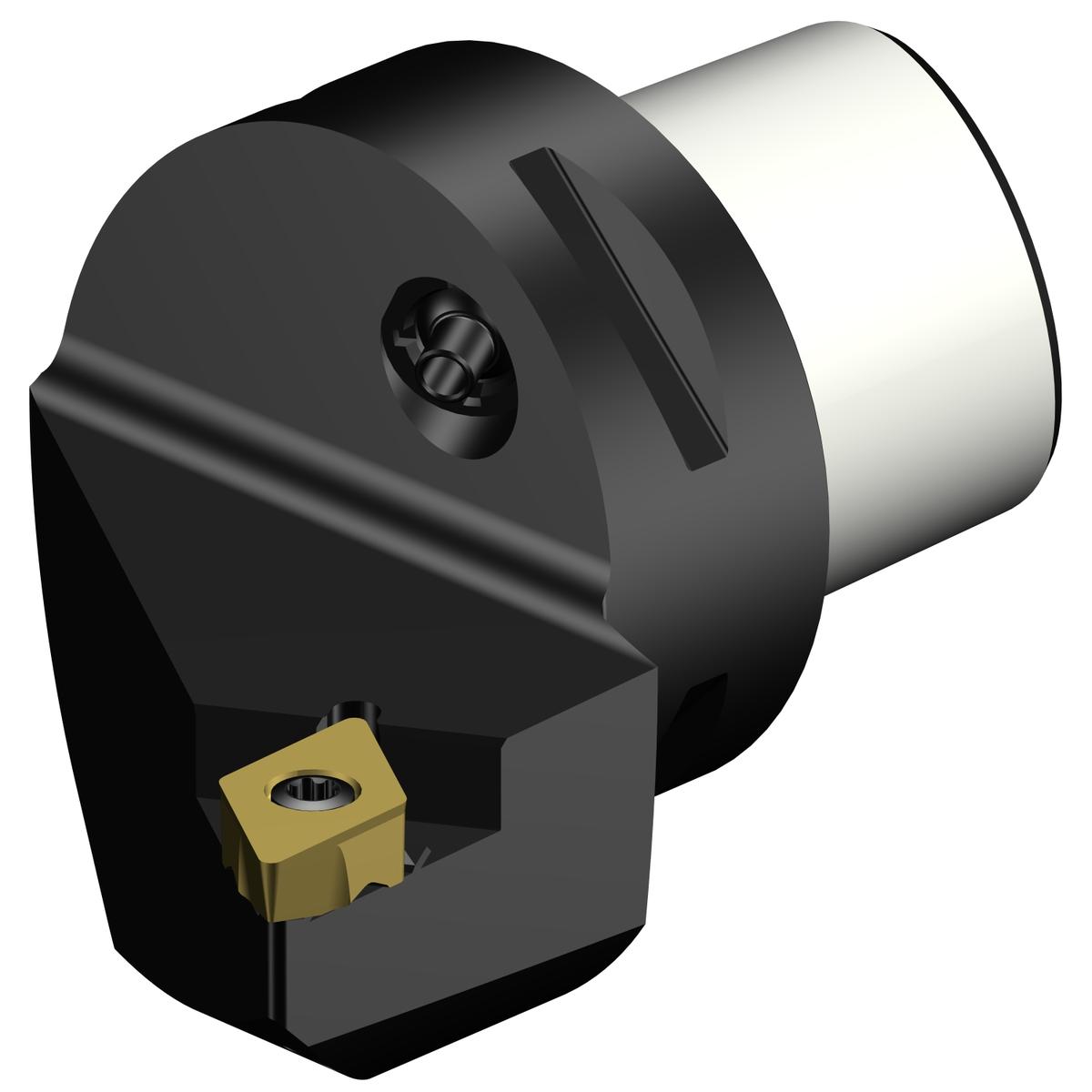

Sandvik Coromant 5755260
Specifications
| Center to Cutting Edge (Inch) | 1.38 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Size | C5 |
| Series | CoroTurn TR |
| Center to Cutting Edge (Metric) | 35 |
| Short Description | CoroTurn® TR cutting unit for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 35 mm |
| Insert Style | TR-DC1308 |
| ANSI Code | TR-C5-D13JCR-35060 |
| Connection Diameter (Decimal) | 1.97 |
| Connection Diameter (Metric) | 50 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | 0 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Tool Lead Angle | -3 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 6: Decentral Exit With Nozzles, Adjustable |
| Country of Origin | Sweden |
| Base Item Number | 1056 |
| Max. Hole Depth | 60 mm |
| Max. Hole Depth (Decimal) | 2.36 |
| Max. Hole Depth (Metric) | 60 |
| Max. Overhang (Decimal) | 2.36 |
| Max. Overhang (Metric) | 60 |
| Maximum Ramping Angle | 27 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.385 LB |
