Sandvik Coromant
5755328

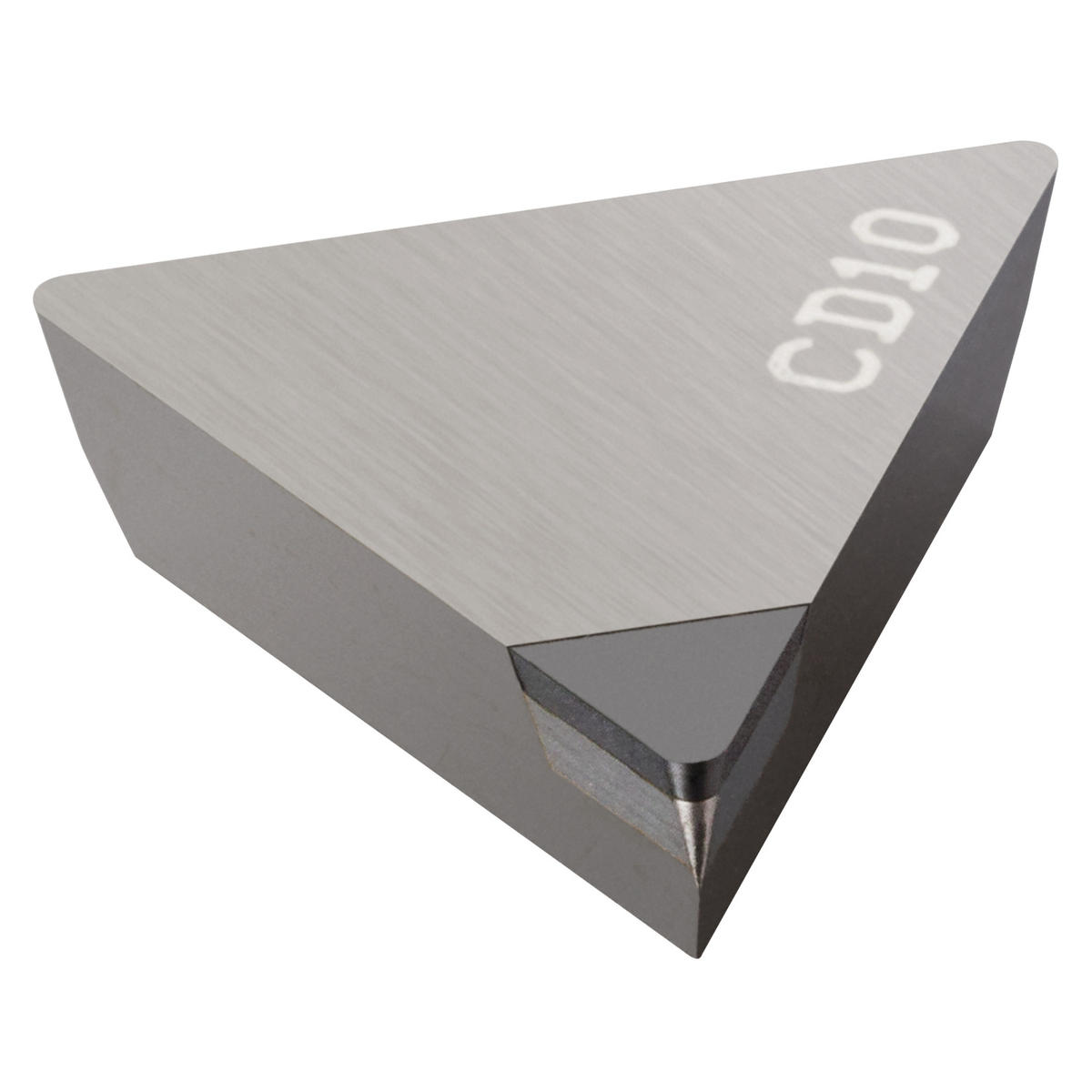

Sandvik Coromant 5755328
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 3.18 |
| Corner Radius (Metric) | 0.4 |
| Material | PCD |
| Size | 221 |
| Corner Radius (Inch) | 0.02 |
| Style | TPUN |
| Thickness (Inch) | 0.13 |
| Short Description | T-Max® insert for turning |
| Grade | CD10 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Clearance Angle Major | 11 degrees |
| Length (Decimal) | 0.11 |
| Length (Metric) | 2.7 |
| Shape | Triangle |
| Country of Origin | United States |
| Series | T-Max |
| Chip Breaker Type | FP |
| ANSI Code | TPU221FP CD10 |
| ISO Code | TPUN110304FP CD10 |
| Hand of Insert | Neutral |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | PCD |
| Number of Cutting Edges | 1 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | N |
| Base Item Number | 1026 |
| Length | 2.7 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | TPUN |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | TPUN110304FPCD10 |
| Insert Size | 221 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TPUN110304FP CD10 |
| Length Packed Product Imperial | 3.74 inch |
