Sandvik Coromant
5755460
Sandvik Coromant 5755460
Specifications
| Center to Cutting Edge (Inch) | 0.87 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.58 |
| Size | 32 |
| Series | CoroTurn TR |
| Bore Diameter (Metric) | 40 |
| Center to Cutting Edge (Metric) | 22 |

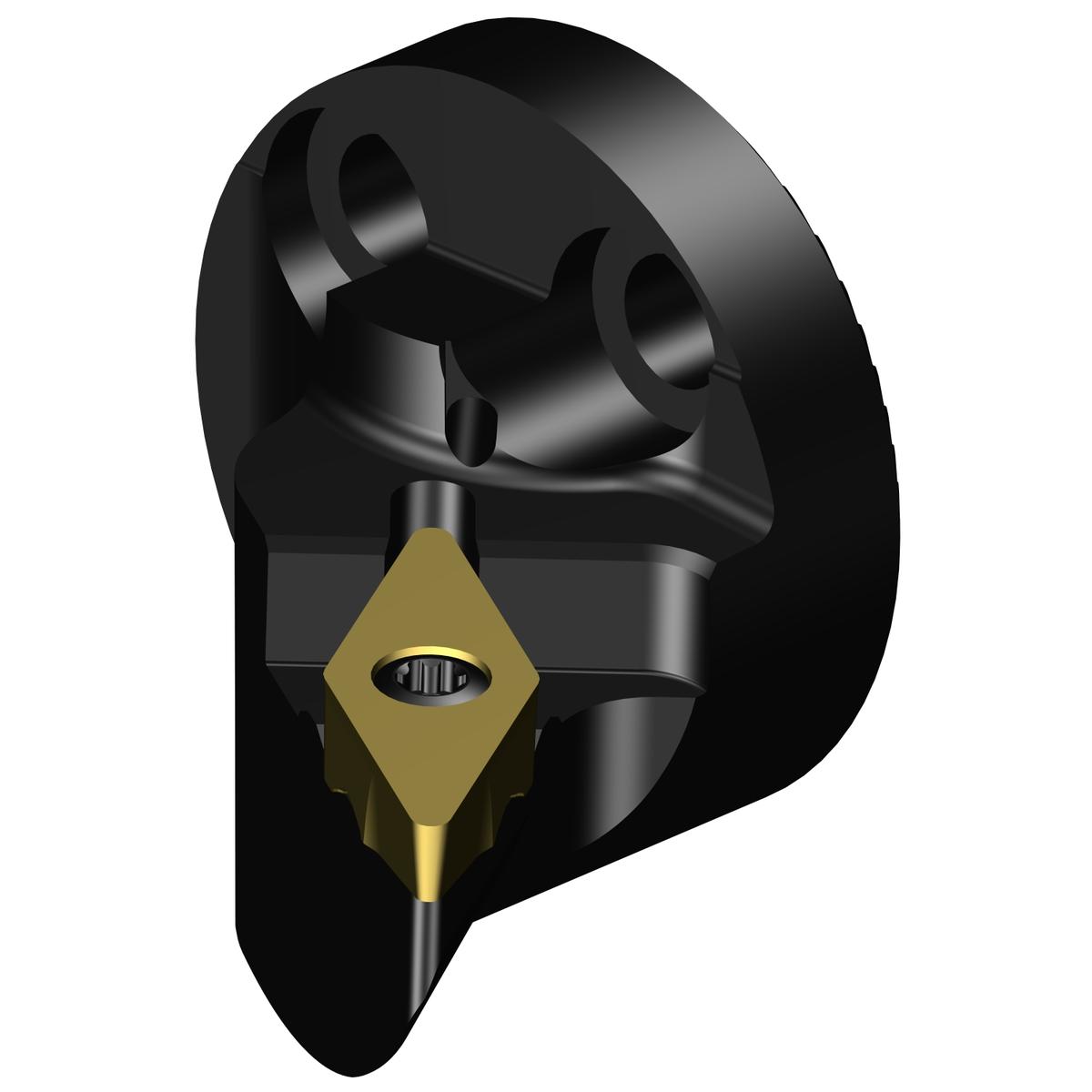

| Short Description | CoroTurn® TR head for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 22 mm |
| Insert Style | TR-VB1308 |
| ANSI Code | TR-SL-V13PBR-32 |
| Connection Diameter (Decimal) | 1.26 |
| Connection Diameter (Metric) | 32 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 2 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -5 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Tool Cutting Edge Angle | 117.5 degrees |
| Tool Lead Angle | -27.5 degrees |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | India |
| Base Item Number | 1056 |
| Max. Hole Depth | 32 mm |
| Max. Hole Depth (Decimal) | 1.26 |
| Max. Hole Depth (Metric) | 32 |
| Max. Overhang (Decimal) | 1.26 |
| Max. Overhang (Metric) | 32 |
| Maximum Ramping Angle | 25 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.154 LB |
| Height Packed Product Metric | 60 mm |
| Height Packed Product Imperial | 2.362 inch |
| ISO Code (packed) | TR-SL-V13PBR-32 |
| Length Packed Product Metric | 78 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TR-SL-V13PBR-32 |
| Length Packed Product Imperial | 3.071 inch |
