Sandvik Coromant
5755549

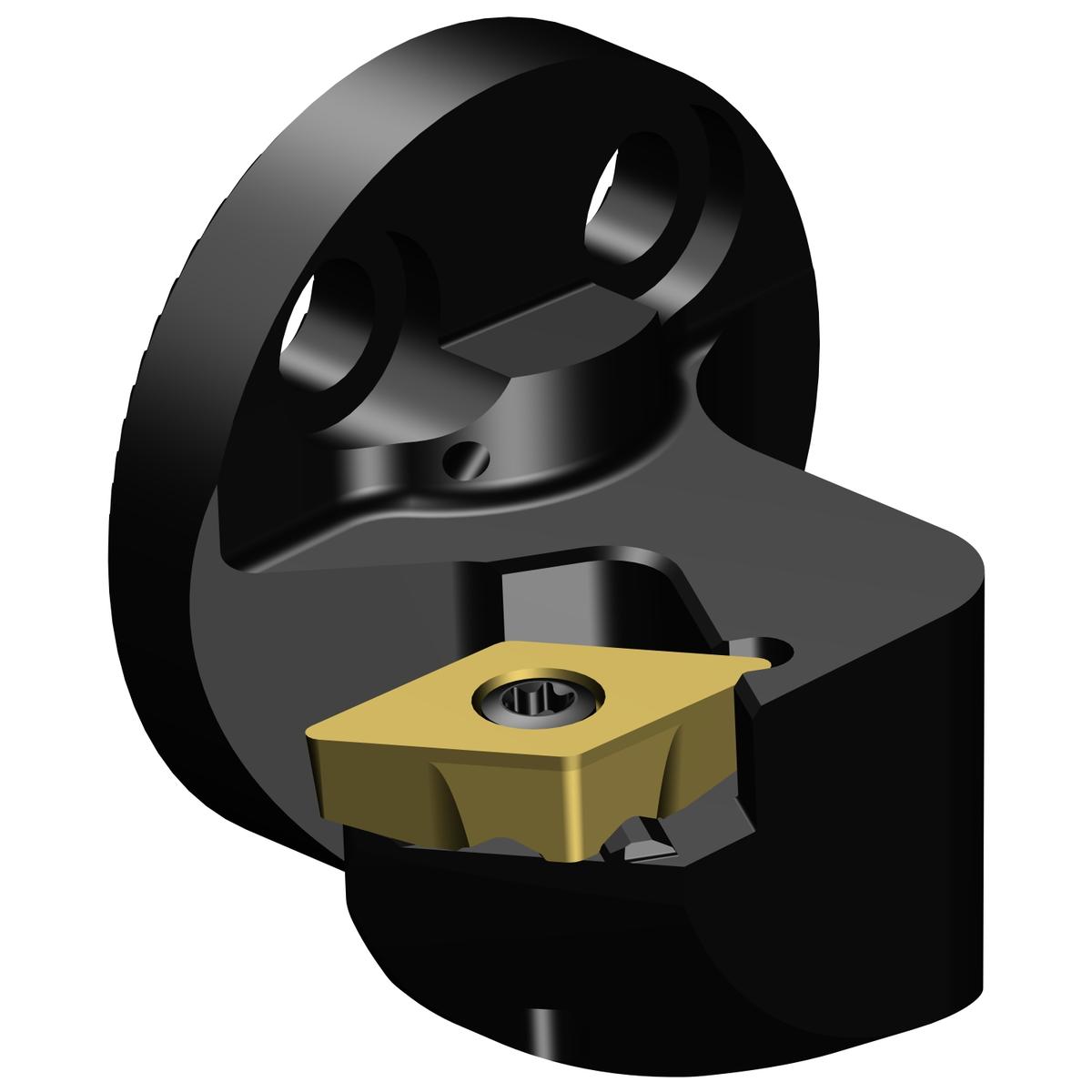

Sandvik Coromant 5755549
Specifications
| Center to Cutting Edge (Inch) | 1.06 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.97 |
| Size | 40 |
| Series | CoroTurn TR |
| Bore Diameter (Metric) | 50 |
| Center to Cutting Edge (Metric) | 27 |
| Short Description | CoroTurn® TR head for back boring |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 27 mm |
| Insert Style | TR-DC1308 |
| ANSI Code | TR-SL-D13UCL-40X |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -3 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Tool Lead Angle | -3 degrees |
| Protruding Length (Decimal) | 1.38 |
| Protruding Length (Metric) | 35.1 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | India |
| Base Item Number | 1056 |
| Max. Hole Depth | 20 mm |
| Max. Hole Depth (Decimal) | 0.79 |
| Max. Hole Depth (Metric) | 20 |
| Max. Overhang (Decimal) | 0.79 |
| Max. Overhang (Metric) | 20 |
| Maximum Ramping Angle | 27 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.326 LB |
