Sandvik Coromant
5755935
Sandvik Coromant 5755935
Specifications
| Coating/Finish | TiAlN+TiAlN |
|---|---|
| Thickness (Metric) | 3.18 |
| Corner Radius (Metric) | 0.4 |
| Material | WC or Cermet |
| Size | 221 |
| Corner Radius (Inch) | 0.02 |
| Style | VCGT |
| Thickness (Inch) | 0.13 |

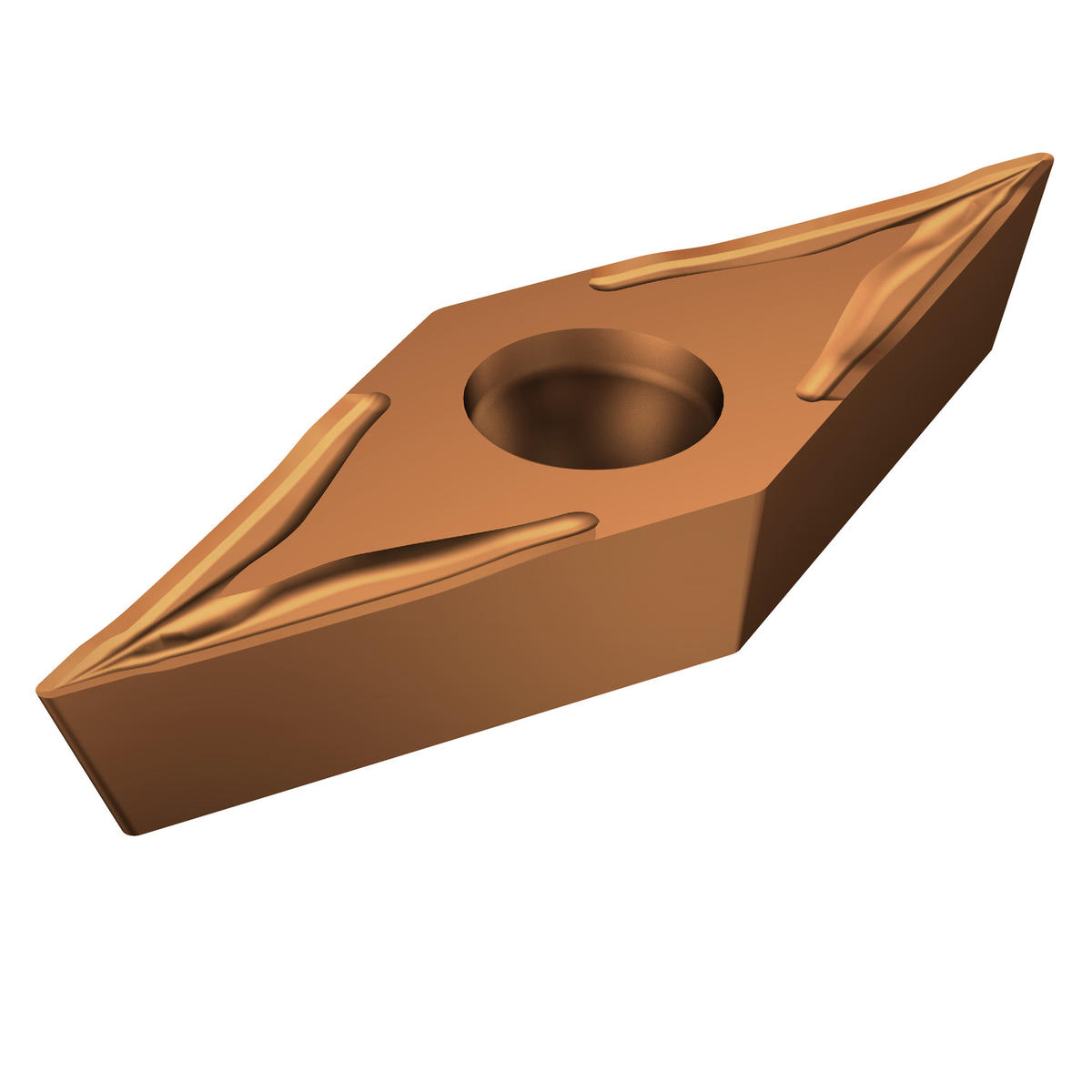

| Short Description | CoroTurn® 107 insert for turning |
| Grade | 1125 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.42 |
| Length (Metric) | 10.67 |
| Shape | Diamond |
| Country of Origin | India |
| Series | CoroTurn 107 |
| Chip Breaker Type | UM |
| ANSI Code | VCGT 221-UM 1125 |
| ISO Code | VCGT 11 03 04-UM 1125 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PMNS |
| Base Item Number | 1053 |
| Length | 10.67 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.006 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | VCGT |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | VCGT110304-UM1125 |
| Insert Size | 221 |
| Length Packed Product Metric | 130 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | VCGT 11 03 04-UM 1125 |
| Length Packed Product Imperial | 5.118 inch |
