Sandvik Coromant
5755938

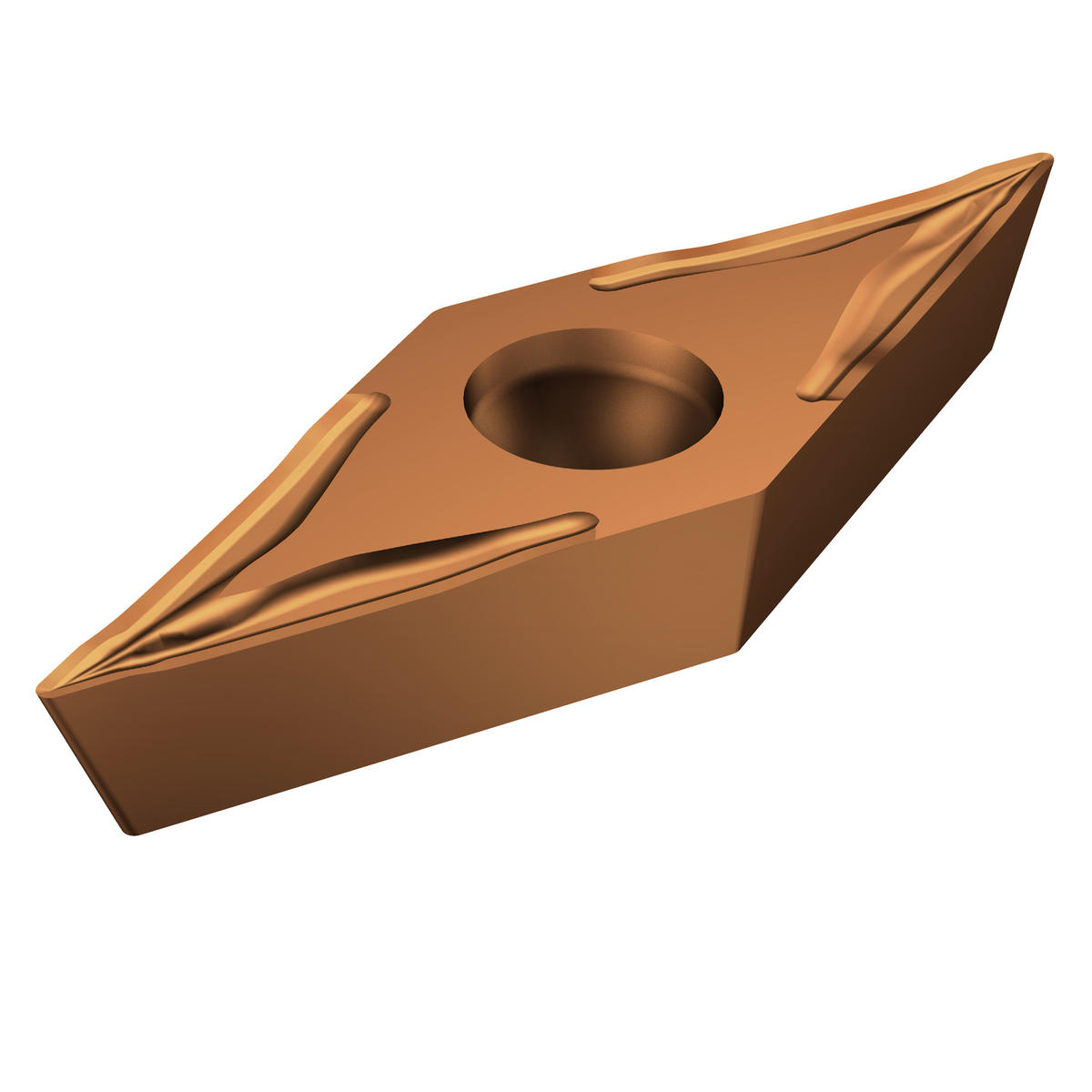

Sandvik Coromant 5755938
Specifications
| Coating/Finish | TiAlN+TiAlN |
|---|---|
| Thickness (Metric) | 3.18 |
| Corner Radius (Metric) | 0.1 |
| Material | WC or Cermet |
| Size | 2203 |
| Style | VCET |
| Thickness (Inch) | 0.13 |
| Short Description | CoroTurn® 107 insert for turning |
| Grade | 1125 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.43 |
| Length (Metric) | 10.97 |
| Shape | Diamond |
| Country of Origin | India |
| Series | CoroTurn 107 |
| Chip Breaker Type | UM |
| ANSI Code | VCET 22(03)-UM 1125 |
| ISO Code | VCET 11 03 01-UM 1125 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PMNS |
| Base Item Number | 1053 |
| Length | 10.97 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.005 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | VCET |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | VCET110301-UM1125 |
| Insert Size | 2203 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | VCET 11 03 01-UM 1125 |
| Length Packed Product Imperial | 5.079 inch |
