Sandvik Coromant
5756054

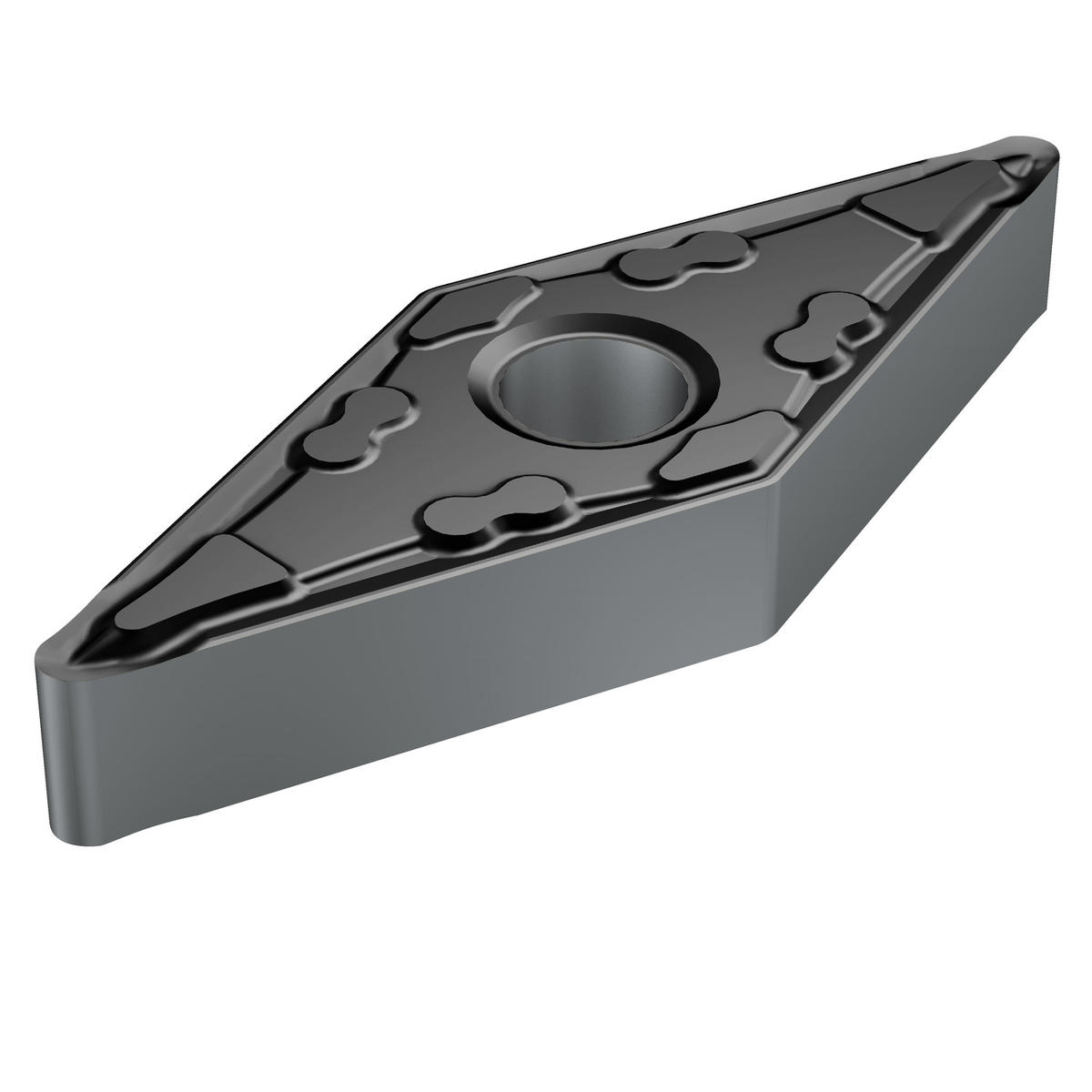

Sandvik Coromant 5756054
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 0.79 |
| Material | WC or Cermet |
| Size | 332 |
| Corner Radius (Inch) | 0.03 |
| Style | VNMG |
| Thickness (Inch) | 0.19 |
| Short Description | T-Max® P insert for turning |
| Grade | 1105 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 9.53 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 0.62 |
| Length (Metric) | 15.81 |
| Shape | Diamond |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | MF |
| ANSI Code | VNMG 332-MF 1105 |
| ISO Code | VNMG 16 04 08-MF 1105 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.15 |
| Fixing Hole Diameter (Metric) | 3.81 |
| Coating Process Type | PVD |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PMS |
| Base Item Number | 1049 |
| Length | 15.81 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.022 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | VNMG |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | VNMG160408-MF1105 |
| Insert Size | 332 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | VNMG 16 04 08-MF 1105 |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 12179565 |
