Sandvik Coromant
5756140

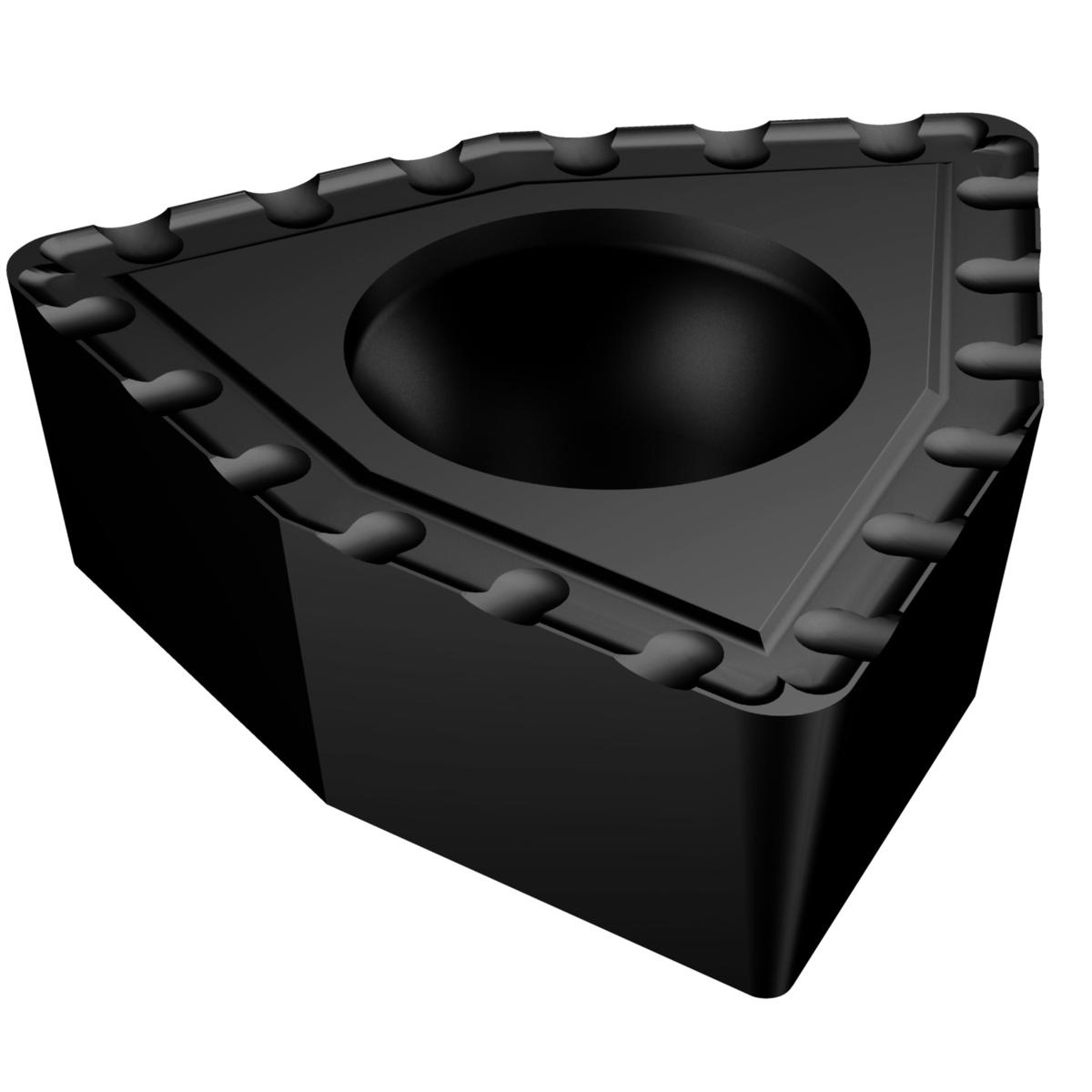

Sandvik Coromant 5756140
Specifications
| Corner Radius (Metric) | 0.8 |
|---|---|
| Type | Asymmetrical Point |
| Series | Coromant U |
| Coating/Finish | TiCN+Al2O3 |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.03 |
| Chip Breaker Type | 58 |
| Unit Of Measure | Metric |
| Style | WCMX |
| Thickness | 3.97 mm |
| Grade | 3040 |
| Thickness (Metric) | 3.97 |
| Short Description | Coromant U insert for drilling |
| Size | 06T308 |
| Shape | Trigon |
| Inscribed Circle Diameter | 9.53 mm |
| Corner Radius | 0.8 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Thickness (Decimal) | 0.16 |
| ANSI Code | WCMX 06 T3 08-58 3040 |
| ISO Code | WCMX 06 T3 08-58 3040 |
| Fixing Hole Diameter (Decimal) | 0.15 |
| Fixing Hole Diameter (Metric) | 3.7 |
| Coating Process Type | CVD |
| Operation Type | Medium Feed |
| Mounting Style | Screw/Clamp |
| Rake Angle | 18 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Wiper Edge Property | No |
| Insert Usage Code | Peripheral |
| Application | Drilling, Indexable |
| ISO Material Classification | PM |
| Country of Origin | Japan |
| Base Item Number | 1102 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.009 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | WCMX |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | WCMX06T308-583040 |
| Insert Size | 06T308 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | WCMX 06 T3 08-58 3040 |
| Length Packed Product Imperial | 3.74 inch |
