Sandvik Coromant
5756275

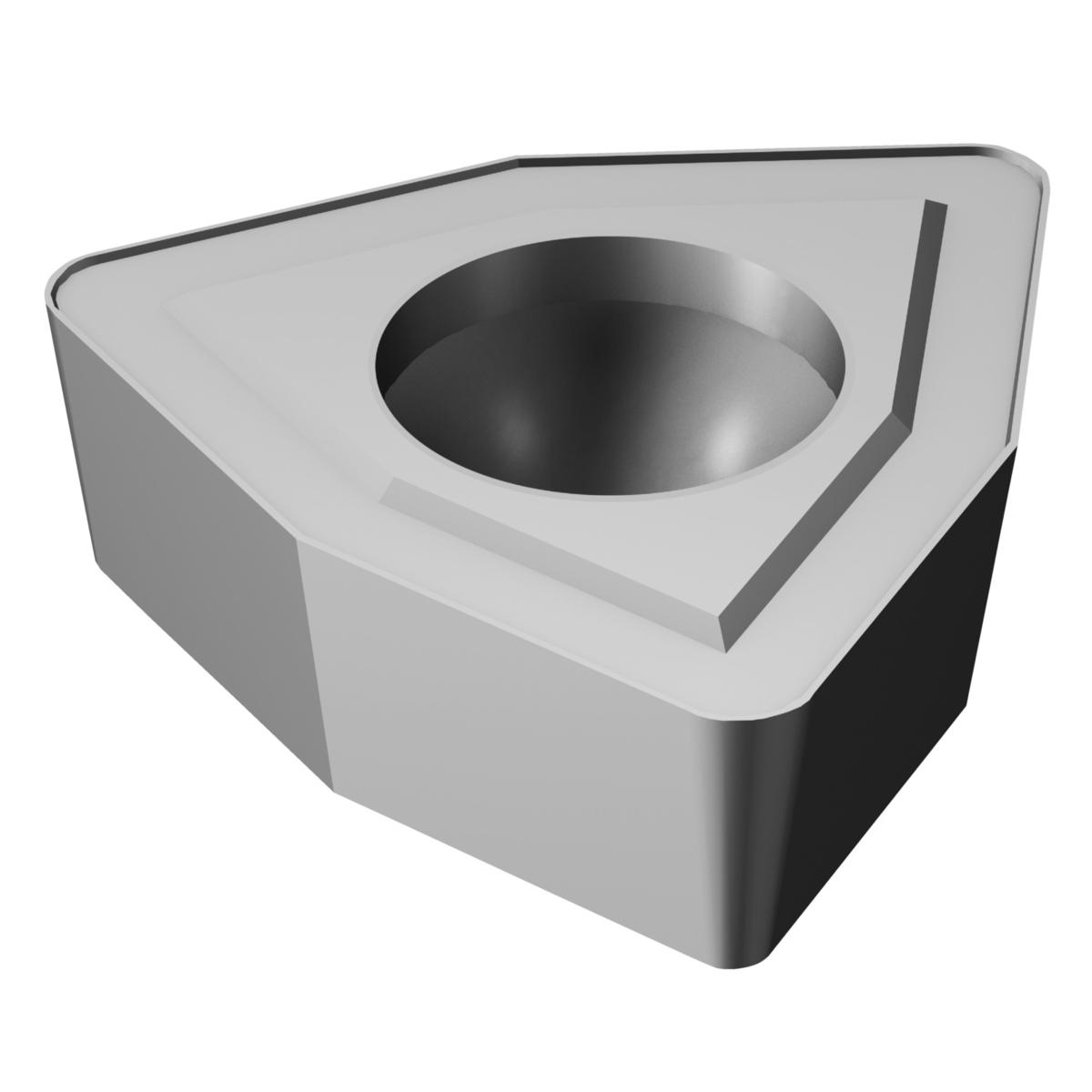

Sandvik Coromant 5756275
Specifications
| Corner Radius (Metric) | 1.2 |
|---|---|
| Type | Asymmetrical Point |
| Series | Coromant U |
| Coating/Finish | Uncoated |
| Material | WC |
| Corner Radius (Inch) | 0.05 |
| Chip Breaker Type | 53 |
| Unit Of Measure | Metric |
| Style | WCMX |
| Thickness | 4.76 mm |
| Grade | H13A |
| Thickness (Metric) | 4.76 |
| Short Description | Coromant U insert for drilling |
| Size | 804 |
| Shape | Trigon |
| Inscribed Circle Diameter | 12.7 mm |
| Corner Radius | 1.2 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Thickness (Decimal) | 0.19 |
| ANSI Code | WCMX 08 04 12 R-53 H13A |
| ISO Code | WCMX 08 04 12 R-53 H13A |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.3 |
| Coating Process Type | Uncoat |
| Operation Type | Medium Feed |
| Mounting Style | Screw/Clamp |
| Rake Angle | 18 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Wiper Edge Property | No |
| Insert Usage Code | Peripheral+Central |
| Application | Drilling, Indexable |
| ISO Material Classification | NS |
| Country of Origin | India |
| Base Item Number | 1102 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.021 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | WCMX |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | WCMX080412R-53H13A |
| Insert Size | 0804 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | WCMX 08 04 12 R-53 H13A |
| Length Packed Product Imperial | 3.74 inch |
