Sandvik Coromant
5756394
Sandvik Coromant 5756394
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 0.79 |
| Material | WC or Cermet |
| Size | 332 |
| Corner Radius (Inch) | 0.03 |
| Style | WNMG |
| Thickness (Inch) | 0.19 |

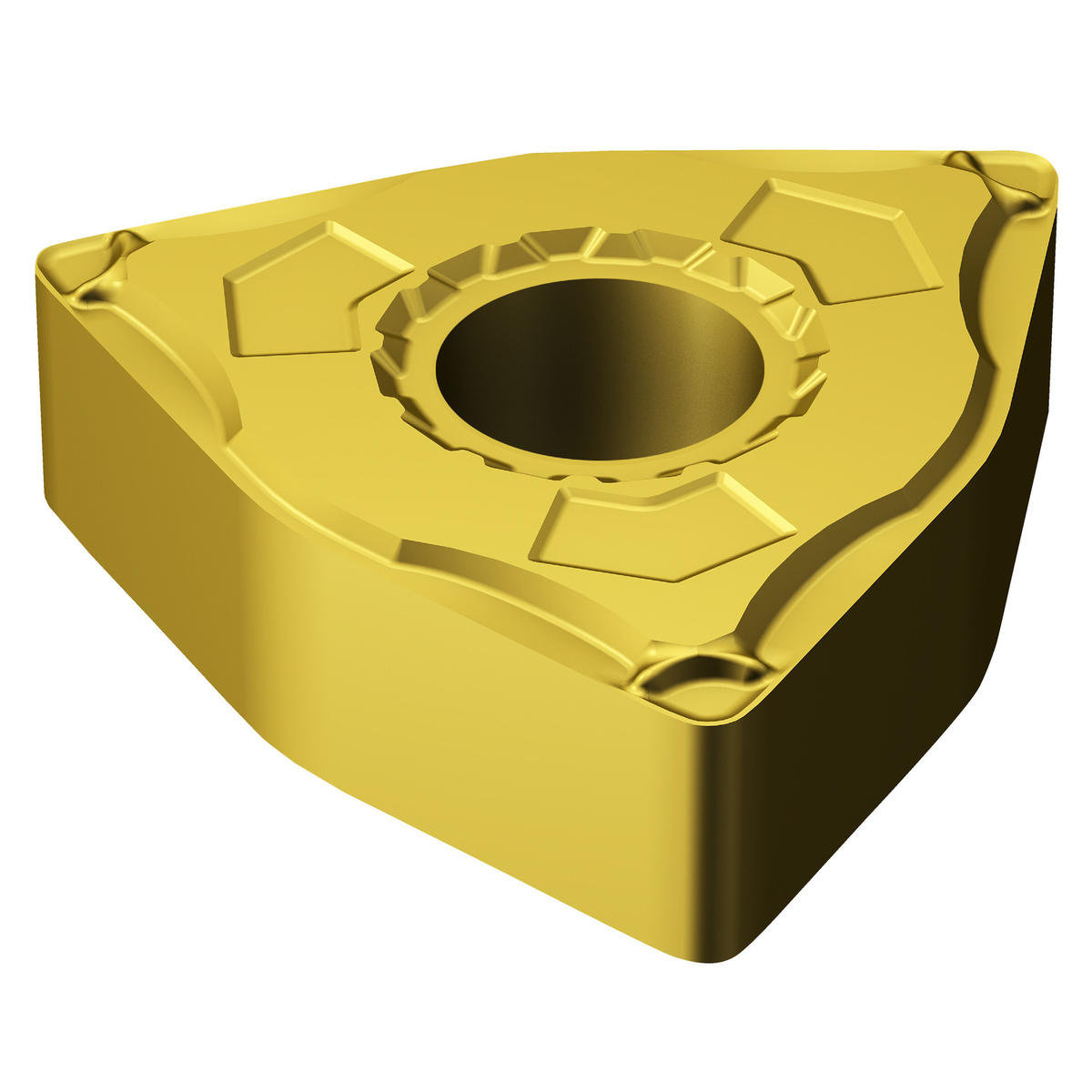

| Short Description | T-Max® P insert for turning |
| Grade | 2025 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 9.53 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 0.23 |
| Length (Metric) | 5.72 |
| Shape | Trigon |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | WL |
| ANSI Code | WNMG 332-WL 2025 |
| ISO Code | WNMG 06 04 08-WL 2025 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.15 |
| Fixing Hole Diameter (Metric) | 3.81 |
| Coating Process Type | CVD |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 6 |
| Major Cutting Edge Angle | 95 degrees |
| Wiper Edge Property | Yes |
| Application | Turning, General |
| ISO Material Classification | M |
| Base Item Number | 1049 |
| Length | 5.72 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.013 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | WNMG |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | WNMG060408-WL2025 |
| Insert Size | 332 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | WNMG 06 04 08-WL 2025 |
| Length Packed Product Imperial | 3.74 inch |
