Sandvik Coromant
5757134

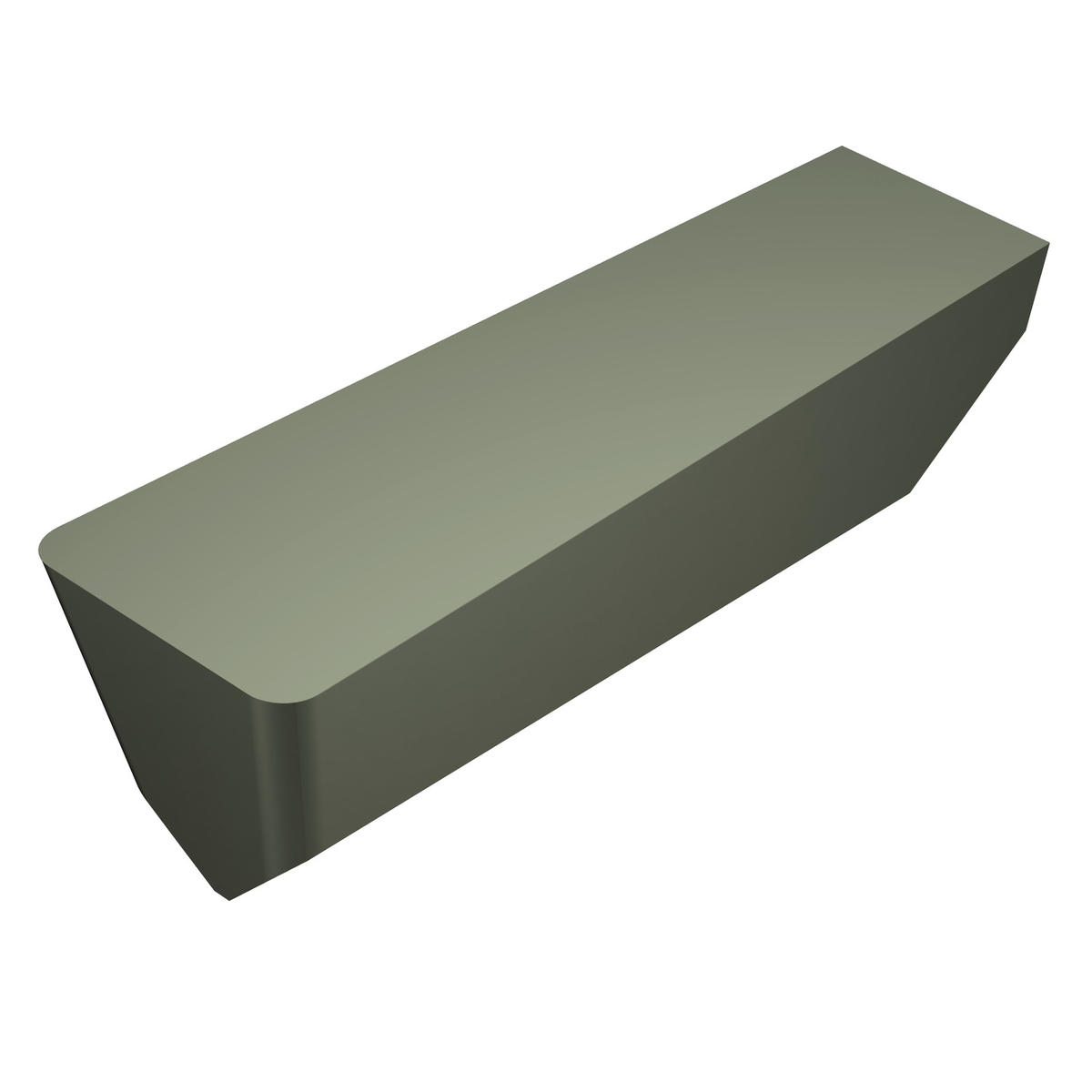

Sandvik Coromant 5757134
Specifications
| Size | 6250 |
|---|---|
| Chip Breaker Type | T |
| Coating/Finish | Uncoated |
| Material | Reinforced AL2O3 Ceramic |
| Base Item Number | 1026 |
| Cutting Width (Inch) | 0.25 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Unit Of Measure | Metric |
| Short Description | T-Max® insert for grooving |
| Series | T-Max |
| Style | CSG |
| Grade | 670 |
| Cutting Width | 6.35 mm |
| Cutting Width (Decimal) | 0.25 |
| Cutting Width (Metric) | 6.35 |
| ANSI Code | CSG-6250-2T0320 670 |
| ISO Code | 150.23 0635 08T01020670 |
| Insert Seat Size Code | 3 |
| Hand of Insert | Neutral |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Ceramic |
| Number of Cutting Edges | 1 |
| Clearance Angle Major | 11 degrees |
| Machine Side Body Angle | 0 degrees |
| Corner Radius Left (Decimal) | 0.03 |
| Corner Radius Left (Metric) | 0.79 |
| Corner Radius Right (Decimal) | 0.03 |
| Corner Radius Right (Metric) | 0.79 |
| Corner Radius Lower Tolerance (Decimal) | -0.003937 |
| Corner Radius Lower Tolerance (Metric) | -0.1 |
| Corner Radius Upper Tolerance (Decimal) | 0.003937 |
| Corner Radius Upper Tolerance (Metric) | 0.1 |
| Cutting Width Lower Tolerance (Decimal) | -0.000984 |
| Cutting Width Lower Tolerance (Metric) | -0.03 |
| Cutting Width Upper Tolerance (Decimal) | 0.000984 |
| Cutting Width Upper Tolerance (Metric) | 0.03 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | SH |
| Country of Origin | Japan |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | CSG |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | 150.23063508T01020670 |
| Insert Size | 6250 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 150.23 0635 08T01020670 |
| Length Packed Product Imperial | 3.74 inch |
