Sandvik Coromant
5757169

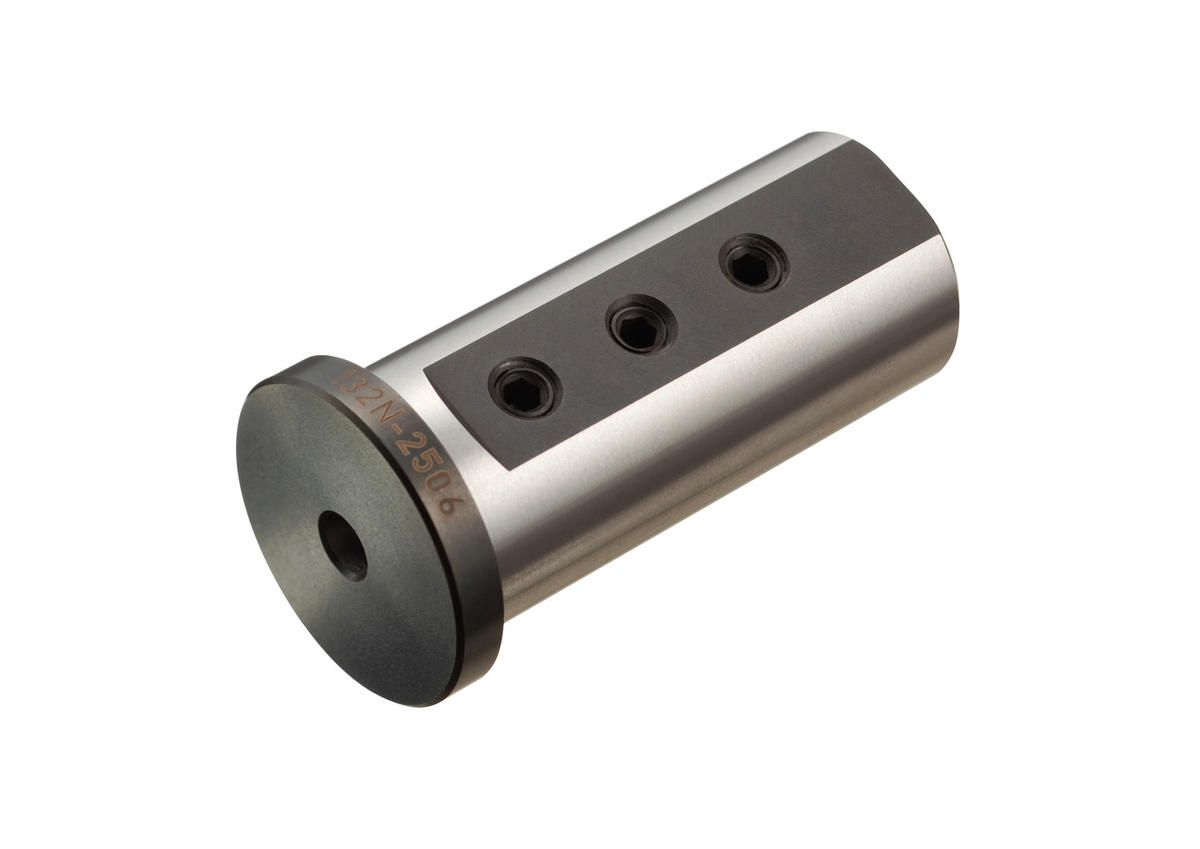

Sandvik Coromant 5757169
Specifications
| Type | Cylindrical Sleeve |
|---|---|
| Inside Diameter (Metric) | 16 |
| Overall Length (Inch) | 2.4 |
| Inside Diameter (Inch) | 0.63 |
| Overall Length (Metric) | 61 |
| Outside Diameter (Metric) | 25 |
| Outside Diameter (Inch) | 0.98 |
| Short Description | Cylindrical sleeve |
| Unit Of Measure | Metric |
| Inside Diameter | 16 mm |
| Outside Diameter | 25 mm |
| Head Diameter | 31 mm |
| Coolant Through | Yes |
| Head Diameter (Decimal) | 1.22 |
| Head Diameter (Metric) | 31 |
| ANSI Code | 132N-2516 |
| Shank Diameter (Metric) | 25 |
| Shank Type | Cylindrical with 3 Flats |
| Body Length (Decimal) | 0.20 |
| Body Length (Metric) | 5 |
| Clamping Length (Decimal) | 2.4 |
| Clamping Length (Metric) | 61 |
| Functional Length (Decimal) | 0.2 |
| Functional Length (Metric) | 5 |
| Body Half Taper Angle | 0 degrees |
| Coolant Pressure (Bar) | 20 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 1: Axial Concentric Exit |
| Location Aid Property | No |
| Sealing Property | No |
| Country of Origin | Germany |
| Base Item Number | 2099 |
| Body Length (Inch) | 0.2 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.322 LB |
