Sandvik Coromant
5757650
Sandvik Coromant 5757650
Specifications
| Insert Style | 266LG |
|---|---|
| Material | WC or Cermet |
| Coating/Finish | TiN |

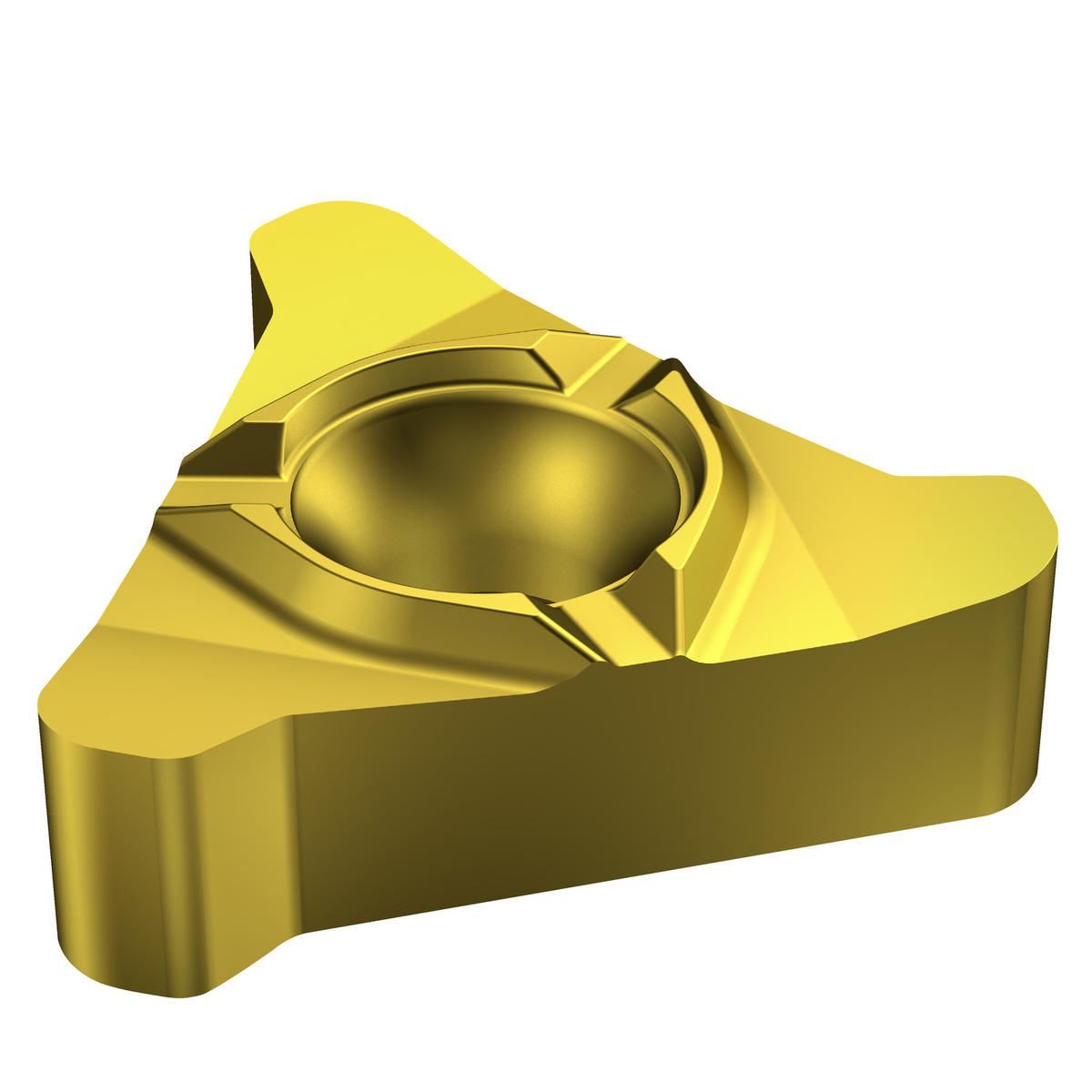

| Short Description | CoroThread® 266 insert for thread turning |
| Unit Of Measure | Metric |
| Grade | 1020 |
| Series | CoroThread 266 |
| Size | 22 |
| Thread Type | External |
| Thread Form | TP30 |
| Thread Pitch | 5 mm |
| Inscribed Circle Diameter | 12.7 mm |
| Thread Profile Type | Full |
| Thickness | 5.56 mm |
| Chip Breaker Type | F |
| Thread Pitch (Decimal) | 0.2 |
| Thread Pitch (Metric) | 5 |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Thickness (Decimal) | 0.22 |
| Thickness (Metric) | 5.56 |
| ANSI Code | 266LG-22TR01F500E 1020 |
| ISO Code | 266LG-22TR01F500E 1020 |
| Hand of Insert | Left |
| Fixing Hole Diameter (Decimal) | 0.22 |
| Fixing Hole Diameter (Metric) | 5.7 |
| Coating Process Type | PVD |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Thread Tolerance Class | IT 7 |
| Spot Chamfer (Decimal) | 0.07 |
| Spot Chamfer (Metric) | 1.7 |
| Theoretical Thread Height (Decimal) | 0.24 |
| Theoretical Thread Height (Metric) | 6.01 |
| Thread Height Difference (Decimal) | 0.125 |
| Thread Height Difference (Metric) | 3.18 |
| Profile Distance EX (Decimal) | 0.083 |
| Profile Distance EX (Metric) | 2.1 |
| Profile Distance EY (Decimal) | 0.054 |
| Profile Distance EY (Metric) | 1.38 |
| Application | Turning, Threading |
| ISO Material Classification | PMKNSH |
| Country of Origin | Sweden |
| Base Item Number | 1187 |
| number of Teeth | 1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.026 LB |
| Height Packed Product Metric | 13.5 mm |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | 266LG-22TR01F500E1020 |
| Insert Size | 22 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 266LG-22TR01F500E 1020 |
| Length Packed Product Imperial | 5.079 inch |
