Sandvik Coromant
5757726

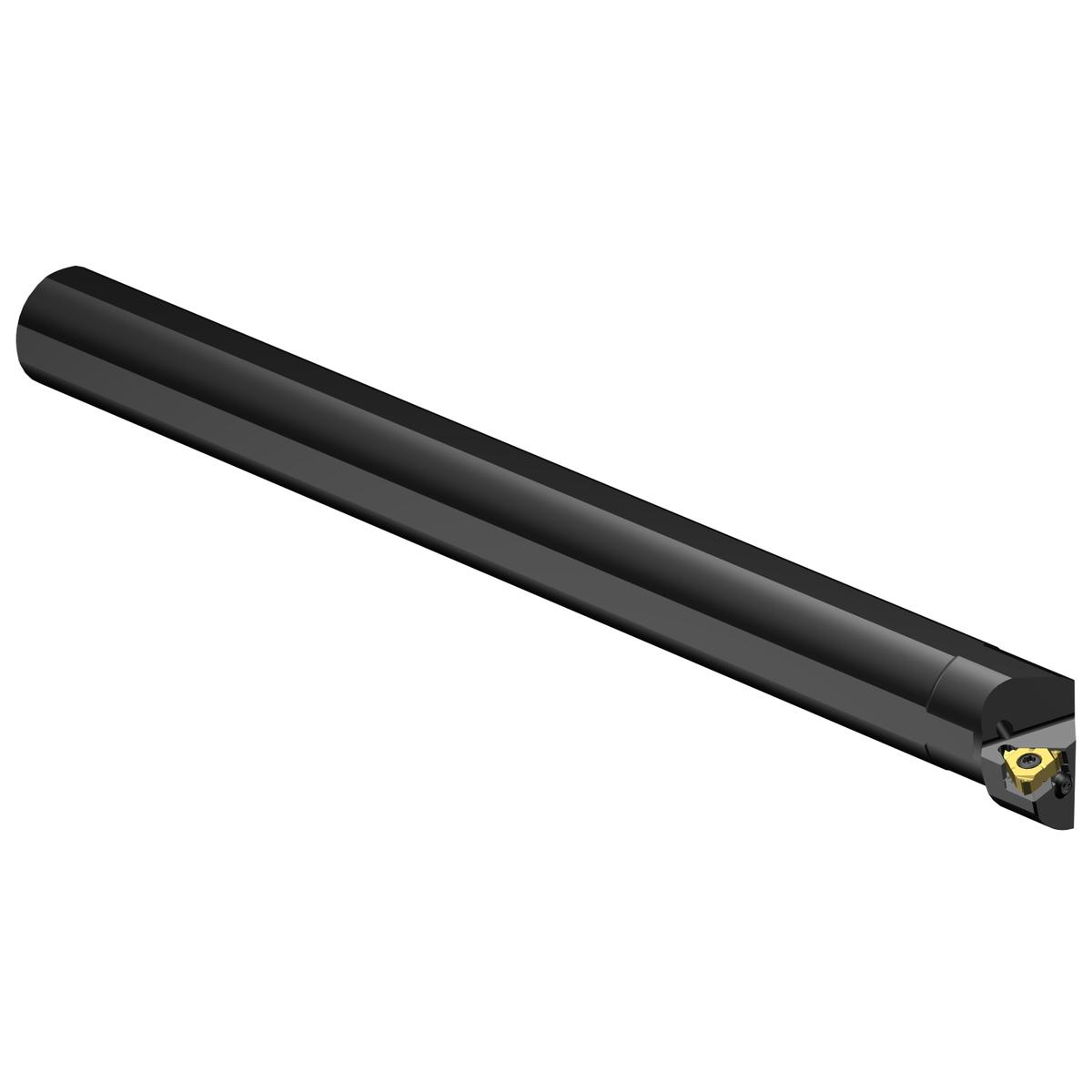

Sandvik Coromant 5757726
Specifications
| Minimum Bore Diameter (Metric) | 40.13 |
|---|---|
| Minimum Bore Diameter (Inch) | 1.58 |
| Shank Diameter (Metric) | 31.75 |
| Direction Of Hand | Left |
| Overall Length (Metric) | 355.6 |
| Shank Diameter (Inch) | 1.25 |
| Overall Length (Inch) | 14 |
| Short Description | CoroThread® 266 boring bar for thread turning |
| Unit Of Measure | Imperial |
| Series | CoroThread 266 |
| Shank Height (Metric) | 30 |
| Shank Height (Decimal) | 1.18 |
| Overall Length | 14 Inch |
| Shank Diameter | 1.25 Inch |
| Coolant Through | Yes |
| ANSI Code | 266LKF-D20-3 |
| Usable Length (Decimal) | 3.75 |
| Usable Length (Metric) | 95.25 |
| Machine Side Body Angle | 0 degrees |
| Axial Clearance Angle | -15 degrees |
| Body Diameter (Decimal) | 1.25 |
| Body Diameter (Metric) | 31.75 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 0.87 |
| Overall Width (Metric) | 22 |
| Clamping Type Code | Screw/Clamp |
| Thread Helix Correction Angle | 1 degrees |
| Torque | 3 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | United States |
| Base Item Number | 1187 |
| Max. Overhang (Decimal) | 3.75 |
| Max. Overhang (Metric) | 95.25 |
| Min Bore Diameter | 1.58 Inch |
| Min. Overhang (Decimal) | 1.22 |
| Min. Overhang (Metric) | 30.99 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 4.319 LB |
| Height Packed Product Metric | 100 mm |
| Height Packed Product Imperial | 3.937 inch |
| ISO Code (packed) | 266LKF-D20-3 |
| Length Packed Product Metric | 270 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 266LKF-D20-3 |
| Length Packed Product Imperial | 10.63 inch |
