Sandvik Coromant
5758725

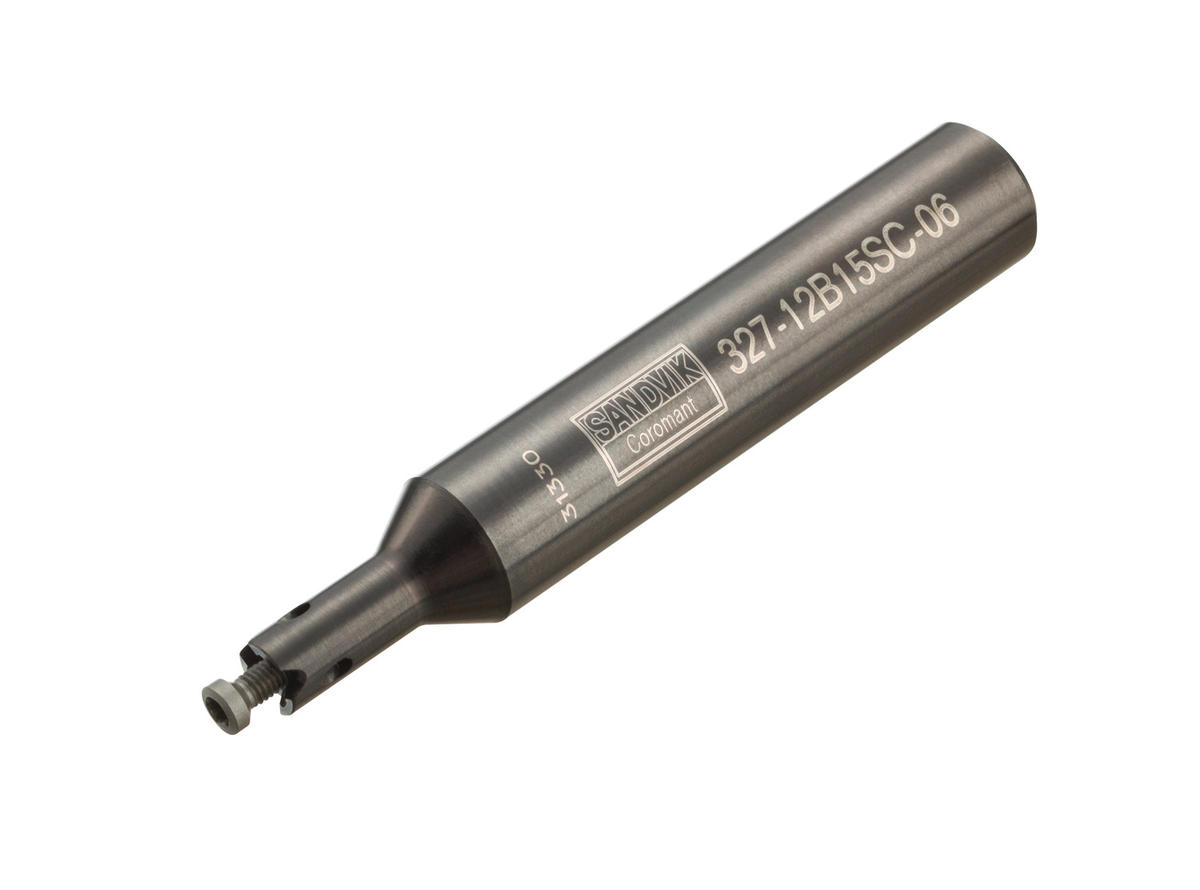

Sandvik Coromant 5758725
Specifications
| Shank Diameter (Metric) | 12 |
|---|---|
| Material | Carbide |
| Shank Diameter (Inch) | 0.47 |
| Shank Type | Weldon |
| Series | CoroMill 327 |
| Short Description | Weldon to CoroMill® 327 adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 12 mm |
| Overall Length | 76.5 mm |
| Overall Length (Decimal) | 3.01 |
| Overall Length (Metric) | 76.5 |
| ANSI Code | 327-12B21EC-06 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 0.24 |
| Body Diameter (Metric) | 6 |
| Body Length (Decimal) | 0.69 |
| Body Length (Metric) | 17.5 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 1.328 |
| Torque (NM) | 1.8 |
| Coolant Pressure (Bar) | 20 |
| Coolant Entry Style Code | 1: axial concentric entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | WE; ISO3338-2 |
| Balanced by Design | No |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Austria |
| Base Item Number | 1018 |
| Body Length (Inch) | 0.69 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 40000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.295 LB |
