Sandvik Coromant
5758743
Sandvik Coromant 5758743
Specifications
| Overall Length (Inch) | 4.92 |
|---|---|
| Overall Length (Metric) | 125 |
| Max. Cutting Depth (Decimal) | 0.16 |
| Max. Cutting Depth (Metric) | 4 |

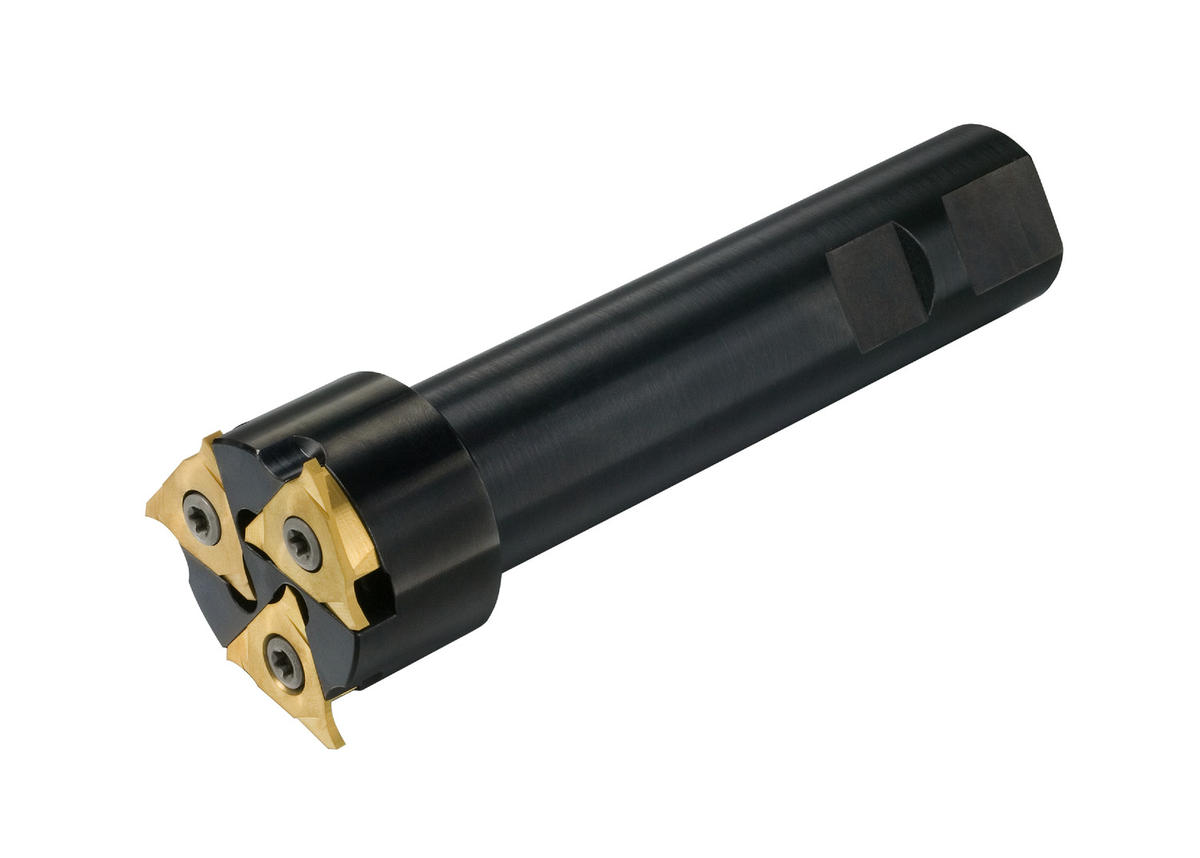

| Short Description | CoroMill® 328 groove milling cutter |
| Coolant Through | No |
| Number Of Inserts | 3 |
| Hole Diameter | 25 mm |
| Shank Diameter | 25 mm |
| Shank Type | Weldon |
| Torque (NM) | 6.5 |
| Body Diameter (Metric) | 34 |
| Cutting Edge Count | 3 |
| Standard Letter | WE |
| Shank Diameter (Metric) | 25 |
| Standard Number | ISO3338-2 |
| ANSI Code | 328-044B25-13M |
| Body Length (Decimal) | 2.72 |
| Height Packed Product Metric | 50 mm |
| Height Packed Product Imperial | 1.969 inch |
| ISO Code (packed) | 328-044B25-13M |
| Direction Of Hand | Right |
| Cutting Width (Decimal) | 0.05 |
| Cutting Diameter (Decimal) | 1.73 |
| Length Packed Product Metric | 129 mm |
| Max. Cutting Depth | 4 mm |
| Series | CoroMill 328 |
| Cutting Diameter | 44 mm |
| Coolant Entry Style Code | 0: Without Coolant |
| Life Cycle State | 20 |
| Cutting Width (Metric) | 1.30 |
| Hole Diameter (Decimal) | 0.98 |
| Body Length (Metric) | 69 |
| Cutting Width | 1.3 mm |
| ISO Code (unpacked) | 328-044B25-13M |
| Body Diameter (Decimal) | 1.34 |
| Max. Rotational Speed | 17100 1/min |
| Torque (ft lbf) | 4.794 |
| Hole Diameter (Metric) | 25 |
| Length Packed Product Imperial | 5.079 inch |
| Cutting Diameter (Metric) | 44 |
