Sandvik Coromant
5758762
Sandvik Coromant 5758762
Specifications
| Overall Length (Inch) | 0.55 |
|---|---|
| Overall Length (Metric) | 14 |
| Max. Cutting Depth (Decimal) | 0.20 |
| Max. Cutting Depth (Metric) | 5 |

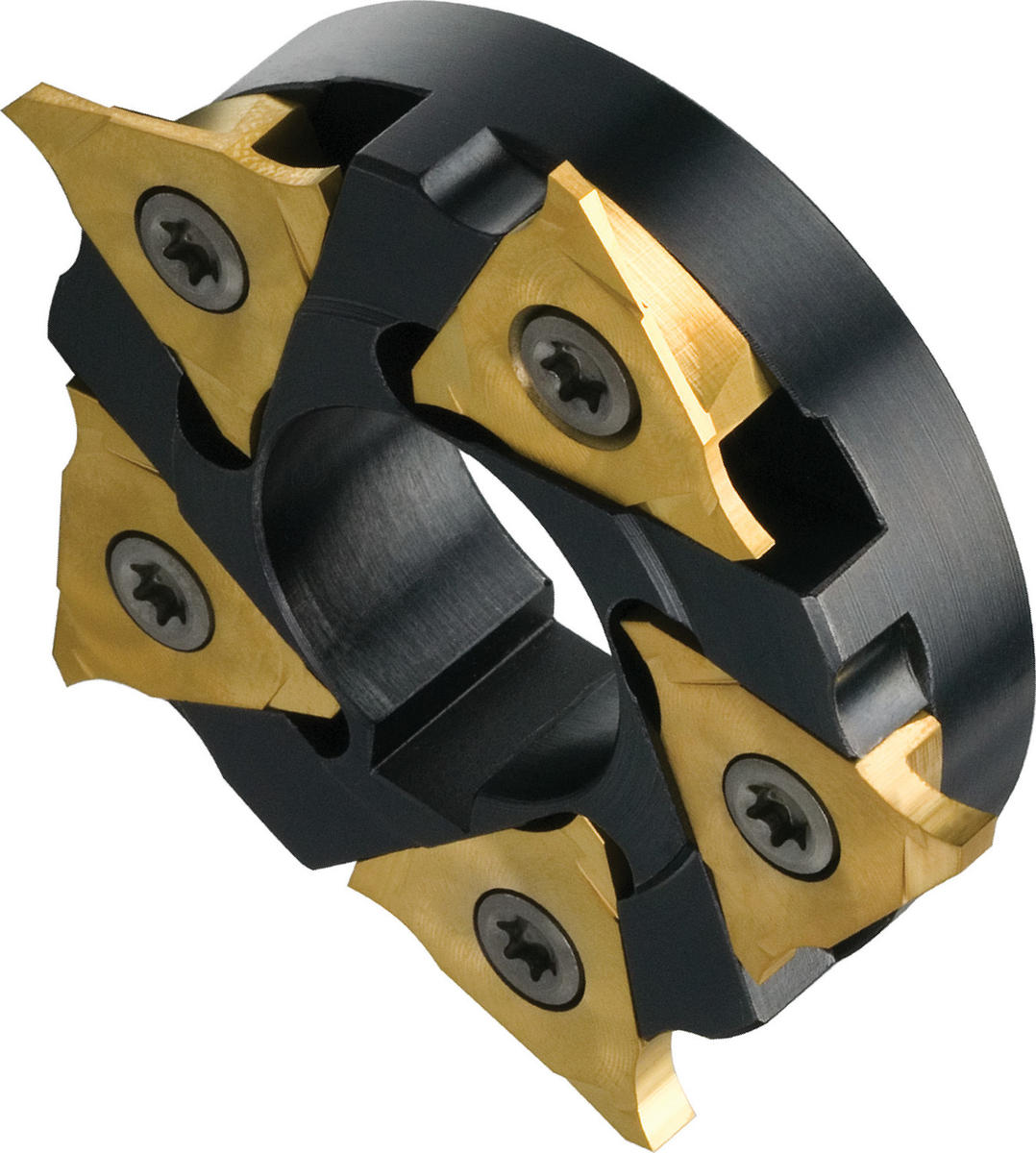

| Short Description | CoroMill® 328 groove milling cutter |
| Coolant Through | No |
| Number Of Inserts | 5 |
| Hole Diameter | 22 mm |
| Torque (NM) | 6.5 |
| Body Diameter (Metric) | 51 |
| Cutting Edge Count | 5 |
| ANSI Code | 328-063S22-13M |
| Body Length (Decimal) | 0.55 |
| Height Packed Product Metric | 73 mm |
| Height Packed Product Imperial | 2.874 inch |
| ISO Code (packed) | 328-063S22-13M |
| Direction Of Hand | Neutral |
| Cutting Width (Decimal) | 0.05 |
| Cutting Diameter (Decimal) | 2.48 |
| Length Packed Product Metric | 189 mm |
| Max. Cutting Depth | 5 mm |
| Series | CoroMill 328 |
| Cutting Diameter | 63 mm |
| Coolant Entry Style Code | 0: Without Coolant |
| Life Cycle State | 20 |
| Cutting Width (Metric) | 1.30 |
| Hole Diameter (Decimal) | 0.87 |
| Body Length (Metric) | 14 |
| Cutting Width | 1.3 mm |
| ISO Code (unpacked) | 328-063S22-13M |
| Body Diameter (Decimal) | 2.01 |
| Hub Diameter (Metric) | 51 |
| Max. Rotational Speed | 11900 1/min |
| Torque (ft lbf) | 4.794 |
| Hole Diameter (Metric) | 22 |
| Drive Count | 1 |
| Length Packed Product Imperial | 7.441 inch |
| Hub Diameter (Decimal) | 2.01 |
| Cutting Diameter (Metric) | 63 |
