Sandvik Coromant
5764378

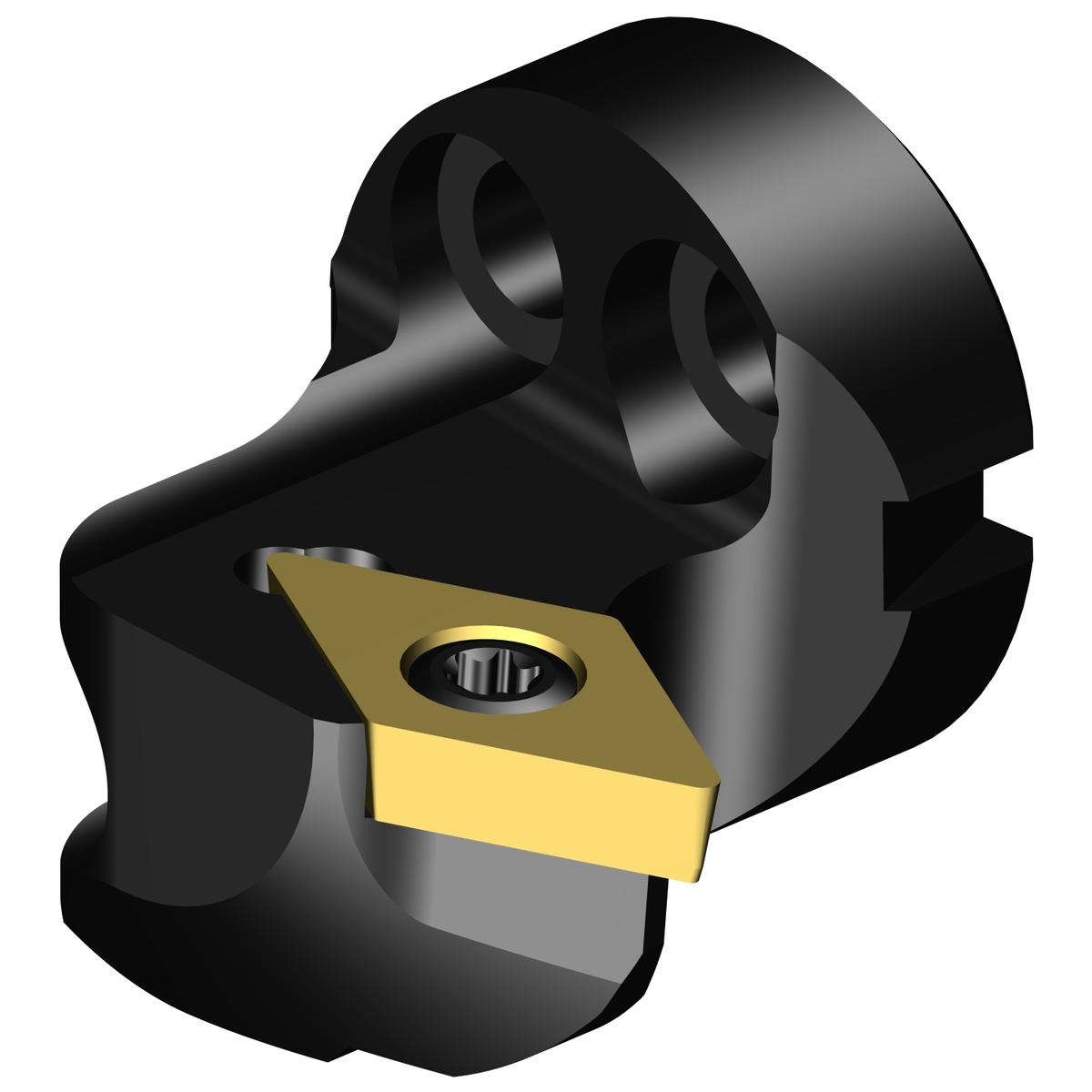

Sandvik Coromant 5764378
Specifications
| Center to Cutting Edge (Inch) | 0.51 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 0.87 |
| Size | 16 |
| Series | CoroTurn 107 |
| Bore Diameter (Metric) | 22 |
| Center to Cutting Edge (Metric) | 13 |
| Short Description | CoroTurn® 107 head for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 13 mm |
| Insert Style | DCMT 070204 |
| ANSI Code | 570-SDXCR-16-07-E |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 0.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -6 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Tool Cutting Edge Angle | 62.5 degrees |
| Tool Lead Angle | 27.5 degrees |
| Protruding Length (Decimal) | 0.74 |
| Protruding Length (Metric) | 18.8 |
| Coolant Entry Style Code | 8: Decentral Over Slots On The Shank |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Norway |
| Base Item Number | 1053 |
| Max. Hole Depth | 15 mm |
| Max. Hole Depth (Decimal) | 0.59 |
| Max. Hole Depth (Metric) | 15 |
| Max. Overhang (Decimal) | 0.59 |
| Max. Overhang (Metric) | 15 |
| Maximum Ramping Angle | 60 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.029 LB |
| Height Packed Product Metric | 40 mm |
| Height Packed Product Imperial | 1.575 inch |
| ISO Code (packed) | 570-SDXCR-16-07-E |
| Length Packed Product Metric | 78 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 570-SDXCR-16-07-E |
| Length Packed Product Imperial | 3.071 inch |
