Sandvik Coromant
5764382

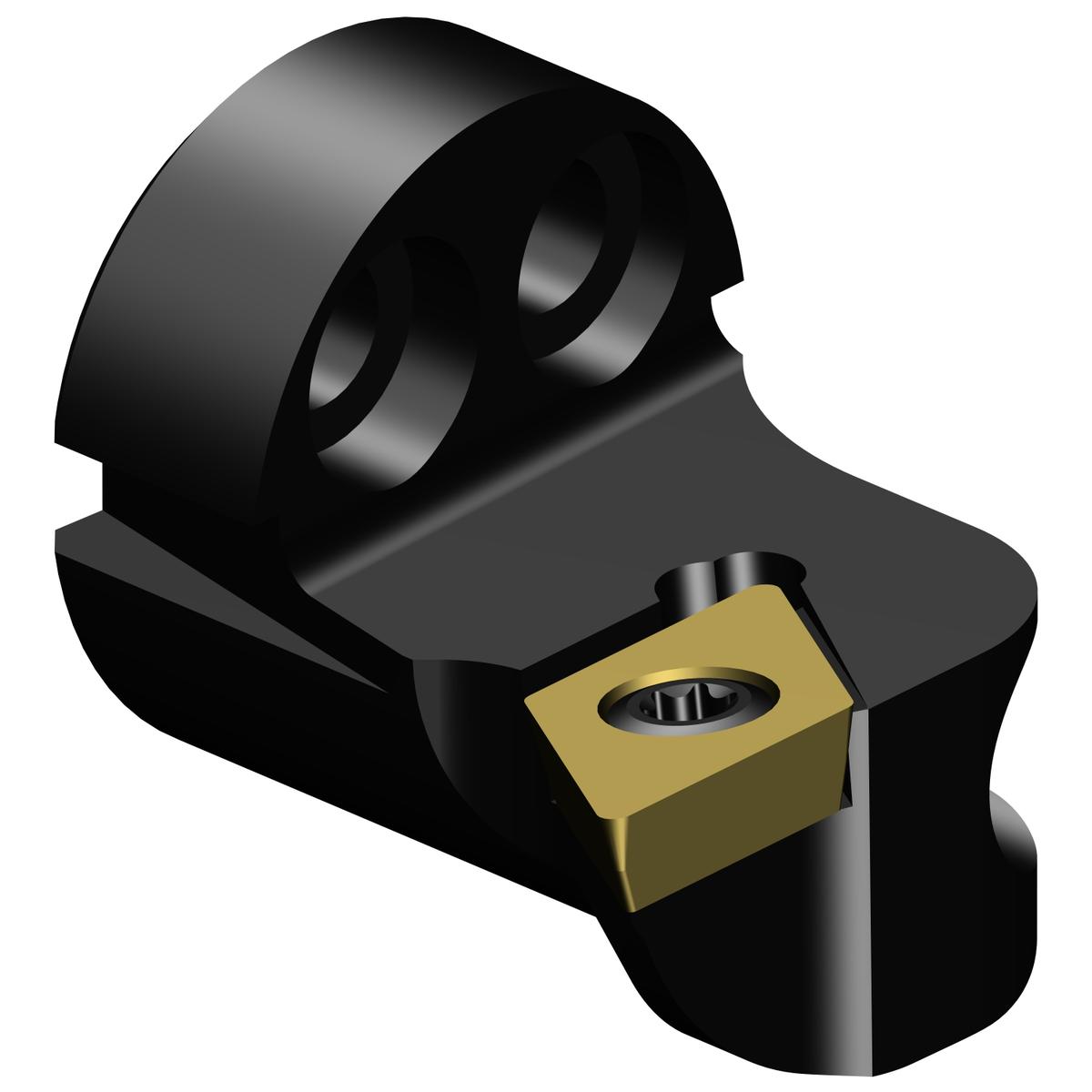

Sandvik Coromant 5764382
Specifications
| Center to Cutting Edge (Inch) | 0.43 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 0.79 |
| Size | 16 |
| Series | CoroTurn 111 |
| Bore Diameter (Metric) | 20 |
| Center to Cutting Edge (Metric) | 11 |
| Short Description | CoroTurn® 111 head for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 11 mm |
| Insert Style | DPMT 070204 |
| ANSI Code | 570-SDUPL-16-07 |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 145.038 lbf/in2 |
| Torque | 0.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -1 degrees |
| Orthogonal Rake Angle | 6 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Tool Lead Angle | -3 degrees |
| Coolant Entry Style Code | 8: Decentral Over Slots On The Shank |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Norway |
| Base Item Number | 1054 |
| Max. Hole Depth | 20 mm |
| Max. Hole Depth (Decimal) | 0.79 |
| Max. Hole Depth (Metric) | 20 |
| Max. Overhang (Decimal) | 0.79 |
| Max. Overhang (Metric) | 20 |
| Maximum Ramping Angle | 27 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.029 LB |
| Height Packed Product Metric | 42 mm |
| Height Packed Product Imperial | 1.654 inch |
| ISO Code (packed) | 570-SDUPL-16-07 |
| Length Packed Product Metric | 78 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 570-SDUPL-16-07 |
| Length Packed Product Imperial | 3.071 inch |
| EAN Code | 11375814 |
