Sandvik Coromant
5764446
Sandvik Coromant 5764446
Specifications
| Center to Cutting Edge (Inch) | 1.22 |
|---|---|
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 5.71 |
| Size | 25 |
| Series | CoroCut 1-2 |
| Bore Diameter (Metric) | 145 |
| Center to Cutting Edge (Metric) | 30.85 |

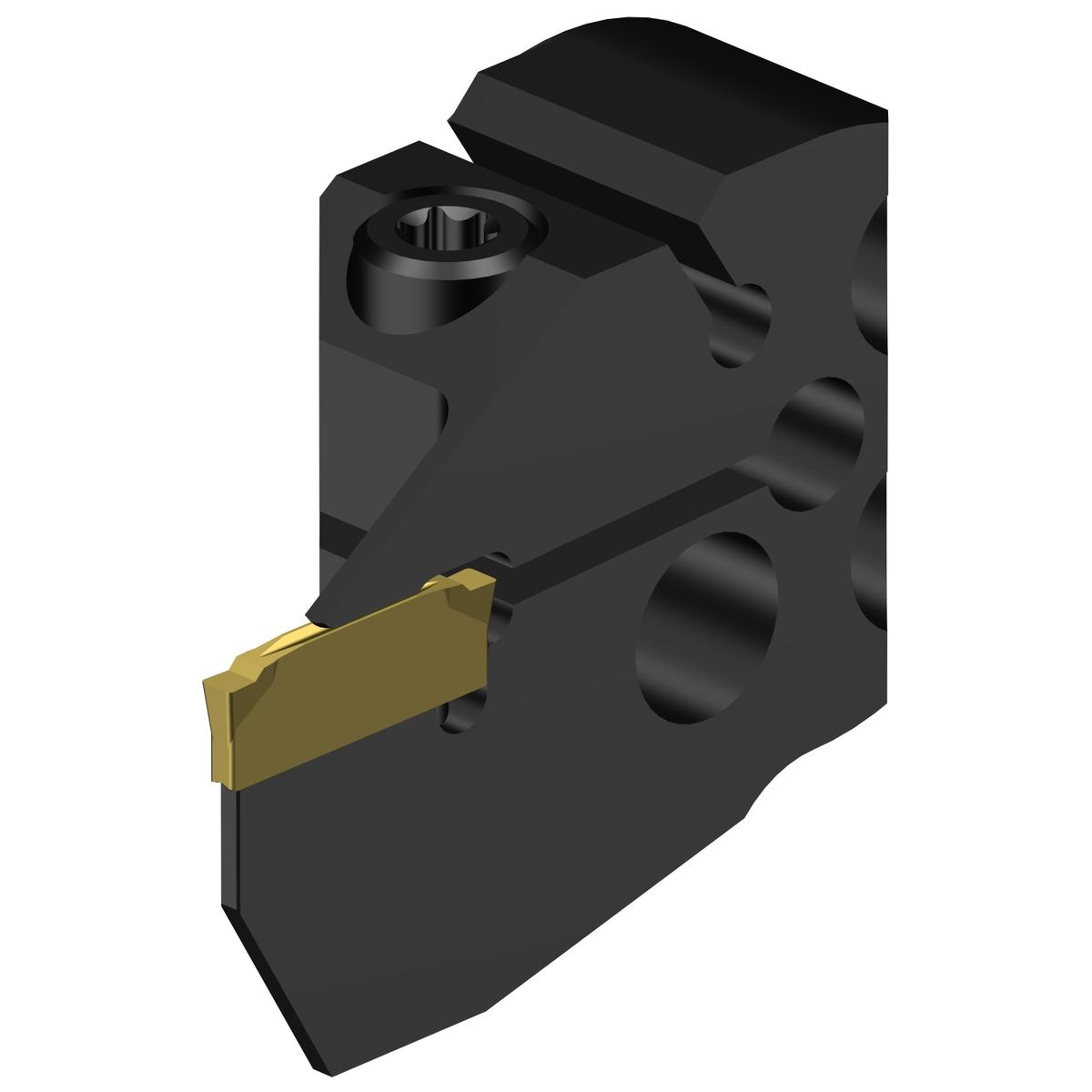

| Short Description | CoroCutĀ® 1-2 head for grooving |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 30.85 mm |
| Insert Style | N123D2-CM |
| ANSI Code | 570-25L123D12B |
| Connection Diameter (Decimal) | 0.98 |
| Connection Diameter (Metric) | 25 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 2 Nm |
| Workpiece Side Body Angle | 90 degrees |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 5: Axial Inclined Exit With Nozzle, Adjustable |
| Insert Seat Size Code | D |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Cutting Depth (Decimal) | 0.47 |
| Max. Cutting Depth (Metric) | 12 |
| Max. Hole Depth | 14 mm |
| Max. Hole Depth (Decimal) | 0.55 |
| Max. Hole Depth (Metric) | 14 |
| Max. Overhang (Decimal) | 0.52 |
| Max. Overhang (Metric) | 13.25 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.148 LB |
| Height Packed Product Metric | 40 mm |
| Height Packed Product Imperial | 1.575 inch |
| ISO Code (packed) | 570-25L123D12B |
| Length Packed Product Metric | 90 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | 570-25L123D12B |
| Length Packed Product Imperial | 3.543 inch |
