Sandvik Coromant
5764715

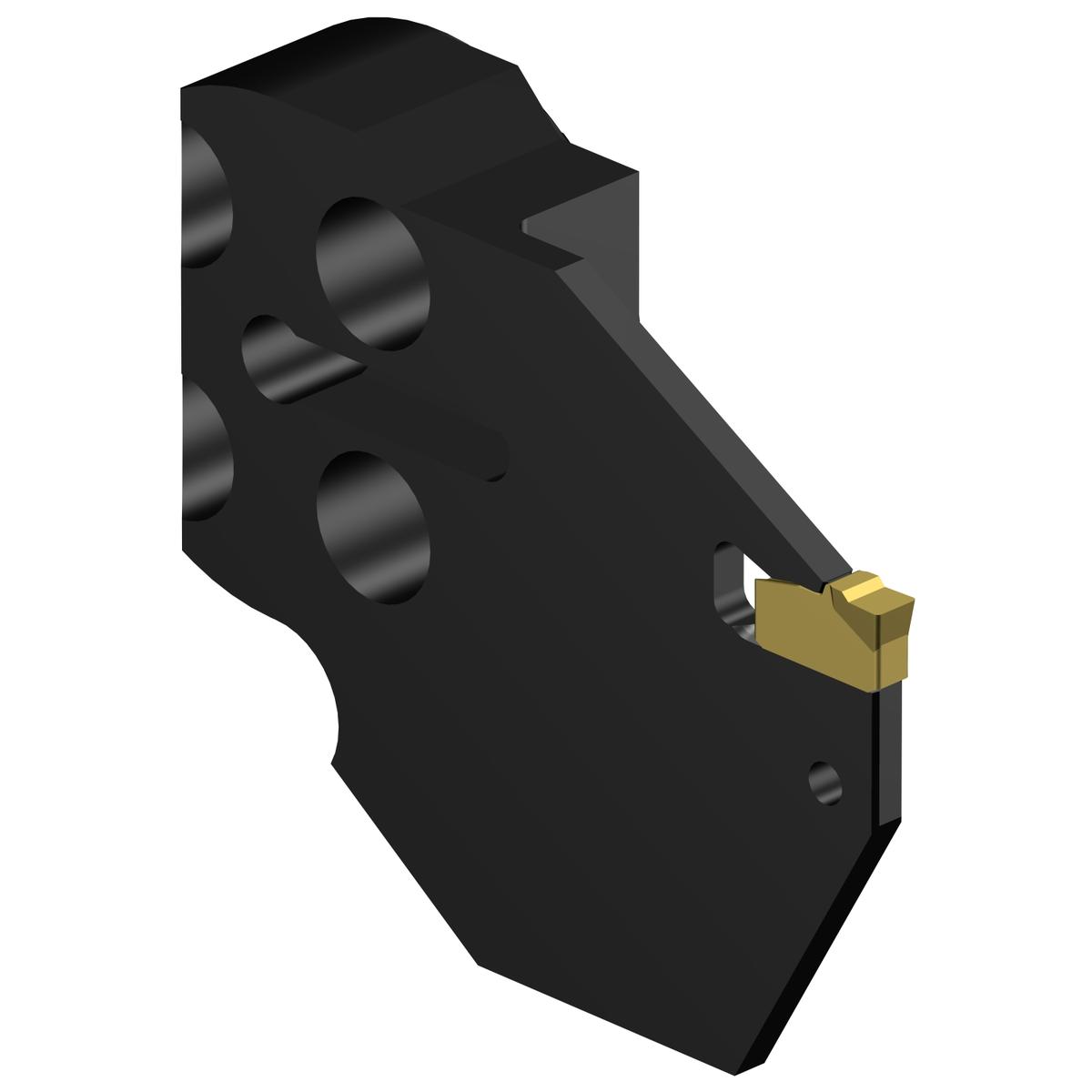

Sandvik Coromant 5764715
Specifications
| Center to Cutting Edge (Inch) | 1.87 |
|---|---|
| Coolant Fed | Yes |
| Size | 32 |
| Series | T-Max Q-Cut |
| Center to Cutting Edge (Metric) | 47.6 |
| Short Description | T-Max® Q-Cut head for grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 47.6 mm |
| Insert Style | N151.2-300-5E |
| ANSI Code | 570-32R151.21-30-30 |
| Connection Diameter (Decimal) | 1.26 |
| Connection Diameter (Metric) | 32 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 145.038 lbf/in2 |
| Workpiece Side Body Angle | 90 degrees |
| Body Diameter (Decimal) | 1.26 |
| Body Diameter (Metric) | 32 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 2: Radial Exit |
| Insert Seat Size Code | 30 |
| Country of Origin | Sweden |
| Base Item Number | 1060 |
| Max. Cutting Depth (Decimal) | 1.18 |
| Max. Cutting Depth (Metric) | 30 |
| Max. Hole Depth | 14 mm |
| Max. Hole Depth (Decimal) | 0.55 |
| Max. Hole Depth (Metric) | 14 |
| Max. Overhang (Decimal) | 0.55 |
| Max. Overhang (Metric) | 14 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.19 LB |
| Height Packed Product Metric | 45 mm |
| Height Packed Product Imperial | 1.772 inch |
| ISO Code (packed) | 570-32R151.21-30-30 |
| Length Packed Product Metric | 88 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 570-32R151.21-30-30 |
| Length Packed Product Imperial | 3.465 inch |
