Sandvik Coromant
5764872

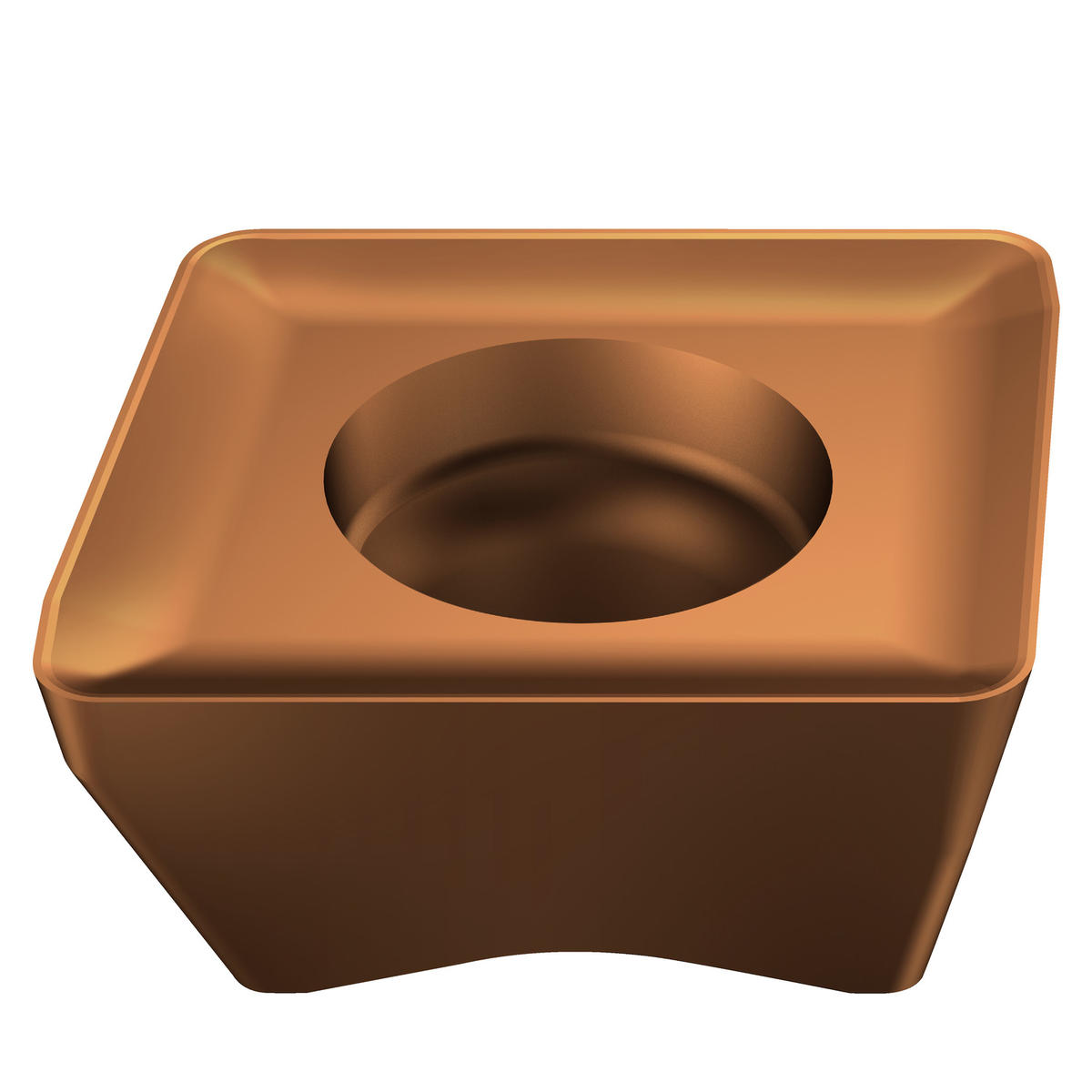

Sandvik Coromant 5764872
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiAlN |
| Thickness (Metric) | 5.2 |
| Thickness (Inch) | 0.21 |
| Short Description | CoroMill® 690 insert for milling |
| Style | 690 |
| Unit Of Measure | Metric |
| Width (Decimal) | 0.39 |
| Country of Origin | Sweden |
| Series | CoroMill 690 |
| Size | 1005 |
| Grade | 1030 |
| Thickness | 5.2 mm |
| Chip Breaker Type | SL |
| Length (Decimal) | 0.39 |
| ANSI Code | 690-100531M-E-SL 1030 |
| ISO Code | 690-100531M-E-SL 1030 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.12 |
| Coner Radius (Metric) | 3.1 |
| Fixing Hole Diameter (Decimal) | 0.18 |
| Fixing Hole Diameter (Metric) | 4.5 |
| Coating Process Type | PVD |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.04 |
| Wiper Edge Length (Metric) | 1 |
| Major Cutting Edge Angle | 90 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Application | Milling, General |
| ISO Material Classification | S |
| Base Item Number | 2008 |
| Insert Size | 1005 |
| Length | 10 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.009 LB |
| Width | 10 mm |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | 690 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | 690-100531M-E-SL1030 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 690-100531M-E-SL 1030 |
| Length Packed Product Imperial | 3.74 inch |
