Sandvik Coromant
5764916

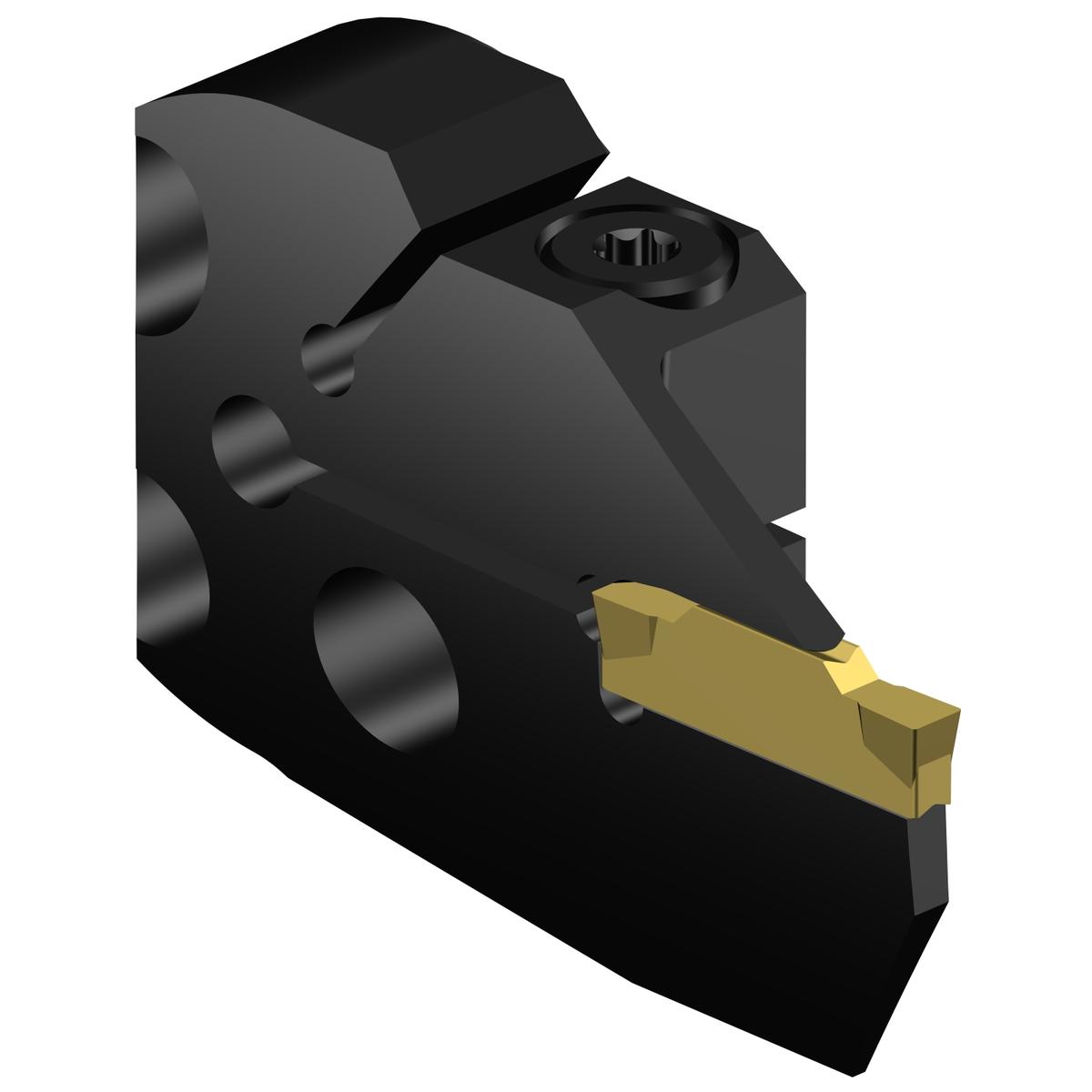

Sandvik Coromant 5764916
Specifications
| Center to Cutting Edge (Inch) | 1.62 |
|---|---|
| Coolant Fed | Yes |
| Size | 32 |
| Series | CoroCut 1-2 |
| Center to Cutting Edge (Metric) | 41.1 |
| Short Description | CoroCutĀ® 1-2 head for face grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 41.1 mm |
| Insert Style | N123G2-0300-0003-TF |
| ANSI Code | 570-32R123G18B130A |
| Connection Diameter (Decimal) | 1.26 |
| Connection Diameter (Metric) | 32 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 580.151 lbf/in2 |
| Torque | 3 Nm |
| Workpiece Side Body Angle | 90 degrees |
| Overall Height (Decimal) | 0.004 |
| Overall Height (Metric) | 0.1 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 2: Radial Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 11.81 |
| Max. Axial Groove Outside Diameter (Metric) | 300 |
| Max. Cutting Depth (Decimal) | 0.71 |
| Max. Cutting Depth (Metric) | 18 |
| Max. Hole Depth | 14 mm |
| Max. Hole Depth (Decimal) | 0.55 |
| Max. Hole Depth (Metric) | 14 |
| Max. Overhang (Decimal) | 0.49 |
| Max. Overhang (Metric) | 12.5 |
| Min. Axial Groove Inside Diameter (Decimal) | 5.12 |
| Min. Axial Groove Inside Diameter (Metric) | 130 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.256 LB |
| Height Packed Product Metric | 48 mm |
| Height Packed Product Imperial | 1.89 inch |
| ISO Code (packed) | 570-32R123G18B130A |
| Length Packed Product Metric | 80 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 570-32R123G18B130A |
| Length Packed Product Imperial | 3.15 inch |
