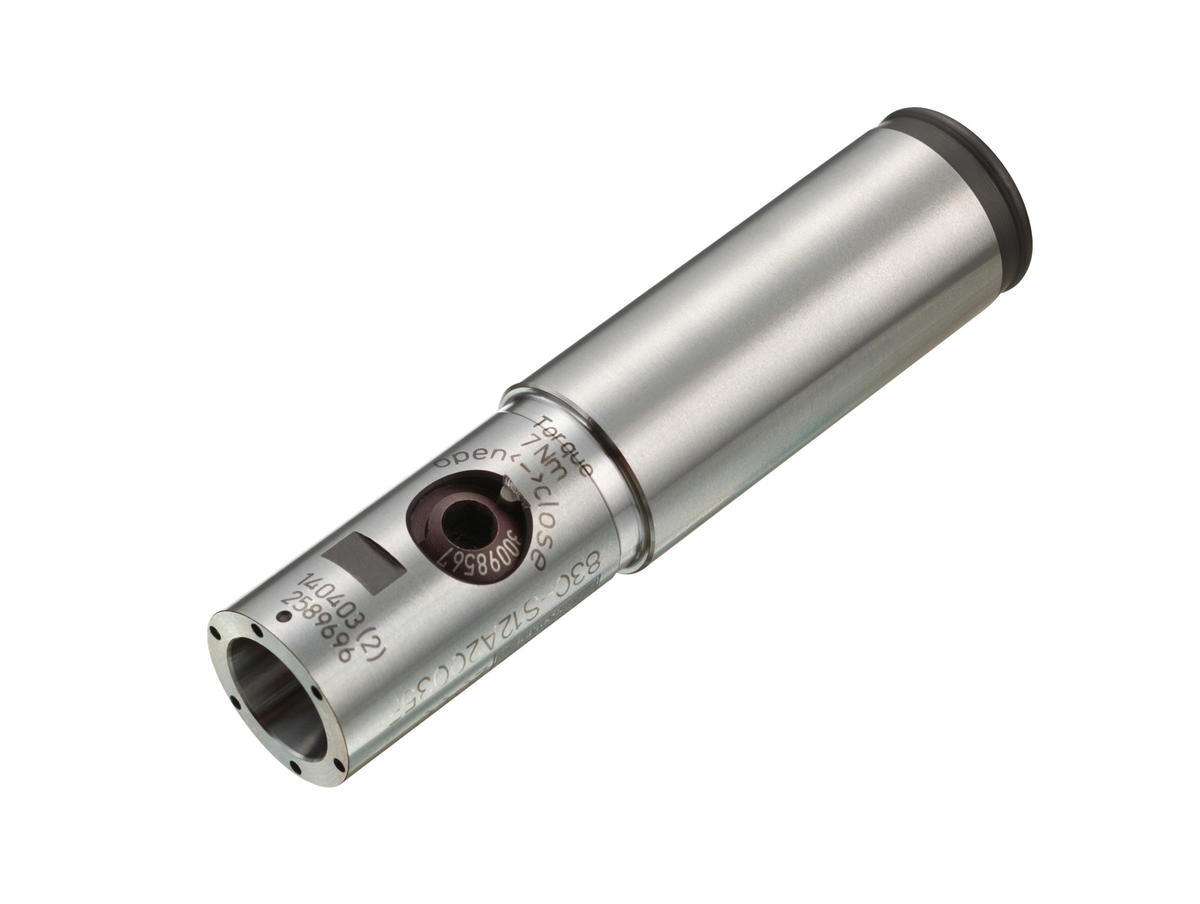

Sandvik Coromant
5765218
Sandvik Coromant 5765218
Specifications
| Shank Diameter (Metric) | 20 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 0.79 |
| Shank Type | Cylindrical |
| Series | CoroReamer 830 |
| Short Description | Cylindrical shank to CoroReamer™ 830 adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 20 mm |
| Overall Length | 119.5 mm |
| Overall Length (Decimal) | 4.71 |
| Overall Length (Metric) | 119.5 |
| ANSI Code | 830-S14A20070F |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 0.81 |
| Body Diameter (Metric) | 20.5 |
| Body Length (Decimal) | 4.71 |
| Body Length (Metric) | 119.5 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 5.163 |
| Torque (NM) | 7 |
| Coolant Pressure (Bar) | 100 |
| Coolant Entry Style Code | 1: axial concentric entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Balanced by Design | No |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 1115 |
| Body Length (Inch) | 4.71 |
| Coolant Pressure (lbf/in2) | 1450.38 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 50000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.686 LB |
